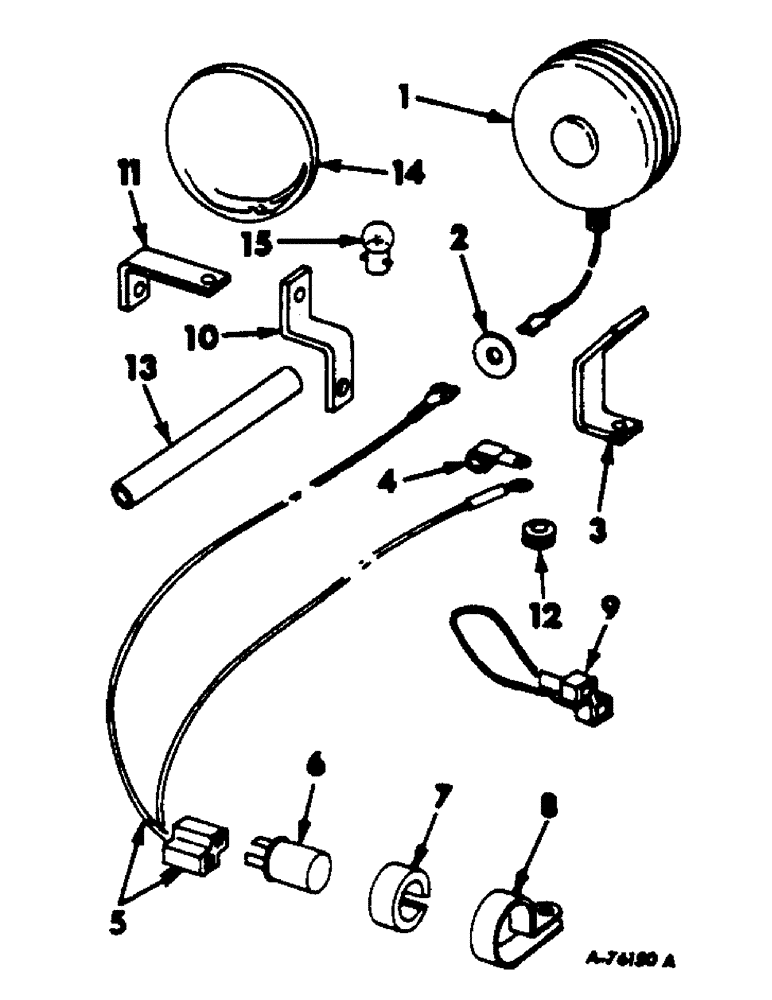

Запчасти Case IH 303 (226) - FLASHER LIGHT, STANDARD, SERIAL NO. 11764, AND ABOVE ATTACHMENT NO. 11763 AND BELOW (55) - ELECTRICAL SYSTEMS

1

394129R91

LIGHT

ASSY, flasher

1шт.

120371

NUT,1/2"-20, G5

1шт.

2

394262R1

WASHER

flasher light

1шт.

3

561915R1

BRACKET

flasher light jumper

1шт.

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

WASHER, 5/16 C-Z med lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z med lock

1шт.

4

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP

1шт.

4

362127R1

CLIP

2шт.

5

155146C91

CABLE ASSY, flasher light

1шт.

6

394132R91

FLASHER UNIT

FLASHER ASSY

1шт.

7

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

8

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

9

394473R91

CABLE ASSY, flashing warning light jumper, Used to provide a means of omitting flashing feature of the warning light

1шт.

10

158746C1

BRACE, flasher light, For operators cab

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

NOT USED

1шт.

12

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

plain no. 5 diagonal cut, Used in operator platform

1шт.

12

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

1/4 rubber

1шт.

12

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

3/8 rubber, Used in operators cab

1шт.

13

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, light pivot

1шт.

14

396585R1

LENS

warning light amber

1шт.

14

397442R1

LENS, warning light red

1шт.

15

947866

LAMP, no. 1156

1шт.
