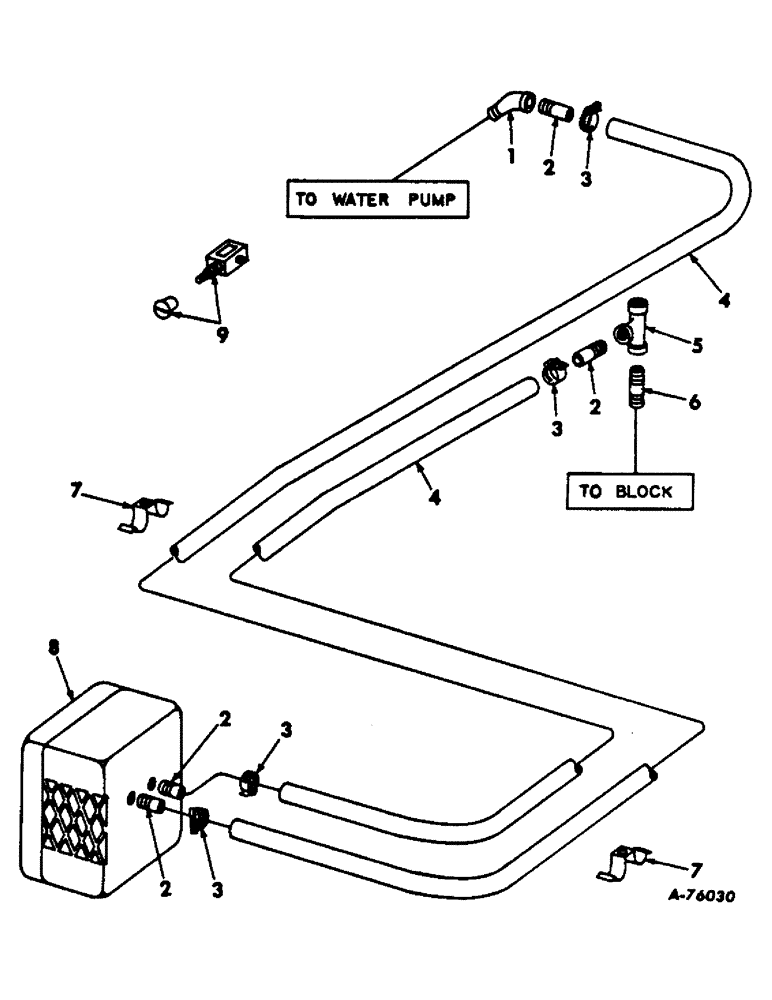

Запчасти Case IH 303 (255) - OPERATORS CAB HEATER (50) - CAB CLIMATE CONTROL

1

120702

ELBOW,45 Degree, 3/8" NPT Street

45 deg street

1шт.

2

574631R1

FITTING

NIPPLE, heater hose

4шт.

3

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, heater hose

4шт.

4

634654R1

HOSE, heater

2шт.

5

120280

TEE,3/8" NPT, Fem

3/8 pipe

1шт.

6

144601

NIPPLE, 3/8 pipe

1шт.

7

574522R1

CLIP, heater hose

2шт.

1/4 x 3/4 mach bolt w/nut

2шт.

1/4 lockwasher

2шт.

136661H

WASHER

17/64 x 1 x 16 ga washer

2шт.

8

634389R91

HEATER ASSY, Allen, Includes ref. no. 9

1шт.

8

936197R91

HEATER ASSY, Perfection, For components see list of parts under details of heater, Perfection

1шт.

1/4 x 1/2 mach bolt w/nut

3шт.

1/4 lockwasher

3шт.

9

975263R91

SWITCH ASSY, heater, Perfection, For use with 936197R91 heater

1шт.

1/4 x 3/4 hex-hd mach bolt w/nut

2шт.

1/4 lockwasher

2шт.

36661H

17/64 x 1 x 16 ga washer

2шт.

9

937574R91

SWITCH

ASSY, heater, Perfection

1шт.
