Запчасти Case IH 303 (250) - OPERATORS CAB, AIR CONDITIONING (50) - CAB CLIMATE CONTROL

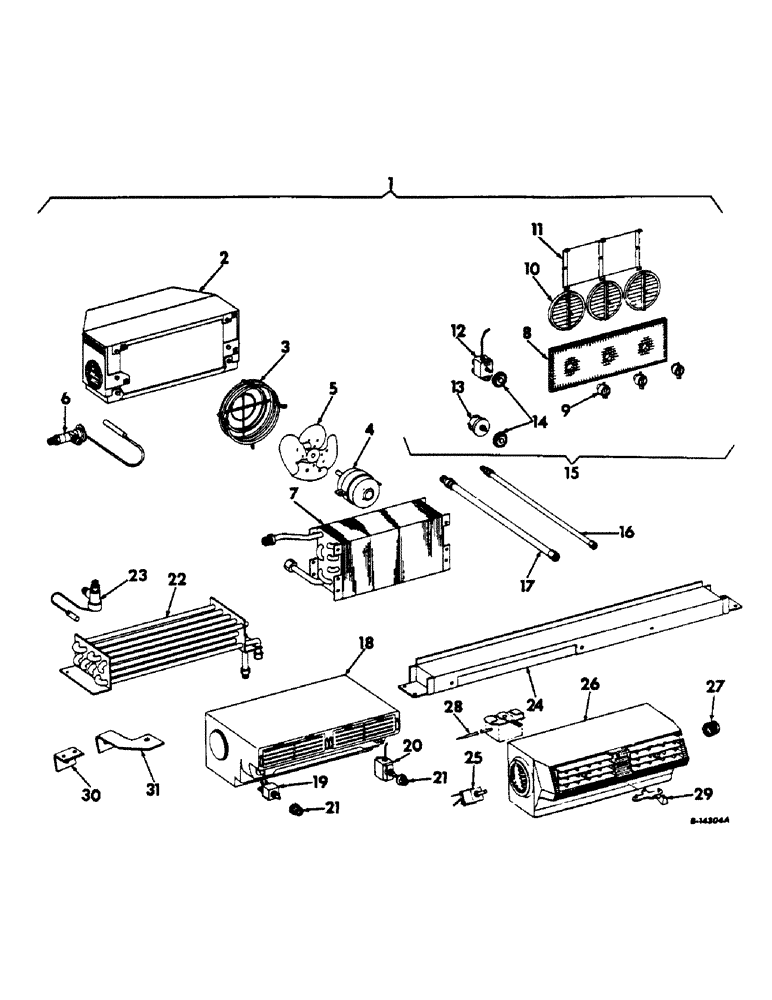

Схема запчастей Case IH 303 - (250) - OPERATORS CAB, AIR CONDITIONING (50) - CAB CLIMATE CONTROL
17
4
26
23
28
13
3
29
15
31
22
20
11
27
16
9
14
2
25
10
12
21
5
21
8
6
18
1
24
30
19
7

Артикул

Название

Примечание

Количество

1

634770R91

EVAPORATOR ASSY, air conditioning, Includes ref. nos. 2 and 15, Serial no. 4806 & below

1шт.

1

571479R91

KIT EVAPORATOR, Serial no. 4806 & below, Consists of

1шт.

BOLT

1шт.

CONNECTOR BOLT

1шт.

HOSE

1шт.

NUT

1шт.

TERMINAL LOOP

1шт.

WASHER

1шт.

WIRE

1шт.

2

634391R91

CASE ASSY, evaporator, Includes ref. nos. 3, 4, 5, 6 and 7, Serial no. 4806 & below

1шт.

3

571488R91

GUARD ASSY, pan, Serial no. 4806 & below

1шт.

4

571480R91

MOTOR ASSY, fan, Serial no. 4806 & below

1шт.

5

571489R91

BLADE ASSY, fan, Serial no. 4806 & below

1шт.

142650

AUGER,1/2" - 13 x 2 3/4", Drilled

No. 10-32 x 1/4 hdless cup-pt set screw

1шт.

5

571489R91

BLADE ASSY, fan, Serial no. 4806 & below

1шт.

142650

AUGER,1/2" - 13 x 2 3/4", Drilled

No. 10-32 x 1/4 hdless cup-pt set screw

1шт.

6

571487R91

VALVE ASSY, expansion, serial no. 4806 & below

1шт.

7

634390R91

COIL ASSY, evaporator, Serial no. 4806 & below

1шт.

8

571490R1

GRILLE, evaporator face panel, Serial no. 4806 & below

1шт.

9

571481R91

KNOB ASSY, air deflector, Serial no. 4806 & below

1шт.

10

571483R91

DEFLECTOR ASSY, air, Serial no. 4806 & below

3шт.

11

571482R1

RETAINER, air deflector, Serial no. 4806 & below

3шт.

12

571485R91

SWITCH ASSY, thermostatic, Serial no. 4806 & below

1шт.

13

571484R91

SWITCH ASSY, thermostatic, Serial no. 4806 & below

1шт.

14

571486R91

KNOB ASSY, thermostat and blower, Serial no. 4806 & below

1шт.

15

634392R91

FACE PANEL ASSY, evaporator, Consists of ref. nos. 8 thru 14, Serial no. 4806 & below

1шт.

16

634620R91

HOSE ASSY, evaporator to pressure tube, Serial no. 9427 & below

1шт.

17

634621R91

HOSE ASSY, evaporator to suction tube, Serial no. 9427 & below

1шт.

18

937899R91

EVAPORATOR ASSY, air condtion, Includes ref. nos. 19 thru 23, Serial no., Serial Range: 4807-7277

1шт.

19

150386C91

SWITCH ASSY, blower, Serial no., Serial Range: 4807-7277

1шт.

20

150385C91

SWITCH ASSY, thermostat, Serial no., Serial Range: 4807-7277

1шт.

21

150383C91

KNOB, control, Serial no., Serial Range: 4807-7277

1шт.

22

150382C91

CORE ASSY, evaporator, Serial no., Serial Range: 4807-9427

1шт.

23

150384C91

VALVE ASSY, expansion, Serial no. 7277

1шт.

24

937898R1

HEADER, air conditioning, Serial no., Serial Range: 4807-7277

1шт.

24

151690C91

HEADER ASSY, air conditioning unit, Serial no., Serial Range: 7278-9427

1шт.

25

153615C91

SWITCH ASSY, blower motor, Serial no., Serial Range: 4807-9427

1шт.

26

151691C91

EVAPORATOR ASSY, air conditioning, Includes ref. nos. 22, 23, 25, 26, 28 and 29, Also blower wheels, 150388C91 and 150389C91, Serial no., Serial Range: 4807-9427

1шт.

27

153616C91

KNOB AND DECAL ASSY, Serial no., Serial Range: 4807-9427

1шт.

28

153613C91

SWITCH ASSY, thermostat, Serial no., Serial Range: 4807-9427

1шт.

29

153614C91

ARM, thermostat switch, Serial no., Serial Range: 4807-9427

1шт.

30

NOT USED

1шт.

31

151462C1

BRACKET, condenser rear

1шт.

150387C91

WHEEL ASSY, blower LH, Serial no., Serial Range: 4807-7277

1шт.

150389C91

WHEEL ASSY, blower LH, Serial no., Serial Range: 4807-7277

1шт.

150388C91

WHEEL ASSY, blower RH, Serial no., Serial Range: 4807-7277

1шт.

46893H

CONNECTION

CONNECTOR, wire, Serial no., Serial Range: 7278-9427

1шт.

567895R2

CLIP, wire, Serial no., Serial Range: 7278-9427

1шт.

Выбрано товаров: 48
