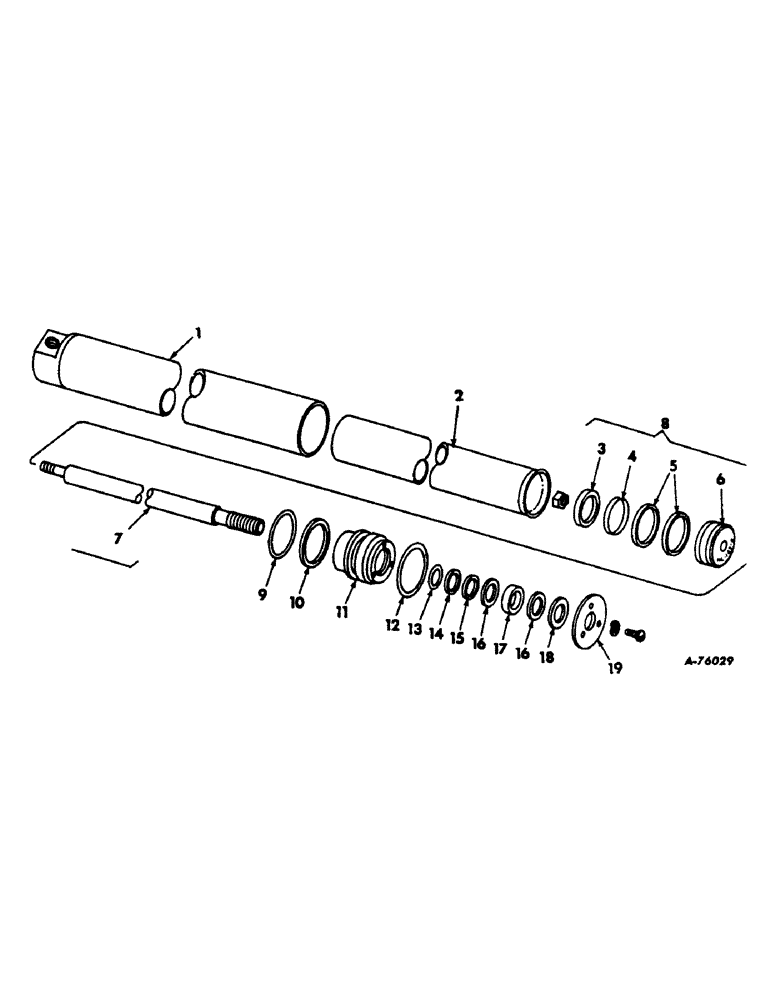

Запчасти Case IH 303 (189) - HYDROSTATIC STEERING CYLINDER, ROSS GEAR, SERIAL NO. 7278 AND ABOVE (41) - STEERING

654631R91

CYLINDER AND VALVE ASSY, power steering

1шт.

1

BARREL, cylinder, Order 654631R91 cylinder and valve assy

1шт.

2

NOT SERVICED SEPARATELY

1шт.

3

935764R1

RING

seal

1шт.

4

935760R1

RING

SHIM, piston

1шт.

5

562285R1

RING

piston, 3/8-24UNF nut

2шт.

6

PISTON, Order 150873C91 piston and rod assy, ref. no. 8

1шт.

7

ROD, Order 150873C91 piston and rod assy, ref. no. 8

1шт.

8

150873C91

PISTON AND ROD ASSY, Includes ref. nos. 3 thru 7

1шт.

9

310939R1

O-RING

1шт.

10

935783R1

RING

back up

1шт.

11

935759R91

GLAND, cylinder

1шт.

12

935782R1

RING

lock

1шт.

13

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

14

574068R1

SPACER

RING, backup

1шт.

15

574067R1

RING

retaining

1шт.

16

574066R1

RING

retaining

2шт.

17

566103R91

OIL RESERVOIR

OIL SEAL

1шт.

18

303322R1

SNAP RING,1.00", Int, #100

1шт.

19

935761R1

FLANGE, end plate

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

No. 10 x 1/2 slt-rd-hd mach screw

3шт.

No. 10 lockwasher

3шт.
