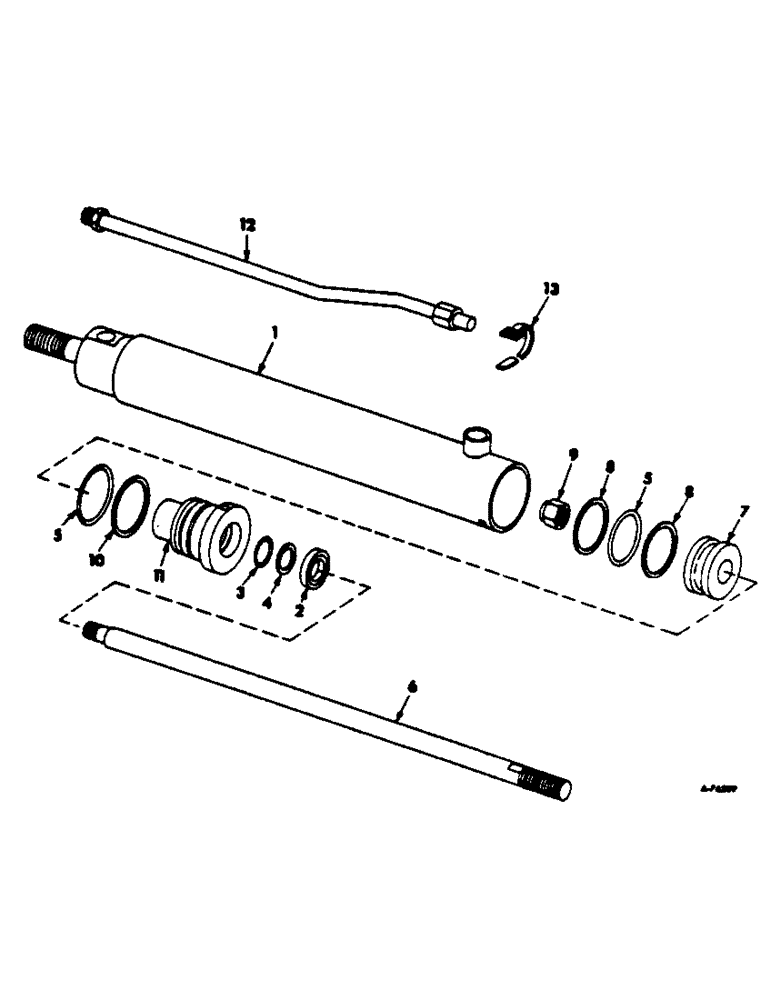

Запчасти Case IH 303 (187) - HYDROSTATIC STEERING, OPTIONAL FOR 654631R91 CYLINDER (41) - STEERING

397689R91

CYLINDER ASSY, power steering

1шт.

1

397690R1

BODY ASSY, hydraulic cylinder

1шт.

2

566103R91

OIL RESERVOIR

SEAL, rod wiper oil

1шт.

3

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 x 3/32

1шт.

4

397695R1

BACK-UP RING

WASHER, back-up

1шт.

5

343909R1

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1-1/2 x 1-3/4 x 1/8

2шт.

6

397696R1

ROD

piston

1шт.

7

397697R1

PISTON

cylinder

1шт.

8

397698R1

BACK-UP RING

WASHER, piston back-up

2шт.

9

9415991

NUT, 7/16-20 hex lock

1шт.

10

388849R1

SPRING

RETAINER, cylinder end

1шт.

11

397694R1

END, cylinder

1шт.

12

159488C91

TUBE

1шт.

13

702093C1

CABLE TIE

CLAMP

1шт.
