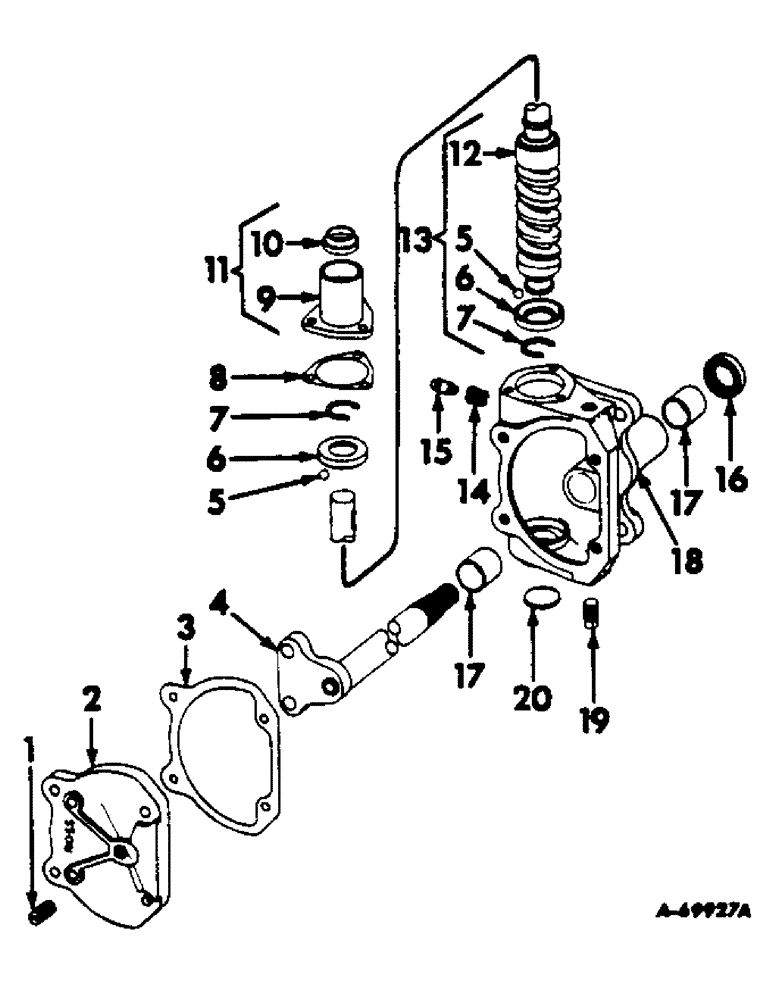

Запчасти Case IH 303 (108) - STEERING, ROSS GEAR, SERIAL NO. 501 TO 1285 AND 2751 TO 7278 (41) - STEERING

627141R91

CASE ASSY, steering gear, Includes ref. nos. 1 thru 13 and 16 thru 20

1шт.

21868

KIT

29/32 x 1-1/2 x 16 ga washer

4шт.

1

50443H

ADJUSTMENT SCREW

adjusting

1шт.

68016H

NUT

lock

1шт.

2

568317R91

COVER W/NUT AND SCREW ASSY, Includes ref. no. 1

1шт.

3

568318R1

GASKET, side cover

1шт.

4

LEVER W/STUD, shaft, Order 627141R91 gear case assy

1шт.

219253

3/4-16NF jam nut

1шт.

3/4 lockwasher

1шт.

5

11115V

BALL

5/16 dia

22шт.

6

90607H

CUP, ball

2шт.

7

568322R1

RING, retaining

2шт.

8

90614H

SHIM, .002 in.

1шт.

8

90615H

SHIM, .003 in.

1шт.

8

90916H

SHIM, .010 in.

1шт.

9

COVER, upper housing, Order 634432R91 cover assy, ref. no. 11

1шт.

10

560237R91

OIL SEAL

1шт.

11

634432R91

COVER W/SEAL ASSY, upper housing

1шт.

5/16 x 3/4 cap screw

3шт.

5/16 x 1 cap screw

4шт.

37564HA

WASHER

21/64 x 9/16 washer

7шт.

12

CAM AND SHAFT, Order 634433R91 cam and shaft assy, ref. no. 13

1шт.

13

634433R91

CAM AND SHAFT ASSY, Includes ref. nos. 5, 6, 7 and 12

1шт.

14

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, steering gear case oil breather reducer

1шт.

15

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

steering gear case

1шт.

16

634431R91

OIL SEAL

1шт.

17

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING

1шт.

18

634430R91

HOUSING, steering gear, Includes ref. nos. 17, 19 and 20

1шт.

19

9617020

PLUG,1/4" - 18 x 0.48"

1/4 Hex Socket

2шт.

20

172558

PLUG,Exp, 1 1/4"

1/4 dia

1шт.
