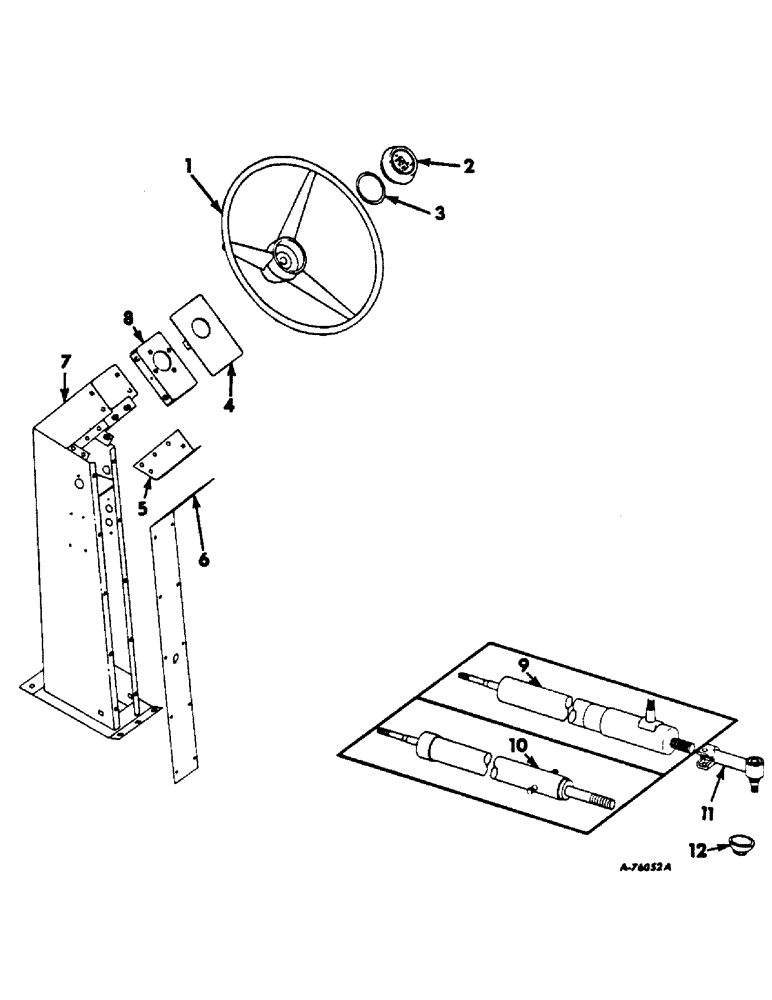

Запчасти Case IH 303 (107) - STEERING, SERIAL NO. 7278 AND ABOVE (41) - STEERING

1

366557R2

STEERING WHEEL

WHEEL, steering

1шт.

2

366566R1

CAP

steering wheel

1шт.

3

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

steering wheel cap

1шт.

4

633074R91

COVER ASSY, steering column top

1шт.

118832

DRIVE BUSHING

No. 10 x 1/2 slt-rd-hd tapping screw

3шт.

5

633492R1

SIDE, steering column removable LH

1шт.

5

633493R1

SIDE, steering column removable RH

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 mach bolt

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

633490R1

BACK, steering column

1шт.

7

938865R91

COLUMN ASSY, steering, Not hydrostatic ground drive

1шт.

7

156044C91

COVER ASSY, steering, For hydrostatic ground drive

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

6шт.

14995R1

BOLT

3/8 x 3/4 crg bolt w/nut

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3/8 x 1 crg bolt w/nut

3шт.

15251R1

3/8 x 4-3/4 crg bolt w/nut

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 mach bolt

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

Q1505

WASHER

13/32 x 1 x 16 ga washer

1шт.

8

633073R11

BRACKET ASSY, steering hand pump

1шт.

9

654631R91

CYLINDER ASSY, steering, For components see list of parts under details of hydraulic steering cylinder

1шт.

10

NOT USED

1шт.

11

159807C91

END

ASSY, steering cylinder rod

1шт.

12

382562R1

SEAL

steering cylinder rod end

2шт.
