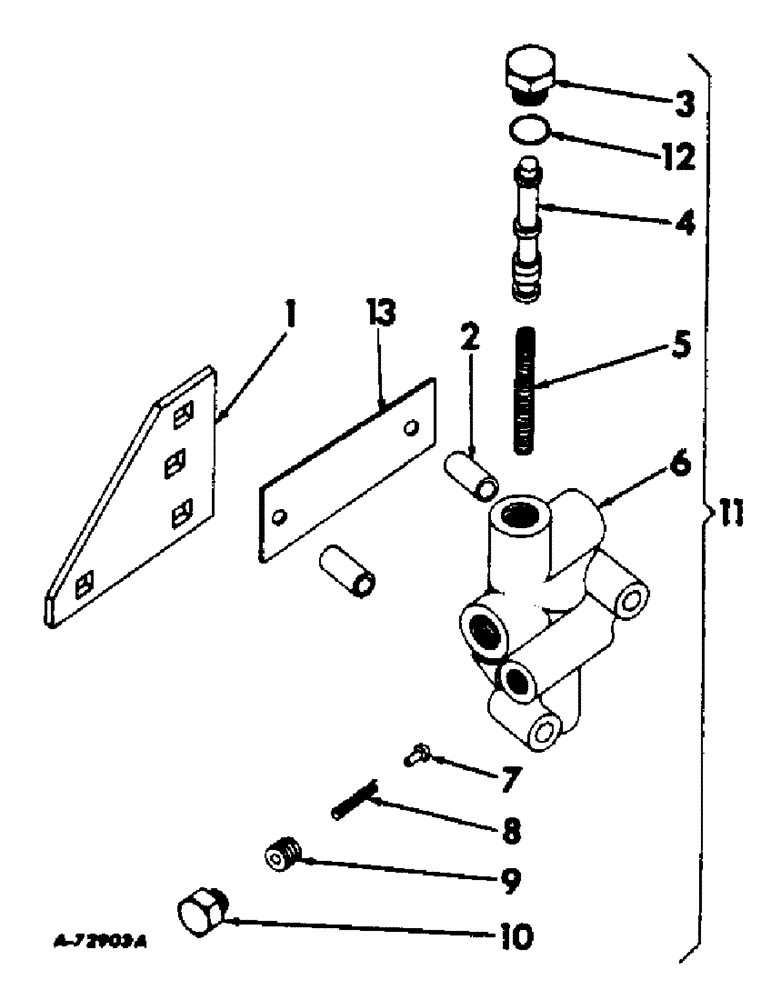

Запчасти Case IH 303 (207) - FLOW DIVIDER, SERIAL NO. 1160 TO 1566 (35) - HYDRAULIC SYSTEMS

1

653903R1

BRACKET, flow divider mount

1шт.

1/4 x 2-3/4 crg bolt w/nut

2шт.

3/8 x 1 crg bolt w/nut

2шт.

3/8 lockwasher

2шт.

1/4 lockwasher

2шт.

2

U13039

SPACER

pipe, flow divider

2шт.

3

570433R1

PLUG, piston flow divider

1шт.

4

570432R1

PISTON, flow divider

1шт.

5

570435R1

SPRING, flow divider

1шт.

6

BODY, flow divider, Order 570830R91 assy, ref. no. 11

1шт.

7

570946R1

VALVE, flow divider

1шт.

8

570949R1

SPRING, flow divider

1шт.

9

9400949

SCREW, adjusting, relief valve

1шт.

10

570947R1

CAP, relief valve adjusting cover

1шт.

11

570830R91

FLOW DIVIDER ASSY, Includes ref. nos. 3 thru 10 and 12

1шт.

1/4 nut

2шт.

1/4-20NC x 2-3/4 cap screw

2шт.

1/4 lockwasher

2шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

piston plug

1шт.

654389R93

PRODUCT GRAPHIC

KIT, product graphics decal, Consists of the following

1шт.

1001615R1

DECAL

DIRECTION, open sieve

1шт.

1001855R2

FILTER

IMPORTANT

1шт.

1001856R3

DIRECTION, oil reservoir

1шт.

2750738R1

GREASE FITTING INDICATOR

10шт.

2751549R1

INSTRUCTION

LUBRICATION INSTRUCTIONS, propulsion sheave

1шт.

2752659R2

INDICATOR

DIRECTION

1шт.

2752660R1

INDICATOR

DIRECTION

1шт.

2753592R1

DECAL

IMPORTANT

1шт.

2753652R1

IMPORTANT

1шт.

2753929R1

DECAL

SAFETY AND OPERATING INSTRUCTIONS

1шт.

2753943R1

DECAL

IMPORTANT

1шт.

2754032R1

PRODUCT GRAPHIC

MODEL NUMBERS

2шт.

2754033R1

MODEL NUMBERS

1шт.

2754145R1

SHIFTING UNIT

SHIFT PATTERN

1шт.
