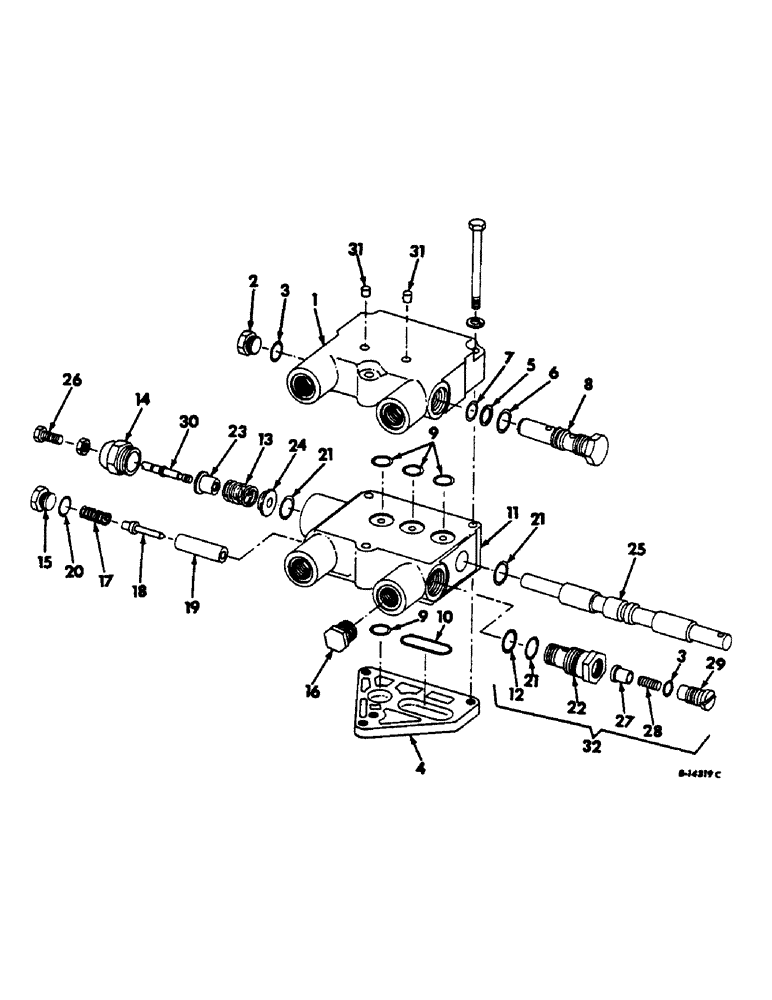

Запчасти Case IH 303 (206) - PLATFORM HYDRAULIC LIFT CONTROL VALVE, FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

156196C91

VALVE

ASSY, one spool control, Consists of ref. nos. 1 thru 30

1шт.

1

587569R1

PLATE, port

1шт.

426444

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

SCREW, 5/16 x 3-1/4 cap

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

588347R1

PLUG

1шт.

3

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

2шт.

4

587571R1

PLATE, valve end

1шт.

5

587585R1

WASHER

backup

1шт.

6

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

3шт.

7

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

8

629535R93

VALVE

ASSY, relief, 1750 PSI, Includes ref. nos. 5, 6 and 7

1шт.

9

587579R1

O-RING

3/4 x 7/8 x 1/16

4шт.

10

587594R1

O-RING

1-1/2 x 1-11/16 x 3/32

1шт.

11

159376C91

VALVE

ASSY, four-way, Includes ref. nos. 12 thru 30 and 32

1шт.

12

169240R1

O-RING

3/32 x 9/16 ID

1шт.

13

588353R1

SPRING

spool centering

1шт.

14

937198R91

CAP

ASSY

1шт.

15

159801C1

PLUG

1шт.

16

9410359

PLUG

hex

1шт.

17

159382C1

SPRING

lockout

1шт.

18

159380C91

VALVE

POPPET ASSY

1шт.

19

159379C1

PLUNGER

lockout

1шт.

20

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

2шт.

21

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

3шт.

22

159381C1

SEAT, lockout

1шт.

23

937195R1

SPRING WASHER

1шт.

24

937194R1

SPRING WASHER

spool spring

1шт.

25

SPOOL, Order valve assy, 159376C91

1шт.

26

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

27

387436R1

TAPPET

PLUNGER, check

1шт.

28

387437R1

SPRING

check

1шт.

29

NOT SERVICED SEPARATELY

1шт.

30

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

31

K11181

SPACER, platform lift valve support

2шт.

32

159803C91

VALVE

PLUG ASSY, check

1шт.

159383C91

PACKAGE

KIT, seal repair, For 159376C91 valve, Consists of

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3/32 x 5/8

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4

3шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3/32 x 1/2

1шт.

159380C91

VALVE

POPPET ASSY

1шт.

156197C91

KIT, major seal repair, Consists of

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

587585R1

WASHER

backup

1шт.

587579R1

O-RING

4шт.

587594R1

O-RING

1шт.
