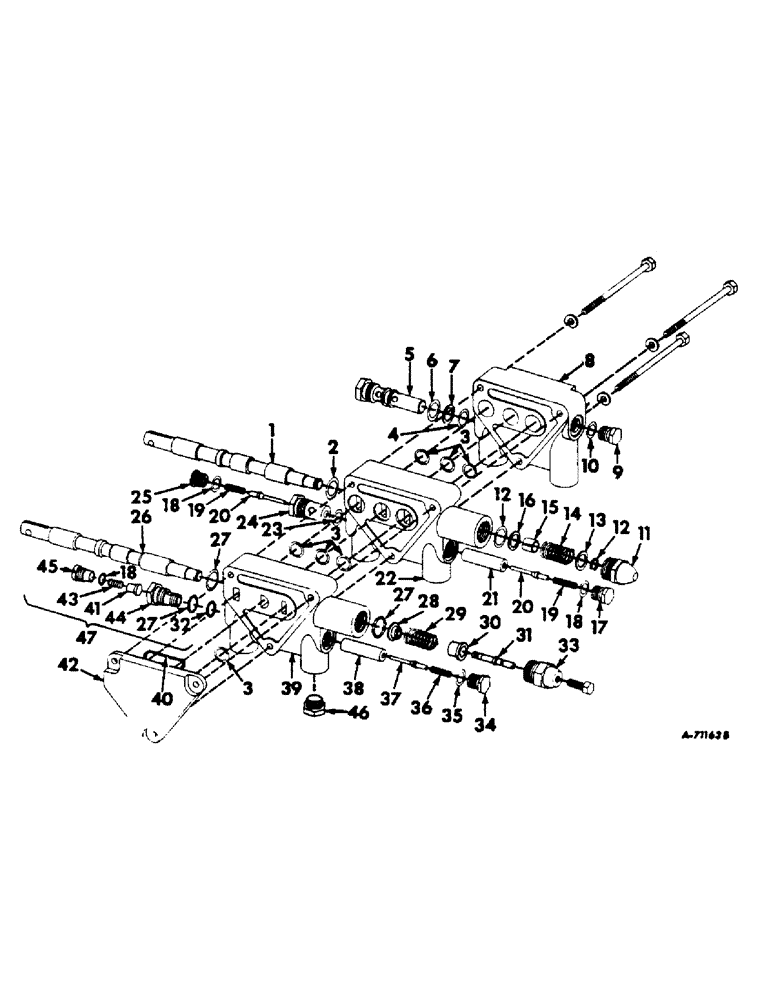

Запчасти Case IH 303 (204) - HYDRAULIC PROPULSION DRIVE AND PLATFORM LIFT VALVE (35) - HYDRAULIC SYSTEMS

156201C91

HYDRAULIC VALVE

VALVE ASSY, platform lift and propulsion control

1шт.

1

SPOOL, Order 588344R91 valve assy, ref. no. 22

1шт.

2

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID

3шт.

3

587579R1

O-RING

1/16 x 3/4 ID

7шт.

4

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

5

629535R92

VALVE

ASSY, relief, Includes ref. nos. 4, 6 and 7, 1750 PSI

1шт.

6

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID

1шт.

7

587585R1

WASHER

backup

1шт.

8

587569R1

PLATE, valve port

1шт.

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

5/16 x 4-7/8 cap screw

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

588347R1

PLUG

1шт.

10

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

11

588346R91

CAP ASSY

1шт.

12

572998R1

SNAP RING

1шт.

13

557268R1

WASHER

1шт.

14

588353R1

SPRING

spool centering

1шт.

15

588345R1

SLEEVE

spool

1шт.

16

11002VA

WASHER

1шт.

17

588347R1

PLUG

1шт.

18

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

19

574789R1

SPRING

2шт.

20

588351R91

VALVE

POPPE ASSY

2шт.

21

588352R1

PLUNGER

lockout

1шт.

22

588344R91

VALVE ASSY, four-way, Includes ref. nos. 1, 2, 11 thru 16, 17 thru 21, 23, 24 and 25

1шт.

23

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

24

588349R1

SEAT

lockout

1шт.

25

588348R1

PLUG, sltd

1шт.

26

SPOOL, Order 159376C91 valve assy, ref. no. 39

1шт.

27

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID

3шт.

28

937194R1

SPRING WASHER

spool spring

1шт.

29

588353R1

SPRING

spool centering

1шт.

30

937195R1

SPRING WASHER

spool spring

1шт.

31

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

32

169240R1

O-RING

3/32 x 9/16 ID

1шт.

33

937198R91

CAP

ASSY

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

34

159801C1

PLUG

1шт.

35

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

36

159382C1

SPRING

lockout

1шт.

37

159380C91

VALVE

POPPET ASSY

1шт.

38

159379C1

PLUNGER

lockout

1шт.

39

159376C91

VALVE

ASSY, four-way, Includes ref. nos. 26 thru 38, 43, 44, 45 and 47

1шт.

40

587594R1

O-RING

3/32 x 1-1/2 ID

1шт.

41

387436R1

TAPPET

PLUNGER, check

1шт.

42

587571R1

PLATE, end

1шт.

43

387437R1

SPRING

check

1шт.

44

159381C1

PLUG

1шт.

45

PLUG, Not serviced separately, order 159803C91 plug assy

1шт.

46

9410359

PLUG

hex

1шт.

47

159803C91

VALVE

PLUG ASSY

1шт.

159383C91

PACKAGE

KIT, repair, For 159376C91 valve, Consists of

1шт.

321956R1

GASKET

O-RING

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

310925R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

159380C91

VALVE

POPPET ASSY

1шт.

156202C91

KIT

major seal repair, Consists of

1шт.

159383C91

PACKAGE

KIT ASSY

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

4шт.

588351R91

VALVE

POPPET ASSY

2шт.

587579R1

O-RING

4шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

587585R1

WASHER

backup

1шт.

587594R1

O-RING

1шт.
