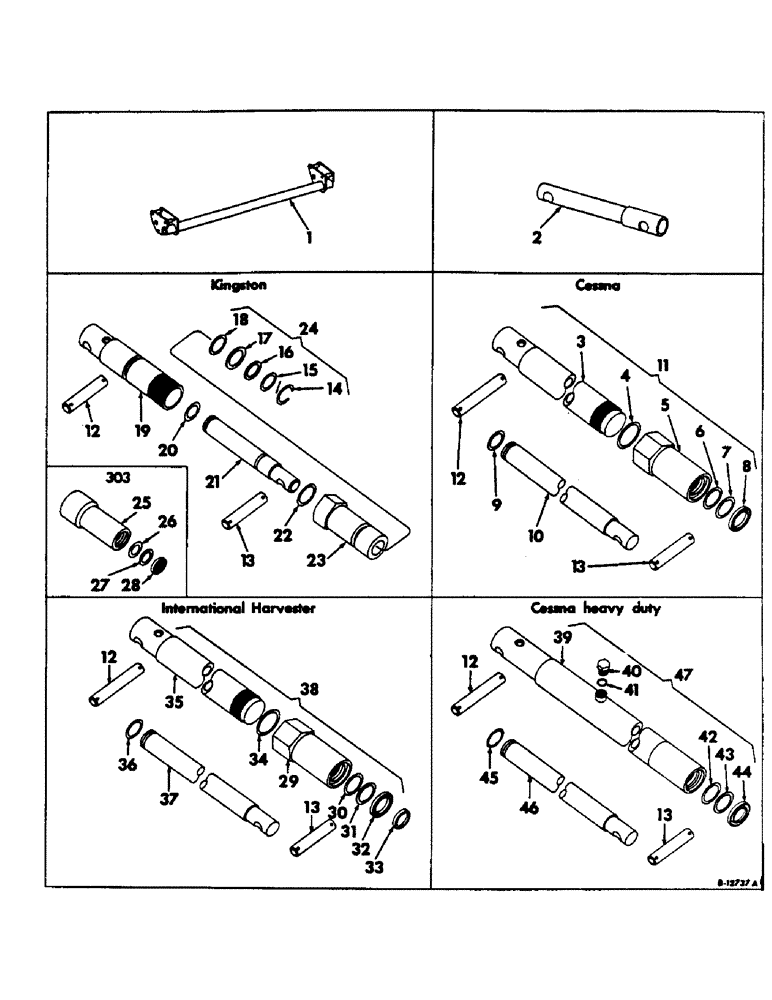

Запчасти Case IH 303 (197) - PLATFORM HYDRAULIC LIFT CYLINDER AND EXTENSION (35) - HYDRAULIC SYSTEMS

1

NOT USED

1шт.

2

568579R91

EXTENSION ASSY, platform lift cylinder, For machines equipped with 23.1/18-26 tires, Note windrow special

2шт.

2

634167R91

EXTENSION W/TUBE, platform lift cylinder, regular for windrow special

2шт.

564986R1

3-1/2 x 1 pin

2шт.

3

570249R91

BARREL, platform hydraulic lift cylinder, For use with cylinder assy, 570251R91

1шт.

3

570250R91

BARREL, platform hydraulic lift cylinder, For use with cylinder assy, 570252R91

1шт.

3

570800C91

BARREL, platform hydraulic lift cylinder, For use with cylinder assy, 570799R91

1шт.

4

290028R1

O-RING

platform hydraulic lift cylinder front end bearing or rear, For use with cylinder assy, 570251R91 and 570252R91

2шт.

4

843797R1

SCRAPER RING

O-RING, platform hydraulic lift cylinder front end bearing rear, For use with cylinder assy, 570799R91

2шт.

5

564983R1

BEARING, platform hydraulic lift cylinder front end, For use with cylinder assy, 570251R91 and 570252R91

2шт.

5

559916R1

BEARING, platform hydraulic cylinder front end, For use with cylinder assy, 570799R91

2шт.

6

259250R1

RING

O-RING, platform hydraulic lift cylinder front end bearing front, For use with cylinder assy, 570251R91 and 570252R91

2шт.

6

558636R1

O-RING

platform hydraulic lift cylinder front end bearing front, For use with cylinder assy, 570799R91

2шт.

7

557779R1

WASHER

back-up, platform hydraulic lift cylinder plunger, For use with cylinder assy, 570251R91 and 570252R91

2шт.

7

558632R1

WASHER

platform hydraulic lift cylinder plunger back-up, For use with cylinder assy, 570799R91

2шт.

8

564898R91

SEAL

OIL SEAL, platform hydraulic lift cylinder front end bearing assy, For use with cylinder assy, 570251R91 and 570252R91

2шт.

8

559922R91

SEAL

OIL SEAL, platform hydraulic lift cylinder front end bearing, For use with cylinder assy, 570799R91

1шт.

9

564985R1

RING, retaining, platform hydraulic lift cylinder, For use with cylinder assy, 570251R91 and 570252R91

2шт.

9

559918R1

RING, SNAP

RING, platform hydraulic lift cylinder retainer, For use with cylinder assy, 570799R91

2шт.

10

564984R1

PISTON, platform hydraulic lift cylinder front end, For use with cylinder assy, 570251R91

2шт.

10

570151R1

PISTON, platform hydraulic lift cylinder front end, For use with cylinder assy, 570252R91

2шт.

10

569336R1

PISTON, platform hydraulic lift cylinder front end, For use with cylinder assy, 570799R91

2шт.

11

570251R91

CYLINDER ASSY, platform hydraulic lift, Includes ref. nos. 3 thru 10, Optional to use cylinder assy, 570263r91 and 583759R91, Not for machines equipped with 18.4-26 tires

2шт.

11

570252R91

CYLINDER ASSY, platform hydraulic lift, Includes ref. nos. 3 thru 10, Optional to use cylinder assy, 574016R91 and 383760R91, For machines with 18.4-26 or 23.1-26 tires

2шт.

11

570799R92

CYLINDER ASSY, platform hydraulic lift, heavy duty, Optional for 583762R91 and 570801R92

2шт.

12

571181R1

PIN, platform rear hydraulic lift cylinder

4шт.

3/16 x 1-3/4 cotter pin

4шт.

13

569335R1

PIN, platform lift cyl extension, rice special with 23.1/18-26 main wheel tires

1шт.

13

564986R1

PIN, platform lift cyl extension, windrow special

2шт.

3/16 x 1-3/4 cotter pin

4шт.

3/16 x 1-3/4 cotter pin

8шт.

14

558631R1

SNAP RING, platform hydraulic lift cylinder piston, For cylinder assy, 570801R92

2шт.

15

558638R1

WASHER

platform hydraulic lift cylinder piston retainer, For cylinder assy, 570801R92

2шт.

16

558637R1

WASHER, platform hydraulic lift cylinder front bearing felt, For cylinder assy, 570801R92

2шт.

17

558632R1

WASHER

platform hydraulic lift cylinder piston backup, For cylinder assy, 570801R92

2шт.

18

558636R1

O-RING

platform hydraulic lift cylinder front bearing front, For cylinder assy, 570801R92

2шт.

19

570264R91

BARREL, platform hydraulic lift cylinder, For use with cylinder assy, 570263R91

2шт.

19

574017R91

BARREL, platform hydraulic lift cylinder, For use with cylinder assy, 574016R91

2шт.

19

570802R91

BARREL ASSY, platform hydraulic lift cylinder, For cylinder assy, 570801R92

2шт.

20

557783R1

SNAP RING, platform hydraulic lift cylinder plunger, For cylinder assy, 570263R91 and 574016R91

2шт.

20

558639R1

SNAP RING, platform hydraulic lift cylinder piston, For cylinder assy, 570801R92

2шт.

21

570135R1

PLUNGER, platform hydraulic cylinder, For use with cylinder assy, 570263R91

2шт.

21

569798R1

PLUNGER, platform hydraulic lift cylinder, For use with cylinder assy, 574016R91

2шт.

21

570550R91

PISTON ASSY, platform hydraulic lift cylinder, For use with cylinder assy, 570801R92

2шт.

22

255088R1

O-RING

platform hydraulic lift cylinder plunger guide rear, For use with cylinder assy, 570251R91 and 570252R91

2шт.

22

843797R1

SCRAPER RING

O-RING, platform hydraulic lift cylinder front bearing rear, For use with cylinder assy, 570801R92

2шт.

23

570551R92

BEARING ASSY, cylinder front, Includes ref. nos. 14 thru 18, For use with cylinder assy, 570801R92

1шт.

24

570263R91

CYLINDER ASSY, platform hydraulic lift, Includes ref. nos. 18 thru 23, Optional to use cylinder assy, 570251R91 and 383759R91, Not for machines equipped with 18.4-26 tires

2шт.

24

574016R91

CYLINDER ASSY, platform hydraulic lift, Includes ref. nos. 18 thru 23, Optional to use cylinder assy, 570252R91 and 383760R91, For machines equipped with 18.4-26 tires or 23.1-26 tires

1шт.

24

570801R92

CYLINDER ASSY, platform hydrualic lift, heavy duty, Optional for 383762R91 and 570799R92

2шт.

25

569799R91

GUIDE, platform hydraulic lift cylinder plunger, w/ring and seal assy, Includes ref. nos. 26 and 27, For use with cylinder assy, 570251R91 and 570252R91

2шт.

26

259250R1

RING

O-RING, platform lift cylinder plunger guide, front, For use with cylinder assy, 570251R91 and 570252R91

2шт.

27

557779R91

WASHER, back-up, For use with cylinder assy, 570251R91 and 570252R91

1шт.

28

564898R91

SEAL

OIL SEAL, platform hydraulic lift cylinder plunger guide, For use with cylinder assy, 570251r91 and 570252R91

2шт.

29

383769R11

HEAD ASY, rod end, Includes ref. nos. 32 and 33, For use with 383759R91 and 383760R91 cylinders

1шт.

29

383778R11

HEAD

ASSY, rod end, Includes ref. nos. 32 and 33, For use with cylinder assy, 383762R91

1шт.

30

378735R1

O-RING,1.475" ID x 0.21" Width

1-1/2 x 1-7/8 x 3/6, For use with 383759R91 and 383760R91 cylinders

1шт.

30

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16, For use with 383762R91 cylinder assy

2шт.

31

378734R1

BACK-UP RING

WASHER, piston rod back-up, For use with 383759R91 and 383760R91 cylinders

1шт.

31

378726R1

BACK-UP RING

piston rod back-up, For use with cylinder assy, 383762R91

2шт.

32

383770R1

WASHER

SEAL, piston rod dust, For use with 383759R91 and 383760R91 cylinders

1шт.

32

383783R1

SEAL

SEAL, piston rod dust, For use with 383762R91 cylinder

2шт.

33

383771R1

SEALING WASHER

RETAINER, piston rod dust seal, For use with 383759R91 and 383760R91 cylinders

1шт.

33

383779R1

RETAINER

piston rod seal, For use with cylinder assy, 383722R91

2шт.

34

383782R1

OIL SEAL

O-RING, 2-1/8 x 2-3/8 x 1-1/8, For use with 383759R91 and 383760R91 cylinders

1шт.

34

366581R1

O-RING,2.612" ID x 0.103" Width

2-5/8 x 2-13/16 x 3/32, For use with cylinder assy, 383762R91

2шт.

35

383765R11

TUBE W/HEAD ASSY, cylinder, For use with 383760R91 cylinder 20.62" Length

1шт.

35

383764R11

TUBE W/HEAD ASSY, cylinder, For use with 383759R91 cylinder 17.62" Length

1шт.

35

383775R11

TUBE W/HEAD ASSY, cylinder, For use with cylinder assy, 383762R91 17.87" Length

2шт.

36

376821R1

RING, SNAP

STOP RING, piston rod, For use with 383759R91 and 383760R91 cylinders

1шт.

36

378752R1

RING, PISTON

STOP RING, piston rod, for use with cylinder assy, 383762R91

2шт.

37

383772R1

ROD, piston, For use with 383759R91 cylinder

1шт.

37

383773R1

ROD, piston, For use with 383760r91 cylinder

1шт.

37

383780R1

ROD, piston, For use with cylinder assy, 383762R91 cylinder

2шт.

38

383759R92

CYLINDER ASSY, platform hydraulic lift, Optional for cylinder assy, 570251R91 and 570263R91, Not for machines equipped with 15-26 tires

2шт.

38

383760R92

CYLINDER ASSY, platform hydraulic lift, Optional for cylinder assy, 570252r91 and 574016R91, For machines equipped with 15-26 or 18-26 tires

2шт.

38

383762R92

CYLINDER ASSY, platform hydraulic lift, heavy duty, Optional for 570799R91 and 570801R92

2шт.

REF. NOS. 39 THRU 47 NOT USED AS FOOTNOTES

1шт.

386691R91

PISTON RING SET

KIT ASSY, hydraulic cylinder, For cylinder 383759R91 and 383760R9 Consists of

1шт.

378735R1

O-RING,1.475" ID x 0.21" Width

1-1/2 x 1-7/8 x 3/16

1шт.

378734R1

BACK-UP RING

WASHER, piston rod back-up

1шт.

383770R1

WASHER

SEAL, piston rod dust

1шт.

383771R1

SEALING WASHER

RETAINER, piston rod dust seal

1шт.

383782R1

OIL SEAL

O-RING, 2-1/8 x 2-3/8 x 1/8

1шт.

386692R92

KIT ASSY, hydraulic, For cylinder assy, 383762R91, Consists of

1шт.

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16

1шт.

378726R1

BACK-UP RING

piston rod back-up

1шт.

383783R1

SEAL

SEAL, piston rod dust

1шт.

383779R1

RETAINER

piston rod dust seal

1шт.

366581R1

O-RING,2.612" ID x 0.103" Width

2-5/8 x 2-13/16 x 3/32

1шт.
