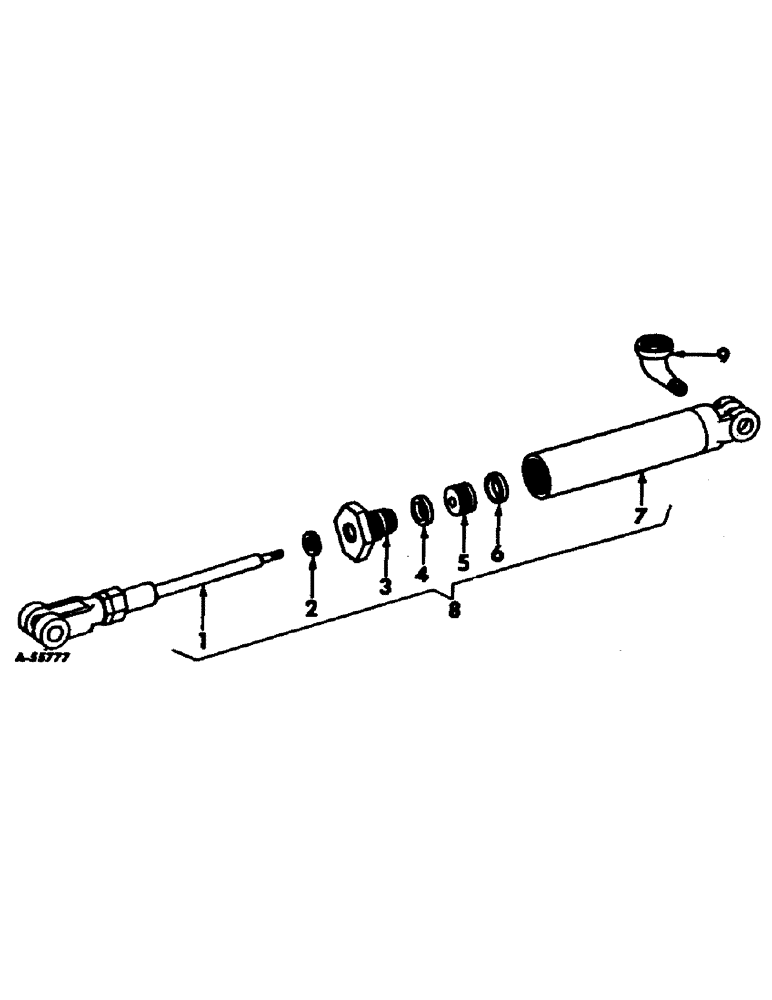

Запчасти Case IH 303 (196) - HYDRAULIC PROPULSION CONTROL CYLINDER, CESSNA (35) - HYDRAULIC SYSTEMS

1

574781R91

ROD ASSY, piston

1шт.

5/16 jam nut

1шт.

5/16 x 1-1/4 cotter pin

2шт.

5/8 x 1-3/4 dld pin

2шт.

5/16 lockwasher

1шт.

2

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

piston rod

1шт.

3

574779R1

BEARING

1шт.

4

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

bearing

1шт.

5

574780R1

PISTON

1шт.

6

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

piston

1шт.

7

574778R91

BARREL ASSY

1шт.

8

574475R91

CYLINER ASSY, hydraulic propulsion control, Order hydraulic propulsion control cylinder assy 387869R91, (2) hose assys, 939480R91, and (2) o-rings, 364839R1

1шт.

9

NOT USED

1шт.
