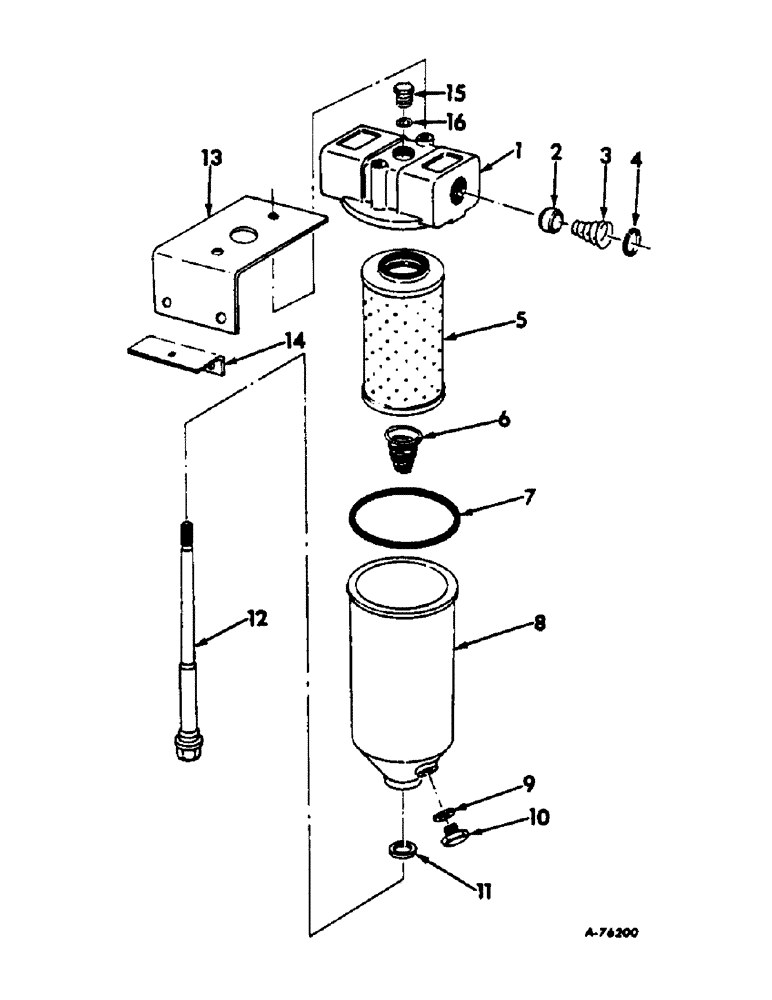

Запчасти Case IH 303 (181) - OIL FILTER FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

156571C91

FILTER CARTRIDGE

FILTER ASSY, oil, For components see list of parts under details of oil filter assy, Consists of ref. no. 1 thru 12

1шт.

1

VALVE AND BASE ASSY, Not serviced separately

1шт.

2

381625R1

VALVE, relief check

1шт.

3

381626R1

SPRING, relief check valve

1шт.

4

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

1шт.

5

381256R91

ELEMENT

CARTRIDGE ASSY

1шт.

6

471633R1

SPRING

holddown

1шт.

7

381627R1

RUBBER WASHER

GASKET, base groove

1шт.

8

471634R1

BODY AND FITTING ASSY

1шт.

9

381618R1

COPPER WASHER

RING, gasket

1шт.

10

445078

PLUG

1шт.

11

381629R1

GASKET

1шт.

12

471632R1

BOLT, holddown

1шт.

13

154874C1

ANGLE, oil filter support

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14

154875C1

ANGLE, oil filter support stiffener

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

9410359

PLUG

ASSY, 3/4 hex

1шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

1шт.
