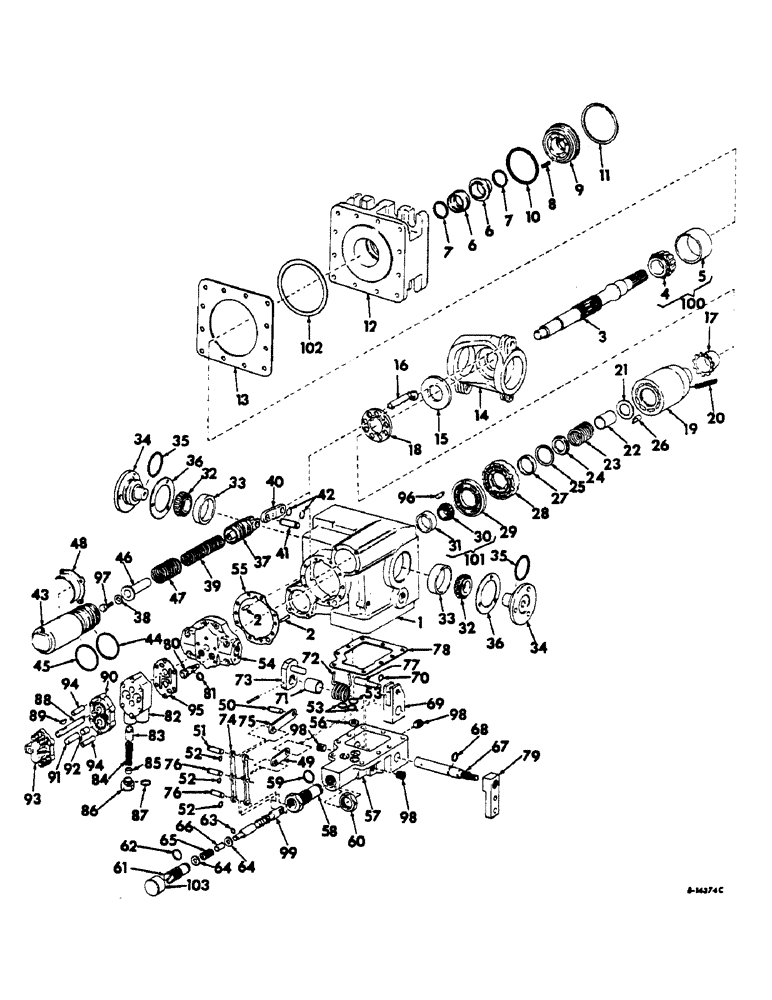

Запчасти Case IH 303 (178) - HYDRAULIC TRANSMISSION PUMP, FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

150642C91

PUMP

ASSY, ground drive

1шт.

1

394179R1

HOUSING

transmission pump

1шт.

2

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel pump housing

4шт.

3

394180R1

SHAFT

pump drive

1шт.

4

BEARING ASSY, drive shaft front cone, Not serviced separately, Order bearing assy, 394181R91

1шт.

5

BEARING ASSY, drive shaft front cup, Not serviced separately, Order bearing assy, 394181R91

1шт.

6

153870C91

SEAL

KIT, drive shaft face seal

1шт.

7

393880R1

RING

O-RING, 1-9/16 x 1-3/4 x 3/32

2шт.

8

393882R1

SPRING

drive shaft face seal retainer

6шт.

9

393881R91

RETAINER

ASSY, drive shaft face seal

1шт.

10

707720R1

O-RING

3 x 3-1/4 x 1/8

1шт.

11

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face seal 3.346", Int, #334

1шт.

12

394183R1

COVER, transmission pump front

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

4шт.

394881R1

WASHER

13/32 x 11/16 x .106

12шт.

13

394184R1

GASKET

transmission pump front cover

1шт.

14

394185R1

SWASHPLATE, transmission pump

1шт.

15

394186R1

WASHER

PLATE, piston slipper thrust

1шт.

16

394187R91

PISTON

ASSY, cyl block

9шт.

17

394188R1

GUIDE

cyl block piston slipper

1шт.

18

394189R1

RETAINER

cyl block piston slipper

1шт.

19

394190R91

BLOCK

ASSY, piston cyl

1шт.

20

394191R1

SPRING

piston cyl block

9шт.

21

394192R1

SEAT

piston cyl block spring

1шт.

22

394193R1

BUSHING

drive shaft rear spring

1шт.

23

394194R1

SPRING

drive shaft rear

1шт.

24

394195R1

RETAINER

drive shaft rear spring

1шт.

25

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, drive shaft rear spring retainer snap

1шт.

26

394196R1

NO LONGER SERVICED

PIN, cyl block brg plate

1шт.

27

394197R1

RING

cyl block brg plate pilot

1шт.

28

394198R1

PLATE

cyl block brg

1шт.

29

394199R1

PLATE

cyl block valve

1шт.

30

BEARING ASSY, drive shaft rear pilot cone, Not serviced separately, Order bearing assy, 394200R91

1шт.

31

BEARING ASSY, drive shaft rear pilot cup, Not serviced separately, Order bearing assy, 394200R91

1шт.

32

165963R91

BEARING

ASSY, swashplate cone

2шт.

33

560954R1

BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"

swashplate cup

2шт.

34

394204R1

TRUNNION

swashplate brg

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

WASHER

6шт.

35

21003R1

O-RING,2.484" ID x 2.762" OD x 0.139"

2-1/2 x 2-3/4 x 1/8

2шт.

36

394205R91

SET

swashplate brg trunnion gasket

1шт.

37

394206R1

PISTON

servo

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

38

394207R1

WASHER

servo piston bolt

2шт.

39

394824R1

SPRING

servo piston bolt

2шт.

40

394208R1

LINK, servo piston

2шт.

41

394209R1

PIN

servo piston link

4шт.

42

321935C1

SNAP RING,#62, Ext

Ring, Snap, , servo piston link pin #62, Ext

8шт.

43

394210R1

SLEEVE, servo piston

2шт.

44

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

2шт.

45

21005R1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

2-3/8 x 2-9/16 x 3/32

2шт.

46

394211R1

GUIDE

servo piston spring

2шт.

47

394212R1

SPRING, servo piston

2шт.

48

394213R1

RETAINER

servo piston sleeve

2шт.

191209

SCREW,#10 - 24 x 3/8"

10-24 x 3/8 hex-soc-hd cap

6шт.

49

394214R1

LINK

control valve

1шт.

50

394215R1

PIN

control valve link front

1шт.

51

394216R1

PIN

control valve link rear

1шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

137130

PIN

1/16 x 7/16 cot

1шт.

52

233045R1

SNAP RING,#25, Ext, Crescent

Ring, Snap, , Control valve link pin #25, Ext, Crescent

3шт.

53

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

1шт.

54

394217R1

COVER, transmission pump rear end

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

394881R1

WASHER

13/32 x 11/16 x .106

8шт.

55

394218R1

GASKET

transmission pump rear end cover

1шт.

56

394219R1

PLUG

control valve orifice

1шт.

394220R91

VALVE ASSY, control, Includes ref. nos. 57 thru 81 and 98

1шт.

57

394221R91

HOUSING AND SPOOL ASSY, control valve

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

179805

BOLT,Hex, 1/4" - 20 x 2", Gr 5

6шт.

385180R1

WASHER

9/32 x 1/2 x .065

9шт.

58

394222R1

HOUSING

centering spring

1шт.

59

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

1шт.

60

394223R1

LOCK NUT

centering spring housing lock

1шт.

61

394224R1

SCREW,Sl, 3/4" - 16 x 1.56"

centering spring, adjusting

1шт.

219753

BACK-UP RING

3/4-16 hex jam

1шт.

62

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

13/16 x 15/16 x 1/16

1шт.

63

233045R1

SNAP RING,#25, Ext, Crescent

Ring, Snap, , Spring adjusting screw #25, Ext, Crescent

1шт.

64

394225R1

WASHER

centering spring

2шт.

65

394226R1

SPRING

centering

1шт.

66

394227R1

SLEEVE

centering spring

1шт.

67

394228R1

SHAFT

control valve handle

1шт.

68

355967R1

O-RING,0.364" ID x 0.003" Width

3/8 x 1/2 x 1/16

1шт.

69

394229R1

LINK

control valve handle shaft

1шт.

70

235529R1

SNAP RING,#50, Ext, Crescent

Ring, Snap, , control valve handle shaft #50, Ext, Crescent

1шт.

71

394230R1

SLEEVE

control valve handle shaft return spring

1шт.

72

394231R1

SPRING

control valve handle shaft return

1шт.

73

394232R1

ARM

ACTUATOR, control valve handle shaft return spring

1шт.

74

394233R1

LINK, control valve

2шт.

75

394234R1

CONNECTOR, ELEC

CONNECTOR, control valve link

1шт.

76

394235R1

PIN

control valve link pivot

2шт.

77

394236R1

PIN

control valve handle shaft link

1шт.

78

394237R1

GASKET

control valve housing

1шт.

79

153869C1

HANDLE

control valve shaft

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

80

394238R91

VALVE

ASSY, charge pump check

2шт.

81

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16

2шт.

153866C91

PUMP

ASSY, hyd charge, Includes ref. nos. 82 thru 95

1шт.

179809

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

385180R1

WASHER

9/32 x 1/2 x .065

4шт.

82

394276R91

BODY ASSY, hyd charge pump

1шт.

21068R1

PIN, 7/32 x 9/16 slt

1шт.

83

394277R1

PISTON, relief valve

1шт.

84

394278R1

SPRING, relief valve

1шт.

85

394279R91

KIT

PACKAGE, relief valve shim

1шт.

86

394173R1

PLUG

relief valve

1шт.

87

O-RING, relief valve plug

1шт.

88

394280R1

SHAFT, hyd charge pump input drive

1шт.

89

NLS

NO LONGER SERVICED

KEY, 1/8 x 3/8 Woodruff 213 pump input drive shaft

1шт.

90

394281R91

GEAR AND HOUSING ASSY, pump drive shaft

1шт.

91

394282R1

SHAFT, pump drive gear idler

1шт.

92

394283R1

SPACER, pump drive shaft, idler gear shaft

1шт.

93

394284R1

COVER, charge pump end

1шт.

SCREW, 1/4-28 x 2-1/4 hex-hd cap

2шт.

94

394285R1

SLEEVE, pump end cover screw

2шт.

95

153871C1

GASKET

pump end cover

1шт.

96

394825R1

DOWEL

PIN, 5/8 x 5/8 dowel

1шт.

97

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

98

444687

PLUG,Hex Soc, 1/8"-27

Drain Hex Soc, 1/8"-27

3шт.

99

VALVE, control, Not serviced separately, Order control valve assy, 394220R91

1шт.

100

394181R91

BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"

ASSY, drive shaft front

1шт.

101

394200R91

BEARING ASSY,1.0005" ID x 2.3442" OD x 0.923, 0.72"

ASSY, drive shaft rear pilot

1шт.

102

397163R1

SHIM

1шт.

394290R91

PACKAGE

drive shaft face seal

1шт.

103

400546R1

COVER

centering spring housing

1шт.
