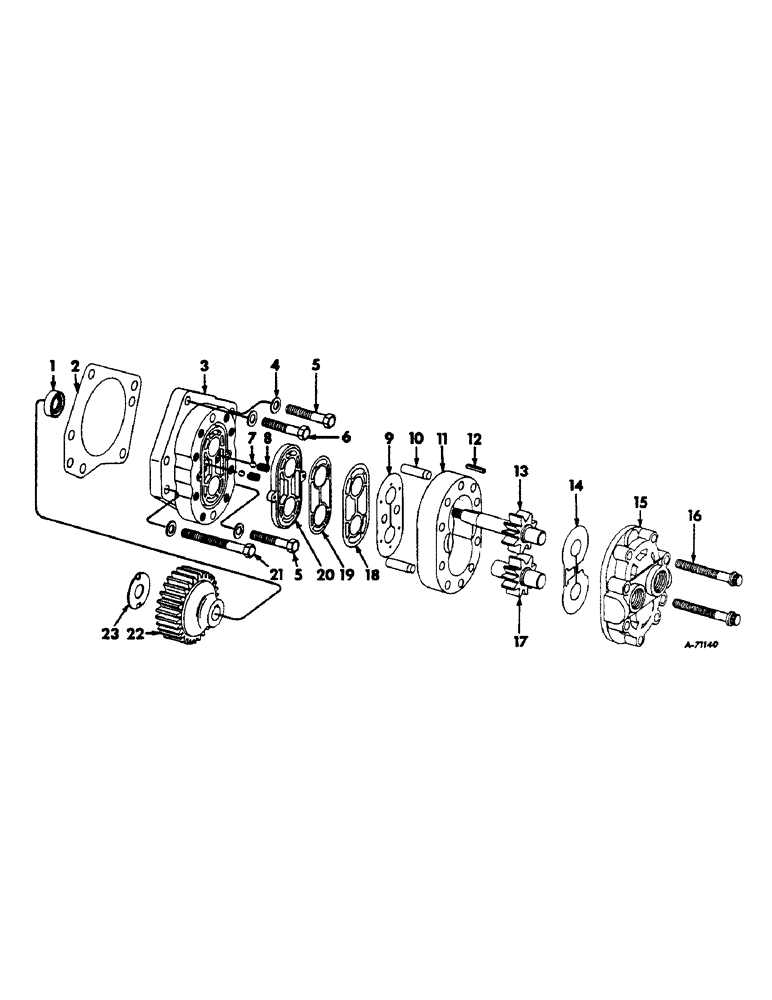

Запчасти Case IH 303 (173) - PLATFORM HYDRAULIC LIFT PUMP, POWER STEERING, SERIAL NO. 1160 TO 1566 (35) - HYDRAULIC SYSTEMS

653902R91

PUMP ASSY, hydraulic, Includes ref. nos. 1, 2, 3 and 7 thru 20

1шт.

1

636628R91

SEAL

shaft

1шт.

2

632851R1

GASKET

flange

1шт.

3

632865R91

PLATE ASSY, front

1шт.

4

565832R1

WASHER

hydraulic pump mounting bolt

4шт.

5

277678R1

SCREW

BOLT, hydraulic pump mounting

2шт.

6

277677R1

LOCK SCREW

BOLT, hydraulic pump mounting

1шт.

7

17007R1

BALL

7/32 dia steel

2шт.

8

371523R1

SPRING

2шт.

9

NOT SERVICED SEPARATELY

1шт.

10

NOT SERVICED SEPARATELY

1шт.

11

NOT SERVICED SEPARATELY

1шт.

12

628965R1

KEY

1шт.

13

633296R91

SHAFT W/GEAR AND SNAP RING ASSY, drive

1шт.

14

NOT SERVICED SEPARATELY

1шт.

15

632833R91

PLATE ASSY, back

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

16

138229

SCREW, 5/16 x 2-3/4 cap hex-hd

2шт.

17

633295R91

SHAFT W/GEAR AND SNAP RING ASSY, idler

1шт.

18

NOT SERVICED SEPARATELY

1шт.

19

NOT SERVICED SEPARATELY

1шт.

20

NOT SERVICED SEPARATELY

1шт.

21

277679R1

BOLT, hydraulic pump mounting

1шт.

22

631140R1

GEAR, hydraulic pump

1шт.

23

587989R1

WASHER, hydraulic pump shaft

1шт.

3/8 nut

1шт.

3/8 lockwasher

1шт.

13/32 x 1 x 16 ga washer

1шт.

633297R91

KIT ASSY, body and dowel repair, Consists of

1шт.

BODY

1шт.

PINS

2шт.

654324R91

PACKAGE

KIT ASSY, major seal repair, Consists of

1шт.

SPRINGS

2шт.

SEAL, diaphragm

1шт.

DIAPHRAGM

1шт.

GASKET, back-up

1шт.

GASKET, protector

1шт.

PLATE

1шт.

SEAL, shaft

1шт.

GASKET, flange

1шт.

O-RING, 3/62 x 7/16

1шт.

O-RING, 3/32 x 5/8

1шт.

BALL, steel

2шт.

O-RING, 1/8 x 5/16

1шт.

WASHERS

8шт.
