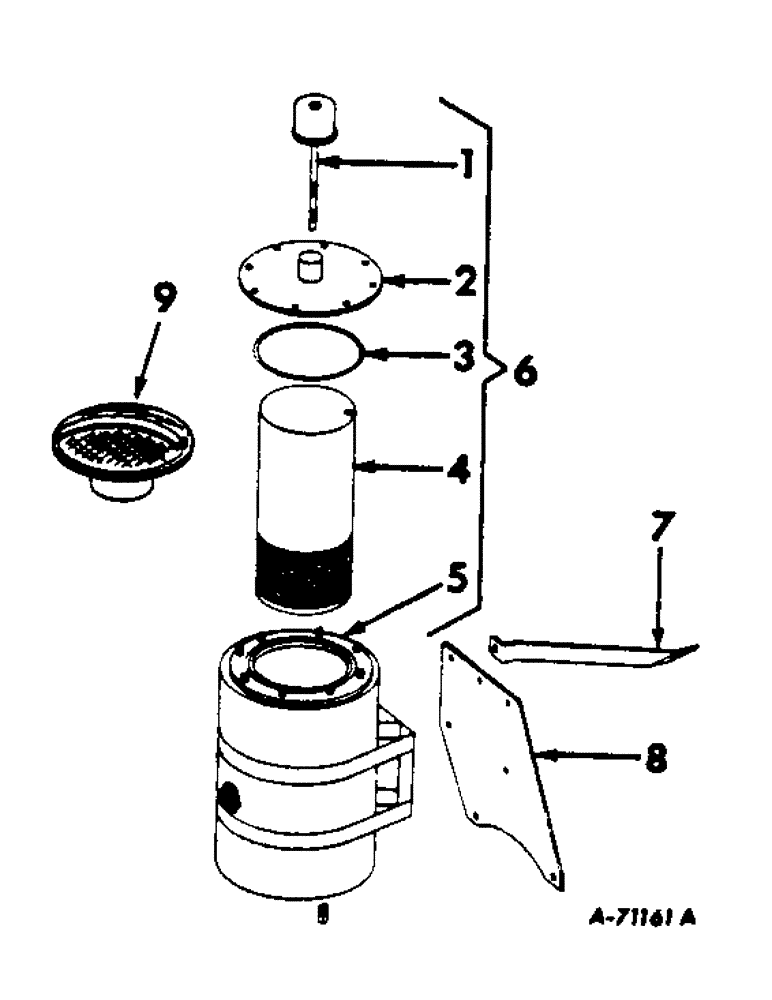

Запчасти Case IH 303 (164) - HYDRAULIC RESERVOIR, GASOLINE ENGINE (35) - HYDRAULIC SYSTEMS

1

567521R91

CAP

BREATHER CAP AND DIPSTICK ASSY

1шт.

2

567435R91

COVER ASSY

1шт.

3

588375R1

RING

O-RING

1шт.

4

634333R91

CARTRIDGE ASSY, Serial no. 9427 & below

1шт.

4

155675C91

CARTRIDGE ASSY, Serial no., Serial Range: 9428-11764

1шт.

4

386120R92

CARTRIDGE ASSY, Serial no. 11764 & above

1шт.

5

BODY, reservoir, Order 633382R91 reservoir assy, ref. no. 6, Serial no. 9427 & below

1шт.

5

BODY, reservoir, Order 154682C91 reservoir assy, ref. no. 6, Serial no., Serial Range: 9428-11764

1шт.

5

BODY, reservoir, Order 156395C91 reservoir assy, ref. no. 6, Serial no. 11764 & above

1шт.

6

633382R91

RESERVOIR ASSY, Serial no. 9427 & below

1шт.

6

154682C91

RESERVOIR

ASSY, Serial no., Serial Range: 9428-11764

1шт.

6

156395C91

RESERVOIR

ASSY, hydraulic oil, Serial no. 11764 & above

1шт.

5/16 x 1 cap screw

2шт.

No. 10 nut

8шт.

110633

NUT,#10-24

5/16 nut

2шт.

No. 10 lockwasher

8шт.

5/16 lockwasher

2шт.

7

631935R1

BRACE, reservoir

1шт.

3/8 x 3/4 mach bolt w/nut

1шт.

3/8 lockwasher

1шт.

8

628433R2

SUPPORT, reservoir

1шт.

3/8 x 3/4 mach bolt w/nut

3шт.

3/8 lockwasher

3шт.

9

386121R92

VALVE

ASSY, reservoir, For use w/reservoir assy, 156395C91, Serial no. 11764 & above

1шт.
