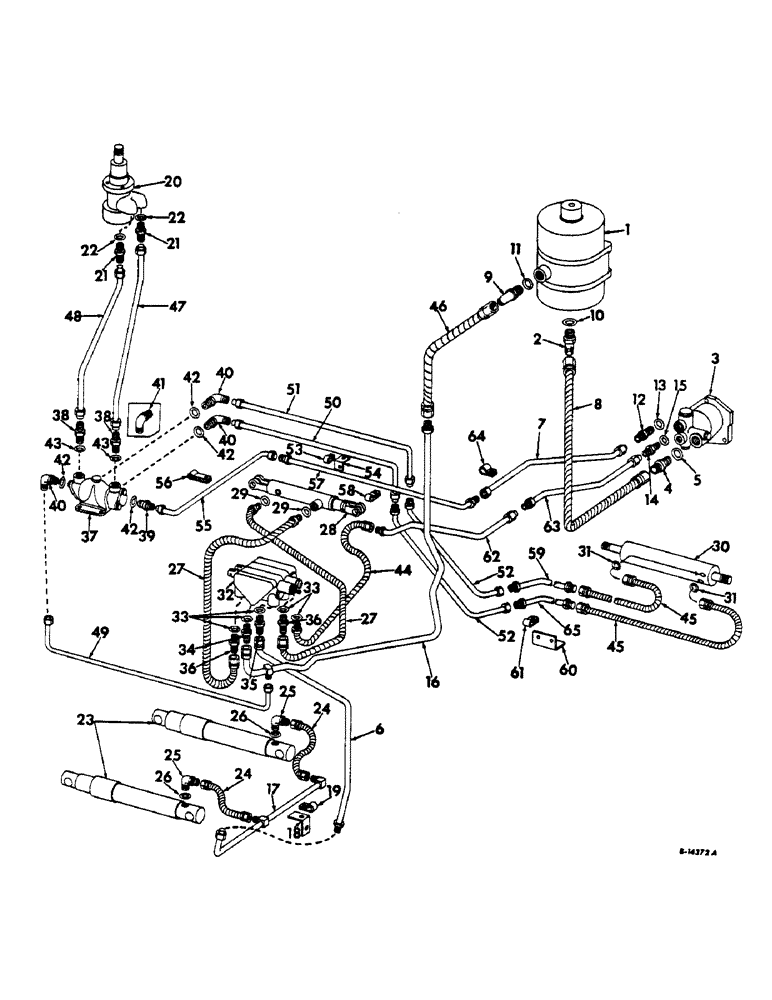

Запчасти Case IH 303 (162) - HYDRAULIC DIAGRAM, HYDROSTATIC STEERING, SERIAL NO. 7278 AND ABOVE (35) - HYDRAULIC SYSTEMS

1

633382R91

RESERVOIR ASSY, hydraulic oil, Serial no. 9427 & below, For components see list of parts under details of hydraulic reservoir

1шт.

1

156395C91

RESERVOIR

ASSY, hydraulic oil, For components see list of parts under details of hydraulic oil reservoir

1шт.

2

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

reservoir suction, Serial no. 9427 & below

1шт.

2

150776C91

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

reservoir suction, Serial no. 9428 & above

1шт.

3

150104C91

PUMP ASSY, hydraulic lift, For components see list of parts under details of hydraulic lift pump

1шт.

4

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR

1шт.

5

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

pump suction hose

1шт.

6

628434R11

PIPE ASSY, platform lift cylinder upper 1" OD, 39.56, 11.68" Length

1шт.

7

939258R91

PIPE ASSY, pump to valve rear, grain tank

1шт.

7

151660C91

TUBE ASSY, pump to valve rear, bagger

1шт.

8

628438R92

HOSE ASSY, suction

1шт.

9

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

reservoir return

1шт.

10

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

reservoir connectors, Serial no. 9427 & below

2шт.

10

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

reservoir suction connector, Serial no. 9428 & above

1шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

reservoir return connector, Serial no. 9428 & above

1шт.

12

587578R1

CONNECTOR, ELEC

CONNECTOR, pump pressure

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

pressure connector

1шт.

14

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, power steering upper pressure tube

1шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, power steering upper pressure tube connector

1шт.

16

939275R11

PIPE ASSY, platform lift return, grain tank

1шт.

16

150098C91

PIPE ASSY, platform lift return, bagger

1шт.

17

631848R11

PIPE ASSY, platform lift cylinder lower 1" OD, 31.38, 4.87" Length

1шт.

18

583799R1

ANCHOR, platform lift cylinder lower tube clip

1шт.

19

587501R2

CLAMP

CLIP, tube

1шт.

19

567895R2

CLIP, tube

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 x 3/4 C-Z mach bolt w/nut

1шт.

5/16 x 3/4 C-Z crg bolt w/nut

1шт.

20

378578R93

HYDRAULIC STEERING

PUMP ASSY, steering hand, For components see list of parts under details of hydrostatic steering pump

1шт.

21

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR

2шт.

22

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

23

570263R91

CYLINDER ASSY, platform lift, grain, Optional for 570251R91 or 383759R91 cylinder assy, For components see list of parts under details of platform hydraulic lift cylinder

2шт.

23

570251R91

CYLINDER ASSY, platform lift, grain, Optional for 570263R91 or 383759R91 cylinder assy, For components see list of parts under details of platform hydraulic lift cylinder

2шт.

23

383759R91

CYLINDER ASSY, platform lift, grain, Optional for 570263R91 or 570251R91 cylinder assy, For components see list of parts under details of platform hydraulic lift cylinder

2шт.

23

574016R91

CYLINDER ASSY, platform lift, rice, Optional for 570252R91 or 383760R91 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

23

570252R91

CYLINDER ASSY, platform lift, rice, Optional for 574016R91 or 383760R91 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

23

383760R91

CYLINDER ASSY, platform lift, rice, Optional for 574016R91 or 570252R91 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

24

587582R91

HOSE ASSY.

HOSE ASSY, platform lift cylinder, 29 inches

2шт.

25

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

2шт.

26

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

27

574499R91

HOSE ASSY, propulsion control cylinder, 20 in., For use with propulsion control cylinder, 574475R91

2шт.

27

939480R91

HOSE

ASSY, propulsion control cylinder, 20 in., For use with propulsion control cylinder, 387864R91

2шт.

28

574475R91

CYLINDER ASSY, propulsion control, Order cylinder assy, 387864R91, (2) hose assys, 939480R91 and (2) o-rings, 364839R1

1шт.

28

387864R91

CYLINDER ASSY, propulsion control, For components see list of parts under details of propulsion cylinder

1шт.

29

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, propulsion control cylinder, for use with propulsion control cylinder, 387864R91

2шт.

30

654631R91

CYLINDER ASSY, steering

1шт.

30

397689R91

CYLINDER ASSY, steering, Optional for 654631R91 cylinder assy, For components see list of parts under details of steering cylinder

1шт.

31

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

32

156201C91

HYDRAULIC VALVE

VALVE ASSY, propulsion drive and platform list, For components see list of parts under details of propulsion drive and platform lift valve

1шт.

33

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5шт.

34

574478R1

UNION

CONNECTOR, return tube

1шт.

35

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, platform lift tube

1шт.

36

629349R1

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, propulsion control

2шт.

37

396726R91

LOCK VALVE

VALVE ASSY, steering, For components see list of parts under details of steering valve

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

38

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR

1шт.

39

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR

1шт.

40

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3шт.

41

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

42

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

43

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

44

628437R91

HOSE

ASSY, valve pressure

1шт.

45

632455R91

HOSE

ASSY, steering cylinder, grain, windrow special, bean special and rice w/narrow guide wheel axle

2шт.

45

633213R91

HOSE ASSY, steering cylinder, 18 in., rice special w/wide guide wheel axle

2шт.

45

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

0.31" ID x 20.00", Steering Cylinder, For Adjustable Guide Wheel Axle 52 to 68 in

2шт.

45

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE ASSY, steering cylinder, 30 in., For adjustable guide wheel axle 68 to 84 in.

2шт.

46

628440R91

HOSE ASSY, platform lift return

1шт.

47

939254R11

PIPE ASSY, hand pump to valve LH

1шт.

48

939252R11

PIPE ASSY, hand pump to valve RH

1шт.

49

939253R11

PIPE ASSY, steering valve return

1шт.

50

654585R11

PIPE ASSY, steering valve to cylinder front upper 1.375" OD, 39.75, 4.81" Length

1шт.

51

654584R11

PIPE ASSY, steering valve to cylinder front lower 1.375" OD, 41.06, 5.24" Length

1шт.

52

939250R11

PIPE ASSY, steering valve to cylinder center

2шт.

53

589980R2

CLIP

4шт.

54

935670R1

ANGLE, pipe clip holder

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z mach bolt w/nut

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

55

939255R11

PIPE ASSY, pump to valve front

1шт.

56

935765R1

CLIP

1шт.

57

939249R11

PIPE ASSY, pump to valve center, grain tank

1шт.

57

151661C91

TUBE ASSY, pump to valve center, bagger

1шт.

58

589980R2

CLIP

1шт.

5/16 x 1-1/4 C-Z cap screw

2шт.

5/16 C-Z nut

2шт.

5/16 C-Z lockwasher

2шт.

59

939257R11

PIPE ASSY, valve to cylinder rear, grain and adjustable axle 68 in. to 84 in.

1шт.

59

151693C91

TUBE ASSY, valve to cylinder rear top, rice and adjustable axle 52 in. to 68 in.

1шт.

60

628190R1

SUPPORT, tube clip

1шт.

61

589980R2

CLIP

(6) for grain tank, (4) for bagger

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 C-Z cap

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

62

628439R11

PIPE ASSY, platform lift front pressure, grain tank 1" OD, 69.93, 2.3" Length

1шт.

62

654729R11

TUBE ASSY, platform lift front pressure, bagger

1шт.

63

939996R91

PIPE ASSY, pump to platform lift valve upper

1шт.

64

589980R2

CLIP

1шт.

65

939257R11

TUBE ASSY, valve to cylinder rear bottom, grain and adjustable axle 68 in. to 84 in.

1шт.

65

151694C91

TUBE ASSY, valve to cylinder rear bottom, rice and adjustable axle 52 in. to 68 in.

1шт.
