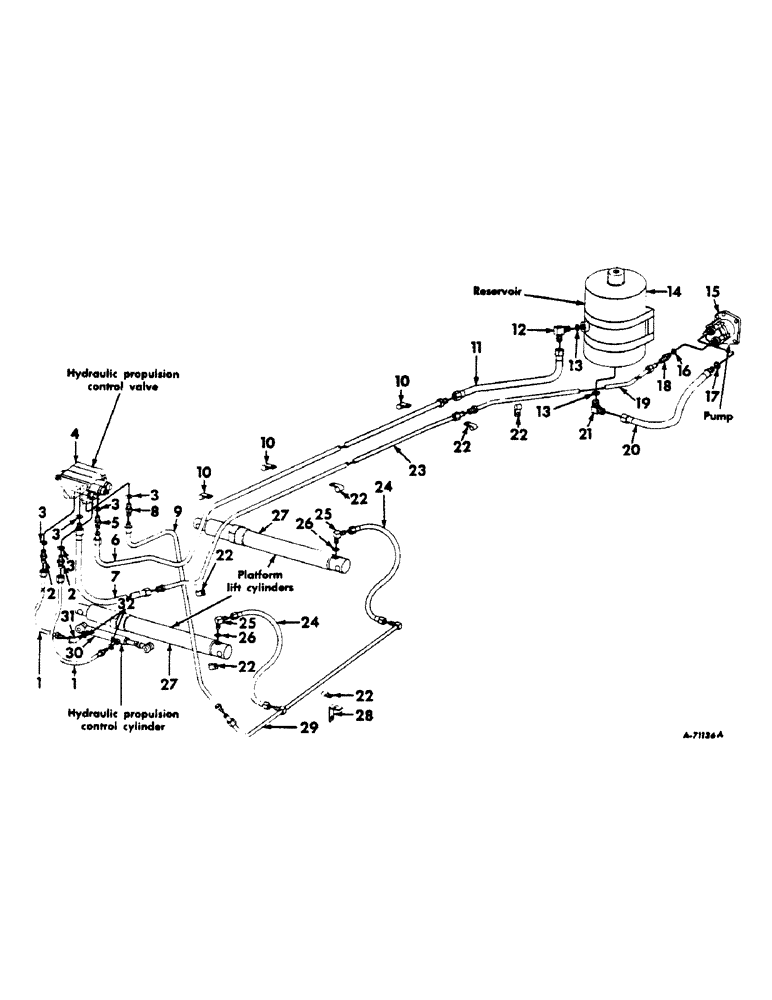

Запчасти Case IH 303 (156) - PLATE LIFT AND PROPULSION CONTROLED HYDRAULIC DIAGRAM, MANUAL STEERING, SERIAL NO. 7277 AND BELOW (35) - HYDRAULIC SYSTEMS

1

574499R91

HOSE ASSY, propulsion control cyliner, For use with propulsion control cylinder, 574475R91

2шт.

1

939480R91

HOSE

ASSY, propulsion control cylinder, 20 in, For use with propulsion control cylinder, 387864R91

1шт.

2

629349R1

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, propulsion control

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

propulsion drive and platform lift valve

5шт.

4

156201C91

HYDRAULIC VALVE

VALVE ASSY, propulsion drive and platform lift, For components see list of parts under details of hydraulic propulsion drive and platform lift valve

1шт.

5

574478R1

UNION

CONNECTOR, return tube

1шт.

6

628436R11

TUBE W/NUT AND SLEEVE ASSY, front return, grain tank 0.625" OD, 77.88, 4" Length

1шт.

6

654730R11

TUBE W/NUT AND SLEEVE ASSY, front return, bagger

1шт.

7

628437R91

HOSE

ASSY, front pressure

1шт.

8

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, platform lift tube

1шт.

9

628434R11

TUBE W/NUT AND SLEEVE ASSY, platform lift cylinder upper 1" OD, 39.56, 11.68" Length

1шт.

10

567895R2

CLIP, tube

3шт.

11

628440R91

HOSE ASSY, platform lift return

1шт.

12

633460R1

X

ELBOW, reservoir return

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

reservoir connector

2шт.

14

633382R91

RESERVOIR ASSY, hydraulic oil, For component parts see list of parts under details of hydraulic reservoir brace and supports

1шт.

15

631041R91

PUMP ASSY, hydraulic, For components parts see list of parts under details of platform hydraulic lift pump

1шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

pressure connector

1шт.

17

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

pump suction hose

1шт.

18

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, pump pressure

1шт.

19

628435R11

TUBE W/NUT AND SLEEVE ASSY, rear pressure 1" OD, 31.06, 10.06" Length

1шт.

20

628438R92

HOSE ASSY, suction

1шт.

21

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

reservoir suction

1шт.

22

587501R2

CLAMP

CLIP, tube

6шт.

5/16 x 3/4 mach bolt w/nut

5шт.

5/16 lockwasher

5шт.

23

628439R11

TUBE W/NUT AND SLEEVE ASSY, front pressure, grain tank 1" OD, 69.93, 2.3" Length

1шт.

23

654729R11

TUBE W/NUT AND SLEEVE ASSY, front pressure, bagger

1шт.

24

587582R91

HOSE ASSY.

HOSE ASSY, platform lift cylinder

2шт.

25

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

platform lift cylinder hose

2шт.

26

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

platform lift cylinder hose elbow

2шт.

27

570263R91

CYLINDER ASSY, platform hydraulic lift, Optional for 570251R91 cylinder assy, grain machines, Not for machines equipped with 18.4 in. tires, For components parts see list of parts under details of platform hydraulic lift cylinder

2шт.

27

570251R91

CYLINDER ASSY, platform hydraulic lift, Optional for 570263R91 cylinder assy, grain machines, Not for machines equipped with 18.4 in. tires, For components see list of parts under details of platform hydraulic lift cylinder

2шт.

27

574016R91

CYLINDER ASSY, platform hydraulic lift, Optional for 570252R91 cylinder assy, For machines equipped with 18.4 in. and 23.1 in. tires, For components see list of parts under details of platform hydraulic lift cylinder

2шт.

27

570252R91

CYLINDER ASSY, platform hydraulic lift, Optional for 574016R91 cylinder assy, For machines equipped with 18.4 and 23.1 in. tires, For components see parts under details of platform hydraulic cylinder

2шт.

28

583799R1

ANCHOR, platform lift cylinder lower tube clip

1шт.

29

631848R11

TUBE W/NUT AND SLEEVE ASSY, platform lift cylinder lower 1" OD, 31.38, 4.87" Length

1шт.

30

574475R91

CYLINDER ASSY, propulsion control, For component parts see list of parts under details of hydraulic propulsion control cylinder. Order 387864R91 cylinder assy, (2) hose assys, 939480R91 and (2) o-rings, 364839R1

1шт.

30

387864R91

CYLINDER ASSY, propulsion control, For component parts see list of parts under details of hydraulic propulsion control cylinder

1шт.

31

105422

ELBOW UNION

ELBOW, For use with propulsion control cylinder, 574475R91

1шт.

32

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for use with propulsion control cylinder, 387864R91

2шт.
