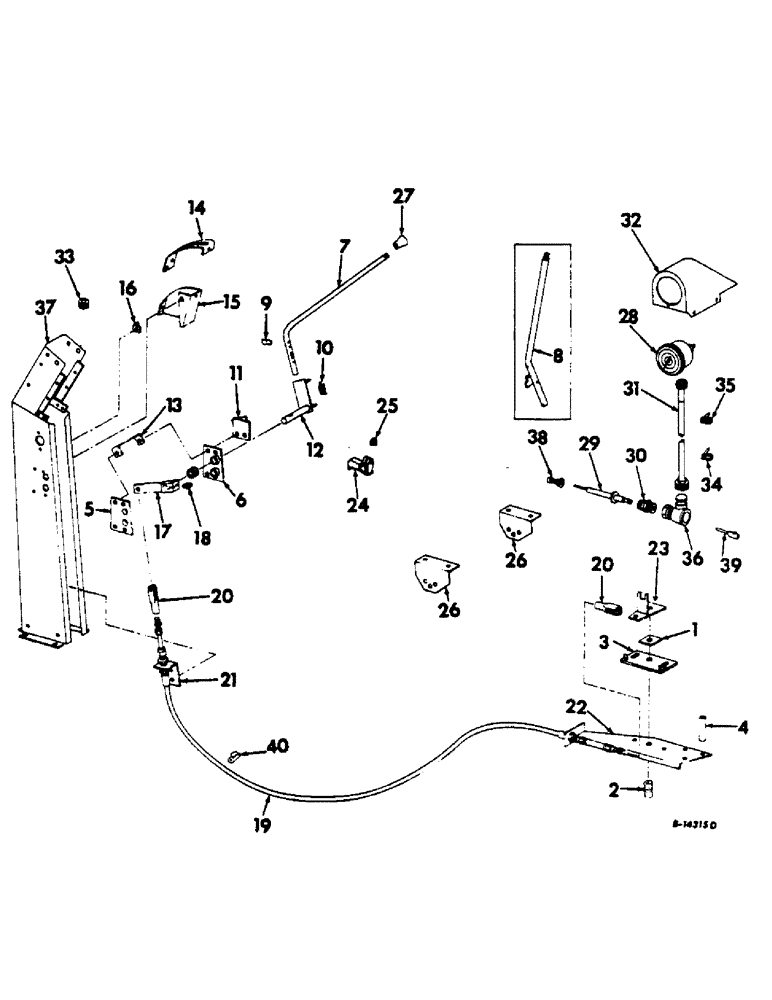

Запчасти Case IH 303 (131) - GROUND SPEED CONTROL AND SPEEDOMETER, FOR HYDROSTATIC GROUND DRIVE (33) - BRAKES & CONTROLS

1

150627C1

FRICTION WASHER

pump control arm

1шт.

2

28395H

SPRING

pump control arm

1шт.

3

150630C91

STOP

PLATE ASSY, pump control arm

1шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

2шт.

271500

SOCKET

7/16 hex

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

4

573174R1

SPACER,5/8" Tube x 3"

pump control arm support plate

3шт.

5

627407R91

PLATE ASSY, platform lift control left

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

3шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

627408R91

PLATE ASSY, platform lift control right

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

1шт.

17424R1

BOLT,Hex, 1/4" - 20 x 1"

1/4 x 1 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

7

155026C1

LEVER, ground speed control

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

1шт.

9

NOT USED

1шт.

9

152215C1

STRIP, ground speed indicator

1шт.

436668

SCREW, no. 6 x 7/8 C-Z pan hed

1шт.

134530

NUT,Hex, #6 - 32

1шт.

492-11006

LOCK WASHER,#6

Washer, Lock, #6

1шт.

10

151924C1

SPRING

ground speed control lever

1шт.

17444R1

BOLT, 1/4 x 1-1/4 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga

1шт.

11

151921C91

BRACKET ASSY, ground speed neutral stop

1шт.

12

155023C91

BRACKET ASSY, ground speed lever

1шт.

13

151925C1

CLEVIS, steering cover tie

1шт.

14

151907C1

INDICATOR, ground speed

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan-hd sltd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

15

151908C1

COVER, ground speed control lever

1шт.

17043

BOLT, 1/4 x 1/2 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

935612R1

BRACKET, ground speed control lever cover

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

151915C91

ARM ASSY, ground speed control lever

1шт.

18

28459KA

WASHER

ground speed control lever arm

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

151909C91

CABLE PULLING GRIP

CABLE ASSY, ground speed control

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

20

104037

CLEVIS

ground speed control cable

2шт.

NLS

NO LONGER SERVICED

5/16 x 31/32 rod end

2шт.

103374

COTTER PIN,3/32" x 1"

PIN, 3/32 x 1-1/4 cot

2шт.

21

151914C1

ANGLE, cable anchor front

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

151911C91

BRACKET ASSY, pump control

1шт.

23

151917C91

ARM

ASSY, pump control actuating

1шт.

24

155025C1

PAWL, ground speed control lever

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

28459KA

WASHER

ground speed control lever pawl

1шт.

26

627411R1

BRACKET HYDRAULIC VALVE

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

27

559577R1

KNOB

ground speed control lever, Serial no. 11553 & below

1шт.

27

163574C1

KNOB

ground speed control lever, Serial no. 11554 & above

1шт.

28

161258C91

SPEEDOMETER ASSY, Includes ref. nos. 28 thru 36, regular for hydrostatic ground drive, attachment for belt drive machines, Not two-speed gear box

1шт.

29

673050R91

SHAFT

TIP & WASHER ASSY, speedometer

1шт.

30

128584HX

SLEEVE

& SEAL ASSY, speedometer

1шт.

31

156042C91

SHAFT ASSY.

SHAFT ASSY, speedometer flexible

1шт.

32

156045C1

HOUSING, speedometer

1шт.

178574

WASHER

1/4 x 1/2 C-Z pan-hd self tapping

1шт.

33

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

1/2 rubber

1шт.

34

702093C1

CABLE TIE

CLAMP, speedometer flexible shaft

2шт.

35

702093C1

CABLE TIE

CLAMP, speedometer flexible shaft

2шт.

36

160701C1

DRIVE

JOINT, speedometer flexible shaft, For 27/28 gear transmission and 18.4/15-26 or 23.1/18-26 main wheel tires

1шт.

36

156234C91

JOINT ASSY, speedometer flexible shaft, for 27/28 gear transmission for 14.9/13-26 or 16.9/14-26 main wheel tires

1шт.

36

161275C1

JOINT, speedometer flexible shaft, For 21/34 gear transmission

1шт.

36

161276C1

JOINT, speedometer flexible shaft, For 15/40 gear transmission

1шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga washer

1шт.

37

156046C91

COVER ASSY, steering

1шт.

38

374639R1

COUPLING

transmission main

1шт.

39

163617C1

PIN

TIP, angle joint drive

1шт.

40

589980R2

CLIP

speedometer flexible shaft

1шт.
