Запчасти Case IH 303 (127) - PLATFORM LIFT CONTROLS (33) - BRAKES & CONTROLS

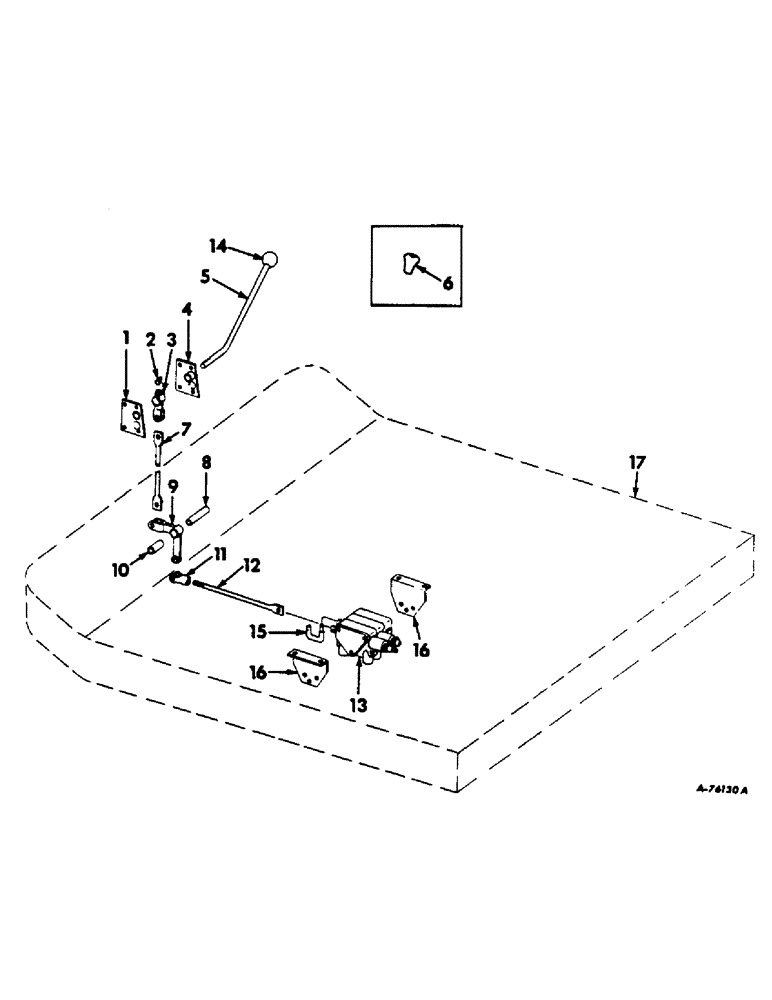

Схема запчастей Case IH 303 - (127) - PLATFORM LIFT CONTROLS (33) - BRAKES & CONTROLS
13
15
16
14
16
4
3
1
9
10
2
12
7
5
11
6
17
8

Артикул

Название

Примечание

Количество

1

627407R91

PLATE W/HOUSING, platform lift control LH

1шт.

1/4 x 1/2 mach bolt w/nut

4шт.

1/4 lockwasher

4шт.

2

28459KA

WASHER

upper arm

1шт.

3

627415R1

ARM, upper

1шт.

1/8 x 1 cot pin

1шт.

114785

3/8 x 1-3/32 rod end pin

1шт.

3/8 x 1 cap screw

1шт.

3/8 lockwasher

1шт.

4

627408R91

PLATE W/HOUSING, platform lift control RH

1шт.

1/4 x 1/2 mach bolt w/nut

4шт.

1/4 lockwasher

4шт.

5

627412R1

LEVER, platform lift, Serial no. 7277 & below

1шт.

5

939242R1

LEVER, platform lift, Serial no. 7278 & above, Not hydrostatic ground drive

1шт.

5

151910C1

LEVER, platform lift, For hydrostatic ground drive

1шт.

6

629626R1

KNOB, platform lift lever, Serial no. 2750 & below

1шт.

6

634769R1

KNOB, platform lift lever, Serial no., Serial Range: 2751-7277

1шт.

7

627416R1

ROD, platform lift vertical, Serial no. 7277 & below

1шт.

7

627431R1

ROD, platform lift vertical, Serial no. 7278 & above

1шт.

8

627417R1

BUSHING, lower bellcrank

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga washer

3шт.

9

627414R1

BELLCRANK, lower

1шт.

1/8 x 1 xot pin

1шт.

NLS

NO LONGER SERVICED

3/8 x 1-3/32 rod end pin

1шт.

10

564737R1

SPACER,7/8" Tube x 2 1/16"

lower bellcrank arm

1шт.

11

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2 in.

1шт.

103498

CLEVIS PIN,1/2" x 1.360"

1/2 x 1-27/64 rod end pin

1шт.

1/8 x 1 cot pin

1шт.

12

627413R1

ROD, rear, Serial no. 7277 & below

1шт.

12

939236R1

ROD, rear, Serial no. 7278 & above

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

1/2-20UNF jam nut

1шт.

60530H

CLEVIS PIN,3/8" x 1"

3/8 x 1 rod end pin

1шт.

3/32 x 3/4 cot pin

1шт.

13

156201C91

HYDRAULIC VALVE

VALVE ASSY, propulsion drive and platform lift, For components see list of parts under details of hydraulic propulsion drive and platform lift valve

1шт.

14

559577R1

KNOB

platform lift lever, Serial no., Serial Range: 7278-11553

1шт.

14

163574C1

KNOB

platform lift lever, Serial no. 11554 & above

1шт.

15

633673R1

ROD, rear control

1шт.

1/8 x 1 cot pin

2шт.

16

627411R1

BRACKET, hydraulic valve

2шт.

3/8 x 3/4 cap screw

3шт.

3/8 lockwasher

3шт.

17

PLATFORM ASSY, operators, Refer to operators deck and ladder for listing

1шт.

Выбрано товаров: 42
