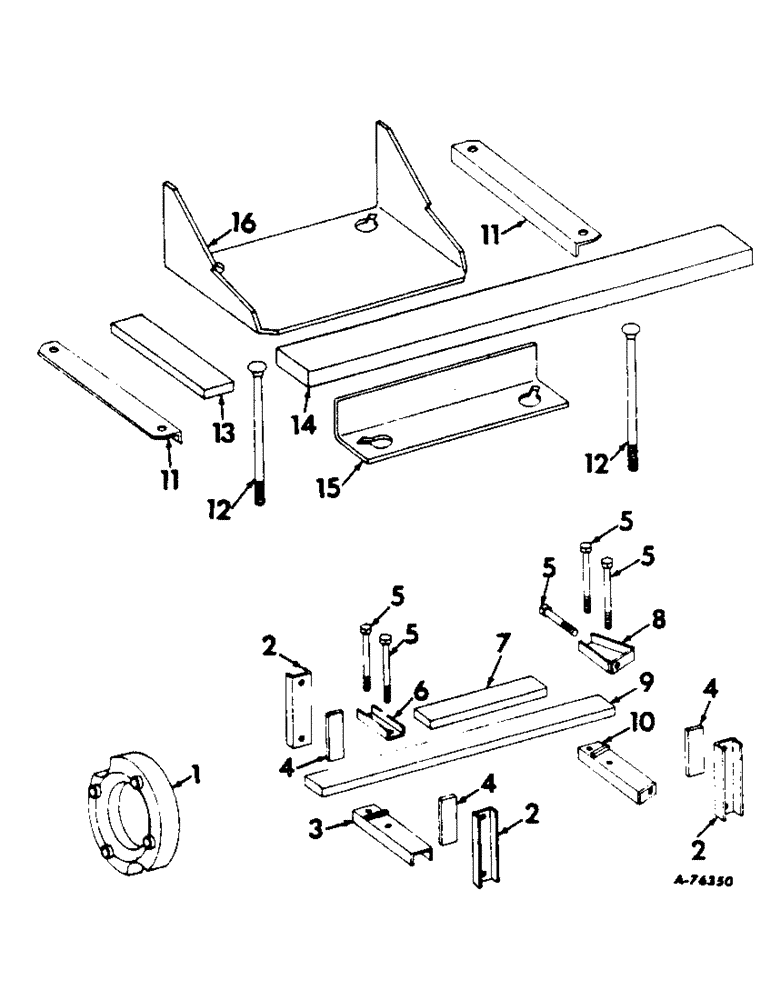

Запчасти Case IH 303 (119) - GUIDE WHEEL AXLE WEIGHTS (27) - REAR AXLE SYSTEM

1

370685R1

WEIGHT

guide wheel, 43 lbs

2шт.

2

654329R1

CHANNEL, counter balance weight tie

3шт.

3

654328R11

CHANNEL ASSY, counter balance weight lower

1шт.

4

654445R1

FILLER, counter balance weight

5шт.

5

121614R1

BOLT, 5/8 x 14-1/2 C-Z hex-hd mach

2шт.

5

19686R1

BOLT,Hex, 5/8"-11 x 7 1/2", G2

5/8 x 7-1/2 C-Z hex-hd mach

4шт.

5

18833R1

BOLT,Hex, 5/8" - 11 x 7"

5/8 x 7 C-Z hex-hd mach

1шт.

5

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2-1/2 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

654331R1

CHANNEL, counter balance weight upper

1шт.

7

654330R1

BAR, counter balance weight, short, 16 lb

8шт.

8

153575C91

SUPPORT ASSY, counter balance weight

1шт.

9

153611C1

BAR, counter balance weight, long, 40 lbs

1шт.

10

163578C1

CHANNEL ASSY, counter balance weight right

1шт.

11

161244C1

ANGLE, counter balance weight

2шт.

12

21606R1

BOLT, 5/8 x 10 C-Z sq-nk crg

2шт.

12

21608R1

BOLT, 5/8 x 13 C-Z sq-nk crg

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

654445R1

FILLER, counter balance weight

4шт.

14

161240C1

BAR, counter balance weight, 30 lbs

20шт.

15

161242C1

ANGLE, counter balance weight

1шт.

16

161245C1

SECTION, counter balance weight

1шт.
