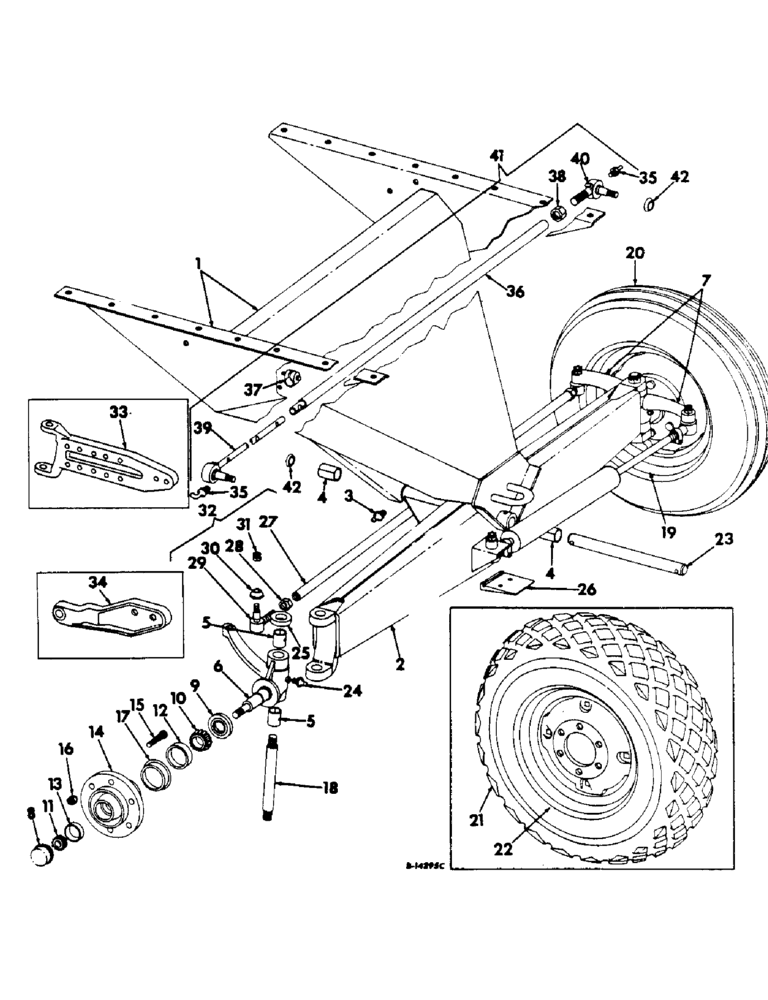

Запчасти Case IH 303 (117) - GUIDE WHEEL AXLE SUPPORT, RIM, DISC, TIRE, AND TUBE, RICE, SERIAL NO. 7278 AND ABOVE (27) - REAR AXLE SYSTEM

1

936535R92

SUPPORT ASSY, guide wheel axle

1шт.

.

17475R1

5/8 x 1-1/2 mach bolt w/nut

14шт.

.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8 x 1-3/4 mach bolt w/nut

2шт.

.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

2шт.

.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

2

151662C91

AXLE ASSY, guide wheel, Includes ref. no. 4, special Little Rock district, non-adjustable

1шт.

2

936523R91

AXLE ASSY, guide wheel, Includes ref. no. 4, rice special w/18.4/15-26 main wheel tires, non-adjustable

1шт.

2

936524R91

AXLE ASSY, guide wheel, Includes ref. no. 4, rice special with 23.1-26 main wheel tires, non-adjustable

1шт.

2

154710C91

AXLE ASSY, guide wheel, Includes ref. no. 4, adjustable 52 to 68 in.

1шт.

2

154707C91

AXLE ASSY, guide wheel, Includes ref. no. 4, adjustable 68 to 84 in.

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

4

575789R1

BUSHING

axle pivot tube

2шт.

5

574294R1

BUSHING

spindle

4шт.

6

155793C91

KNUCKLE ASSY, guide wheel LH, Includes ref. no. 5

1шт.

.

70120D

SLOTTED NUT,7/8"-14

7/8-14 UNF slt jam nut

1шт.

.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

.

612889R1

WASHER

29/32 x 1-3/4 x 9 ga washer

1шт.

7

155791C91

KNUCKLE ASSY, guide wheel RH, Includes ref. no. 5

1шт.

.

70120D

SLOTTED NUT,7/8"-14

7/8-14UNF slt jam nut

1шт.

.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

.

612889R1

WASHER

29/32 x 1-3/4 x 9 ga washer

1шт.

8

663906R1

CAP

wheel hub

2шт.

9

654674R91

OIL SEAL

OIL SEAL, wheel hub

2шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING, taper roller cone wheel hub inner

2шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, taper roller cone wheel hub outer

2шт.

12

663558R1

BEARING CUP

BEARING, taper roller cup wheel inner

2шт.

13

651817R1

BEARING CUP

BEARING, taper roller cup wheel outer

2шт.

13

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

14

654661R91

HUB CAP

HUB ASSY, guide wheel, Includes ref. nos. 10, 11, 12, 13, 15, 16 and 17

2шт.

15

456267R1

BOLT,1/2" - 20 x 1 7/8"

wheel hub

12шт.

16

453770R1

WHEEL NUT

wheel hub bolt

12шт.

17

654675R1

RING

wheel hub oil seal wear

2шт.

18

587662R1

STUD

KING PIN, spindle

2шт.

.

427642

SLOTTED NUT,7/8"-9, G5

7/8-9 slt hex nut

4шт.

.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga washer

4шт.

19

370780R92

WHEEL

RIM AND DISC ASSY, guide wheel, 5.50 x 18

2шт.

20

TIRE, guide wheel, 7.50-18, 4-ply, code F-1

2шт.

20

TIRE, guide wheel, 7.50-18, 4-ply, code F-2

2шт.

20

TIRE, guide wheel, 7.50-18, 6-ply, code I-1

2шт.

20

TUBE, guide wheel, 7.50-18

2шт.

21

NOT USED

1шт.

22

NOT USED

1шт.

23

627935R1

AXLE PIN

PIN, pivot

1шт.

24

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

25

73094R91

BEARING ASSY,1.135" ID x 2.094" OD x 0.625"

BEARING, spindle thrust

2шт.

26

NOT USED

1шт.

27

587755R1

TUBE, tie rod guide wheel, not adjustable 40.94" Length

1шт.

28

366431R1

JAM NUT

LOCKNUT, LH

1шт.

28

366432R1

JAM NUT

LOCKNUT, RH

1шт.

29

154823C91

SOCKET

END, tie rod LH

1шт.

29

154824C91

END

tie rod RH

1шт.

.

108636

PIN

3/32 x 1-1/8 cotter pin

2шт.

.

578274R1

WASHER

21/32 x 1 x 11 ga washer, non-adjustable

2шт.

30

365855R1

SEAL

tie rod

2шт.

31

102648

SLOTTED NUT,9/16"-18, G5

2шт.

32

587747R91

TIE ROD ASSY, non-adjustable

1шт.

.

1/2-20 C-Z hex nut

1шт.

.

1/2 C-Z internal tooth lockwasher

1шт.

33

154713C1

YOKE, guide wheel axle, For adjustable axle

2шт.

.

5/8 x 3-3/4 C-Z cap screw

8шт.

.

5/8 x 4 C-Z cap screw

4шт.

.

5/8 C-Z hex nut

8шт.

.

5/8 C-Z lockwasher

8шт.

.

21/32 x 1-1/2 x 11 ga washer

6шт.

34

154714C1

ANCHOR, steering cylinder, For adjustable axle

1шт.

35

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , For adjustable tie rod end 1/8"-27 x .66 lg

2шт.

36

155236C1

TUBE, For 52 to 68 in. adj axle

1шт.

36

155237C1

TUBE, For 68 to 84 in. adj axle

1шт.

37

359986R1

CLAMP

1шт.

.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

1/2 x 2 hex-hd cap screw

1шт.

.

25-118

NUT,1/2"-20, G5

1/2 hex nut

1шт.

38

374062R1

JAM NUT

NUT, tie rod socket

1шт.

39

155232C91

END

ASSY, tie rod

1шт.

40

155234C91

SOCKET

ASSY

1шт.

.

125258

SLOTTED NUT,9/16"-18, G5

2шт.

.

103381

1/8 x 1-1/2 C-Z cotter pin

2шт.

.

578274R1

WASHER

21/32 x 1 x 11 ga washer

2шт.

41

154705C91

TIE ROD ASSY, guide wheel, For adjustable axle 52 to 68 in.

1шт.

41

154704C91

TIE ROD ASSY, guide wheel, For adjustable axle 68 to 84 in.

1шт.

42

189466R1

BOOT

SEAL, guide wheel tie rod socket

2шт.
