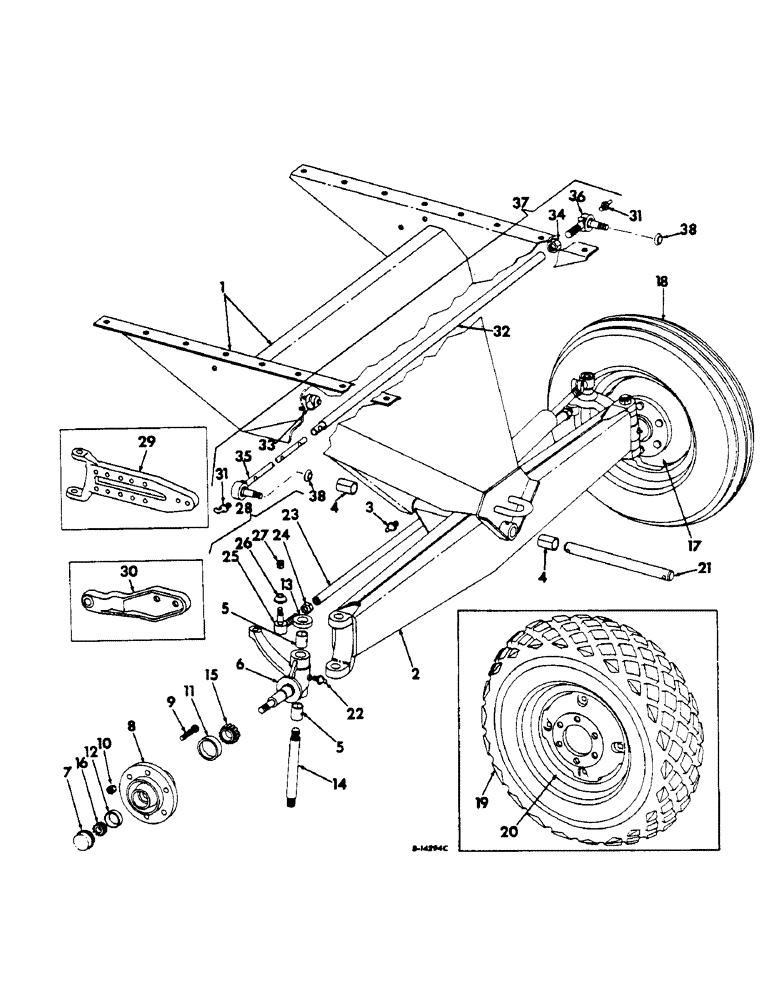

Запчасти Case IH 303 (115) - GUIDE WHEEL AXLE SUPPORT, RIM, DISC, TIRE AND TUBE, GRAIN, SERIAL NO. 7278 AND ABOVE (27) - REAR AXLE SYSTEM

1

936535R92

SUPPORT ASSY, guide wheel axle

1шт.

5/8 x 1-1/2 mach bolt w/nut

14шт.

5/8 x 1-3/4 mach bolt w/nut

2шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

2шт.

5/8 lockwasher

16шт.

2

151662C91

AXLE ASSY, guide wheel, Includes ref. no. 4, non-adjustable

1шт.

2

154710C91

AXLE ASSY, guide wheel, Includes ref. no. 4, adjustable, 52 to 68 in.

1шт.

2

154707C91

AXLE ASSY, guide wheel, Includes ref. no. 4, adjustable, 68 to 84 in.

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 lubrication straight

1шт.

4

575789R1

BUSHING

axle pivot tube

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

5

574294R1

BUSHING

spindle

2шт.

6

654625R91

KNUCKLE

ASSY, guide wheel LH, Includes ref. no. 5

1шт.

6

654627R91

KNUCKLE ASSY, guide wheel RH, Includes ref. no. 5, non-adjustable axle

1шт.

6

154715C91

KNUCKLE

ASSY, guide wheel RH, Includes ref. no. 5, For adjustable axle

1шт.

69442D

NUT

3/4-16 slt-hex jam nut

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga washer

2шт.

7

663908R1

CAP

wheel hub

2шт.

8

936538R91

HUB

ASSY, guide wheel, Includes ref. nos. 9, 10, 11, 12, 15 & 16

2шт.

9

456267R1

BOLT,1/2" - 20 x 1 7/8"

wheel hub

12шт.

10

453770R1

WHEEL NUT

wheel hub bolt

12шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Taper roller wheel inner

2шт.

12

371883R1

BEARING CUP

Taper roller wheel outer

2шт.

13

73094R91

BEARING ASSY,1.135" ID x 2.094" OD x 0.625"

BEARING, roller spindle thrust

2шт.

14

587662R1

STUD

KING PIN, spindle

2шт.

427642

SLOTTED NUT,7/8"-9, G5

7/8-9 slt-hex nut

2шт.

1/8 x 1-1/4 cotter pin

4шт.

615196R1

WASHER

29/32 x 1-3/4 x 16 ga washer

4шт.

15

459913R91

BEARING CONE

BEARING, taper roller cone wheel inner

2шт.

16

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Taper roller wheel outer

2шт.

17

153877C91

RIM AND DISC ASSY, guide wheel, 4.50 x 16CC

2шт.

17

370780R92

WHEEL

RIM AND DISC ASSY, guide wheel, 5.50 x 18

2шт.

18

TIRE, guide wheel, 6.00-16, 4-ply, code I-1

2шт.

18

TIRE, guide wheel, 6.00-16, 6-ply, code I-1, special

2шт.

18

TIRE, guide wheel, 7.50-18, 4-ply, code F-1, special

2шт.

18

TIRE, guide wheel, 7.50-18, 4-ply, code I-1

2шт.

18

TIRE, guide wheel, 7.50-18, 6-ply, code I-1

2шт.

18

TUBE, guide wheel, 6.00-16

2шт.

18

TUBE, guide wheel, 7.50-18

2шт.

19

NOT USED

1шт.

20

NOT USED

1шт.

21

627935R1

AXLE PIN

PIN, pivot

1шт.

22

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

23

587758R1

TUBE, tie rod guide wheel, non-adjustable 55.88" Length

1шт.

24

366431R1

JAM NUT

LOCKNUT, LH

1шт.

24

366432R1

JAM NUT

LOCKNUT, RH

1шт.

25

154823C91

SOCKET

END, tie rod LH

1шт.

25

154824C91

END

tie rod RH, non-adjustable

1шт.

108636

PIN

3/32 x 1-1/8 cotter pin

2шт.

578274R1

WASHER

21/32 x 1 x 11 ga washer

2шт.

26

365855R1

SEAL

tie rod

2шт.

27

102648

SLOTTED NUT,9/16"-18, G5

2шт.

28

578750R91

TIE ROD ASSY, guide wheel axle, non-adjustable

1шт.

29

154713C1

YOKE, guide wheel axle, For adjustable axle

2шт.

5/8 x 3-3/4 C-Z hex-hd cap screw

8шт.

5/8 x 4 C-Z cap screw

4шт.

5/8 C-Z hex, nut

8шт.

5/8 C-Z lockwasher

8шт.

21/32 x 1-1/2 x 11 ga washer

6шт.

30

154714C1

ANCHOR, steering cylinder, For adjustable axle

1шт.

31

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , For adjustable tie rod end 1/8"-27 x .66 lg

2шт.

32

155236C1

TUBE, For 52 to 68 in. adj axle

1шт.

32

155237C1

TUBE, For 68 to 84 in. adj axle

1шт.

33

359986R1

CLAMP

1шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

1/2 x 2 hex-hd cap screw

1шт.

25-118

NUT,1/2"-20, G5

1/2 hex nut

1шт.

34

374062R1

JAM NUT

NUT, tie rod socket

1шт.

35

155232C91

END

ASSY, tie rod

1шт.

36

155234C91

SOCKET

ASSY

1шт.

125258

SLOTTED NUT,9/16"-18, G5

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

578274R1

WASHER

21/32 x 1 x 11 ga washer

2шт.

37

154705C91

TIE ROD ASSY, guide wheel, For adjustable axle 52 to 68 in.

1шт.

37

154704C91

TIE ROD ASSY, guide wheel, For adjustable axle 68 to 84 in.

1шт.

38

189466R1

BOOT

SEAL, guide wheel tie rod socket

2шт.
