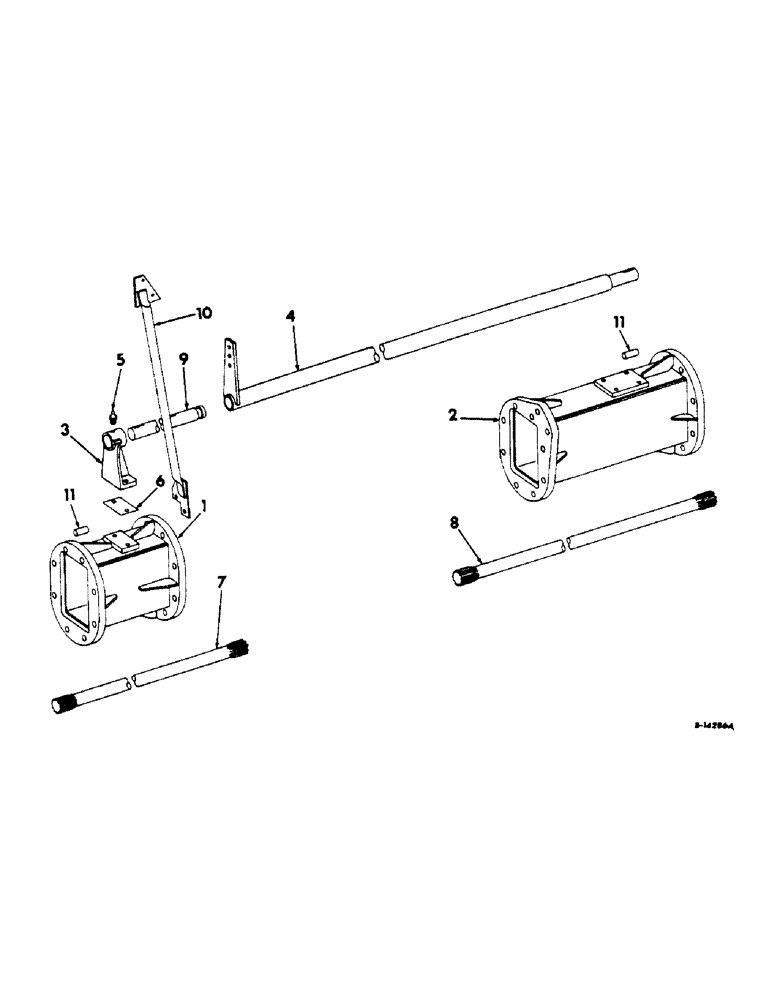

Запчасти Case IH 303 (040) - MAIN AXLE EXTENSION (25) - FRONT AXLE SYSTEM

1

151229C91

EXTENSION ASSY, main axle LH

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 cap screw

6шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/2 cap screw

2шт.

629358R1

NUT

5/8 nut

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z internal tooth lockwasher

4шт.

2

151232C91

EXTENSION ASSY, main axle RH

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 cap screw

6шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/4 cap screw

2шт.

629358R1

NUT

5/8 nut

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z internal tooth lockwasher

4шт.

3

150428C1

HOUSING, wheel brake LH pivot

1шт.

4

151236C91

PIPE ASSY, wheel brake RH torque

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

6

150427C1

STRAP, wheel brake LH pivot housing

4шт.

7

151234C1

SHAFT, axle drive LH

1шт.

8

151235C1

SHAFT, axle drive RH

1шт.

9

151238C1

SHAFT, wheel brake LH

1шт.

10

151239C91

BRACE ASSY, main axle extension

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z mach bolt w/nut

2шт.

629358R1

NUT

5/8 nut

1шт.

20105R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

5/8 x 2-3/4 C-Z cap screw

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

57400R1

DOWEL, main axle extension

2шт.
