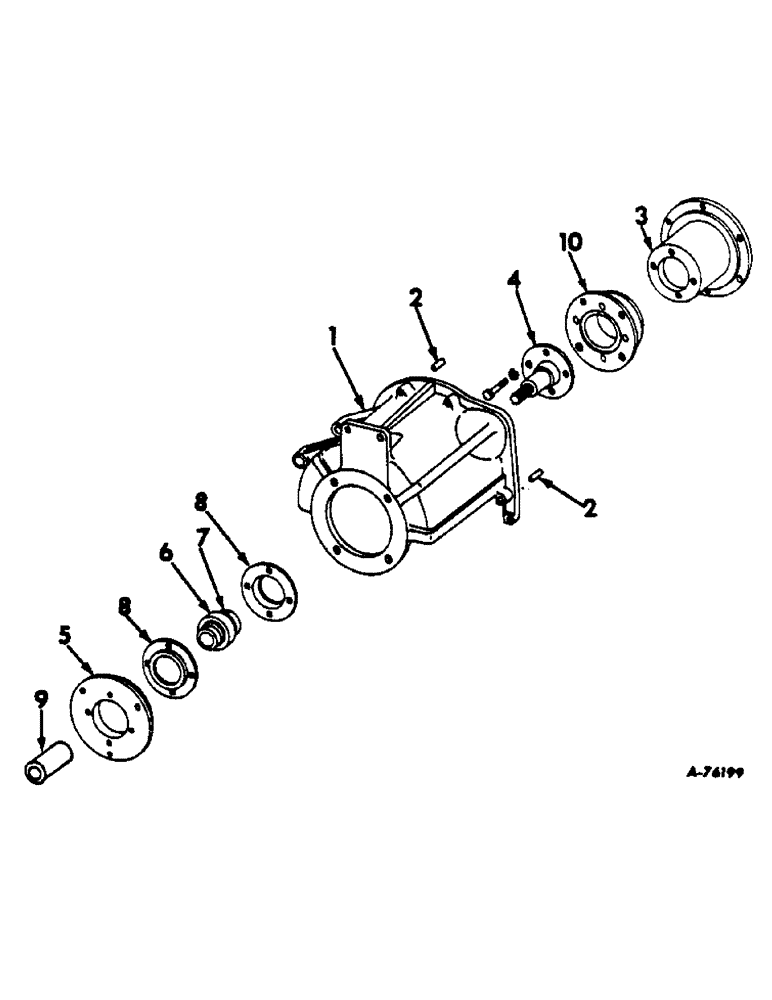

Запчасти Case IH 303 (139) - POWER TAKE OFF, FOR HYDROSTATIC GROUND DRIVE (16) - TRACTION VARIATOR

1

153186C1

HOUSING, power take off

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 C-Z cap

2шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

SCREW, 7/16 x 2-1/4 C-Z cap

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 C-Z cap

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

2

1769Y

DOWEL, power take off housing

2шт.

3

276162R1

PULLEY, separator drive

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

153189C1

SHAFT, hyd pump drive

1шт.

5

153188C1

RETAINER, hyd pump drive shaft brg

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 C-Z cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

6

936998R91

BEARING

hyd pump shaft ball

1шт.

7

455112R11

COLLAR

ASSY, bearing locking

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-hd socket

1шт.

8

663562R1

FLANGE

hyd pump drive shaft brg

2шт.

18780C1

BOLT, 1/2 x 1-1/34 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

9

389441R1

COUPLING

hyd pump drive shaft

1шт.

10

153187C1

PULLEY, grain hopper unloader

1шт.
