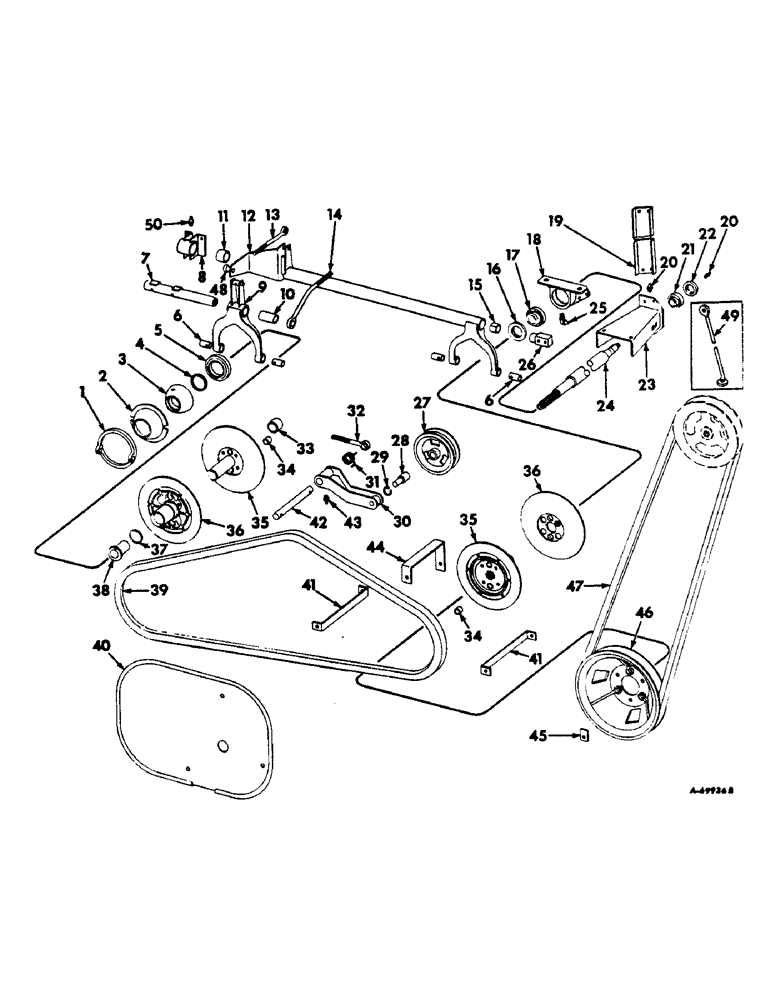

Запчасти Case IH 303 (125) - PROPULSION VARIABLE SPEED AND JACKSHAFT AND DRIVE (16) - TRACTION VARIATOR

1

565367R1

SHOE, propulsion variable speed sheave adj outer

2шт.

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

4шт.

2

565366R1

OIL SEAL

RING, propulsion variable speed sheave adj outer

2шт.

3

564797R1

OIL SEAL

RING, propulsion variable speed sheave adj inner

2шт.

103877

PLUG

1/8 sq-hd pipe plug

2шт.

4

565797R1

WASHER, propulsion sheave adj ring felt

2шт.

5

559302R91

BALL BEARING,2.7559" ID x 4.3307" OD x 0.7874"

ball

2шт.

6

565345R1

SHAFT

propulsion sheave adj arm pivot

4шт.

7

565416R91

SHAFT W/CLIP, propulsion sheave outer pivot

1шт.

1/2 x 2-1/2 cap screw

2шт.

1/2 nut

2шт.

1/2 lockwasher

2шт.

1-17/32 x 2 x 16 ga washer

8шт.

8

565352R91

SUPPORT

BRACKET W/BUSHING ASSY, propulsion sheave support post, Includes ref. no. 11

1шт.

9

565410R91

ARM W/BUSHING ASSY, propulsion sheave adjusting pivot, Includes ref. no. 10

1шт.

10

565414R1

BUSHING

Serial no., Serial Range: 501-4806

2шт.

10

936743R1

BUSHING, Serial no. 4807 & above

2шт.

11

565357R1

BUSHING, Serial no., Serial Range: 501-4806

1шт.

11

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

Serial no. 4807 & above

2шт.

12

628234R92

LEVER W/BALL AND BUSHING ASSY, propulsion sheave support, Includes ref. nos. 15, 48 and lever, 936600R91, Serial no., Serial Range: 501-4806

1шт.

12

936600R91

LEVER W/BUSHING ASSY, propulsion sheave support, Includes ref. no. 15, Serial no. 4807 & above

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication, For use with lever assy, 936600R91

1шт.

3/16 x 1 cotter pin

1шт.

Q1396

AXLE PIN,1/2" x 1 5/8"

1/2 x 1-5/8 dld pin

1шт.

1-17/32 x 2 x 16 ga washer

2шт.

565665R1

1-29/32 x 2-1/2 x 16 ga washer

6шт.

13

565415R1

BOLT,1/2" - 20 x 8"

propulsion sheave adjusting arm connecting

1шт.

1/2-20NF C-Z nut

2шт.

14

628236R1

BRACE, propulsion sheave pivot shaft, Serial no., Serial Range: 501-4806

1шт.

14

936724R1

BRACE, propulsion sheave pivot shaft, Serial no. 4807 & above

1шт.

5/8 x 1-3/4 cap screw

1шт.

5/8 lockwasher

1шт.

557269R1

21/32 x 2 x 16 ga washer

2шт.

15

565414R1

BUSHING

For use with lever assy, 628234R92, ref. no. 12, Serial no., Serial Range: 501-4806

1шт.

15

936743R1

BUSHING, For use with lever assy 936600R91, ref. no. 12, Serial no. 4807 & above

2шт.

16

631705R91

SEAL

propulsion jackshaft LH bearing

1шт.

17

631986R91

BALL BEARING,1.6255" ID x 85 mm OD x 1.6875"

ball

1шт.

18

627545R11

SUPPORT W/BEARING, and seal assy, propulsion jackshaft LH bearing, Includes ref. nos. 16 and 17

1шт.

5/16 x 1 cap screw

2шт.

5/16 lockwasher

2шт.

19

631353R1

BRACE, propulsion jackshaft RH bearing support, grain tank

1шт.

3/8 x 3/4 crg bolt w/nut

4шт.

3/8 lockwasher

4шт.

20

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

21

632034R91

BALL BEARING,30 mm ID x 62 mm OD x 24 mm

ball

1шт.

22

632033R91

OIL SEAL

OIL SEAL, propulsion jackshaft RH bearing

1шт.

23

631349R91

SUPPORT W/PLATE, propulsion jackshaft RH bearing

1шт.

1/2 x 1-1/4 mach bolt w/nut

2шт.

1/2 lockwasher

2шт.

24

628233R11

JACKSHAFT ASSY, propulsion

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

425-1516

JAM NUT,Jam, 1"-14, G5

1-14NF jam nut

1шт.

3/32 x 1-1/4 cotter pin

1шт.

550610R1

WASHER

17/32 x 1-1/2 x 3/16 washer

1шт.

615231R1

WASHER

1-1/32 x 2-1/4 x 11 ga washer

1шт.

551768R1

1-21/32 x 2-1/2 x 16 ga washer

3шт.

25

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg elbow lubrication

1шт.

26

569943R1

SUPPORT, propulsion sheave pivot shaft, Serial no., Serial Range: 501-4806

1шт.

26

936749R1

SUPPORT, propulsion sheave pivot shaft, Serial no. 4807 & above

1шт.

1/2 x 3 mach bolt w/nut

2шт.

1/2 lockwasher

2шт.

27

569963R1

PULLEY

SHEAVE, propulsion drive belt tightener

1шт.

28

ST634

BEARING ASSY

BEARING, propulsion belt tightener

1шт.

29

559203R1

SNAP RING,#118, 1.260", Int, Spiral

propulsion belt tightener

1шт.

30

629519R1

ARM, propulsion drive belt tightener

1шт.

432482

PLUG,5/8"

5/8 button plug

1шт.

31

629521R1

SPRING

propulsion belt tightener

1шт.

32

559017R1

BOLT,Eye, 1/2" - 13 x 4 1/8", Full Thd

propulsion belt tightener spring

1шт.

1/2 C-Z nut

2шт.

17/32 x 1 x 16 ga washer

1шт.

33

632244R1

SPACER

propulsion sheave hub

1шт.

34

628704R1

BUSHING

4шт.

35

628706R91

SLEEVE W/BUSHING ASSY, propulsion variable speed drive sheave

2шт.

1/2 x 1-3/4 mach bolt w/nut

4шт.

1/2 x 2-1/4 mach bolt w/nut

4шт.

1/2 lockwasher

8шт.

36

574984R11

SHEAVE, propulsion drive adjustable half

2шт.

37

290028R1

O-RING

propulsion variable speed drive sheave

4шт.

38

574257R1

STOP

propulsion sheave transmission shaft

1шт.

39

935949R1

BELT

propulsion drive

1шт.

40

628413R11

SHIELD W/WIRE ASSY, propulsion variable speed sheave, grain tank machines, Serial no. 7277 & below, bagger machines, Serial no. 501 & above

1шт.

3/8 x 1 mach bolt w/nut

2шт.

1/2 x 1 mach bolt w/nut

1шт.

3/8 lockwasher

2шт.

1/2 lockwasher

1шт.

41

628416R1

SUPPORT, propulsion variable speed shield lower, grain tank machines, Serial no. 7277 & below, bagger machines, Serial no. 501 & above

1шт.

3/8 x 1 mach bolt w/nut

2шт.

3/8 lockwasher

2шт.

42

629520R1

SHAFT

propulsion belt tightener pivot

1шт.

1/4 x 1-1/2 cotter pin

1шт.

616252R1

LOCK PIN,3/8" x 2 1/8", Slotted

Pin, 3/8" x 2 1/8", Slotted

1шт.

1-1/32 x 1-3/4 x 16 ga washer

10шт.

43

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

44

628415R1

SUPPORT, propulsion variable speed shield upper, grain tank machines, Serial no. 7277 & below, bagger machines, Serial no. 501 & above

1шт.

45

570119R1

KEEPER, propulsion jackshaft locknut

1шт.

46

628883R1

SHEAVE, propulsion jackshaft driven

1шт.

47

150436C1

BELT

propulsion jackshaft drive

1шт.

48

936612R1

BALL, propulsion lever

1шт.

1/2-20UNF nut

1шт.

1/2 lockwasher

1шт.

49

935704R1

BRACE, propulsion jackshaft RH bearing support, bagger

1шт.

1/2 x 1-1/2 crg bolt w/nut

1шт.

1/2 x 1-1/2 mach bolt w/nut

1шт.

1/2 lockwasher

2шт.

31969H

17/32 x 1-1/2 x 16 ga washer

3шт.

50

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.
