(413) - C-221 ENGINE, 3-9/16 X 3-11/16, FLASHING WARNING LIGHT

Запчасти Case IH 303 (413) - C-221 ENGINE, 3-9/16 X 3-11/16, FLASHING WARNING LIGHT (10) - ENGINE

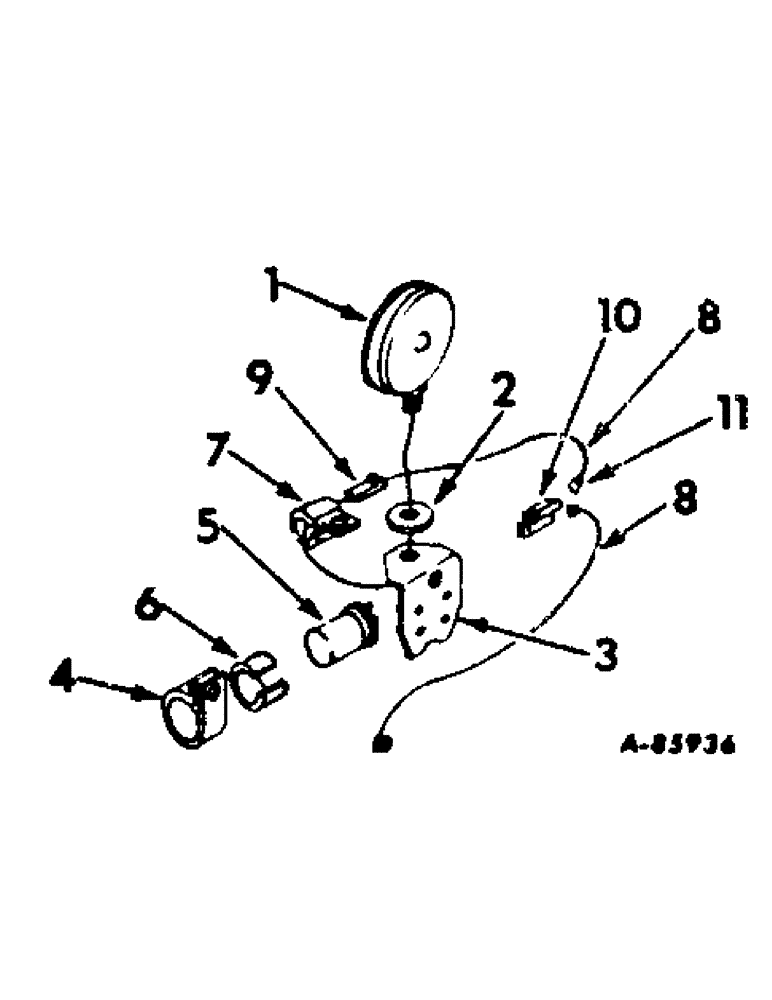

Схема запчастей Case IH 303 - (413) - C-221 ENGINE, 3-9/16 X 3-11/16, FLASHING WARNING LIGHT (10) - ENGINE
6
11
8
7
2
8
5
10
9
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

394714R91

PARTS ACCESSORY, flasher warning light, For combines not equipped with electric light also order fuse housing, 376852R91, fuse, 120151 and lighting switch, 394771R91

1шт.

1

394129R91

LIGHT

ASSY, flashing warning, Only serviceable item is lamp, 9417866

1шт.

2

394262R1

WASHER

flashing warning light

1шт.

120371

NUT,1/2"-20, G5

1шт.

3

394330R1

BRACKET, flashing light

1шт.

4

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

446179

WASHER,#12

1/4 C-Z plain

1шт.

5

394132R91

FLASHER UNIT

FLASHER ASSY, warning light

1шт.

6

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

7

358986R1

CABLE CLIP

CLIP, flasher light

1шт.

8

995056R1

CABLE

14-gauge, yellow, Order length in increments of one foot

1шт.

9

376749R1

BODY

connector

1шт.

10

899167R1

CONNECTOR, ELEC

CONNECTOR, single male

2шт.

11

879552R1

TERMINAL STRIP

TERMINAL

3шт.
