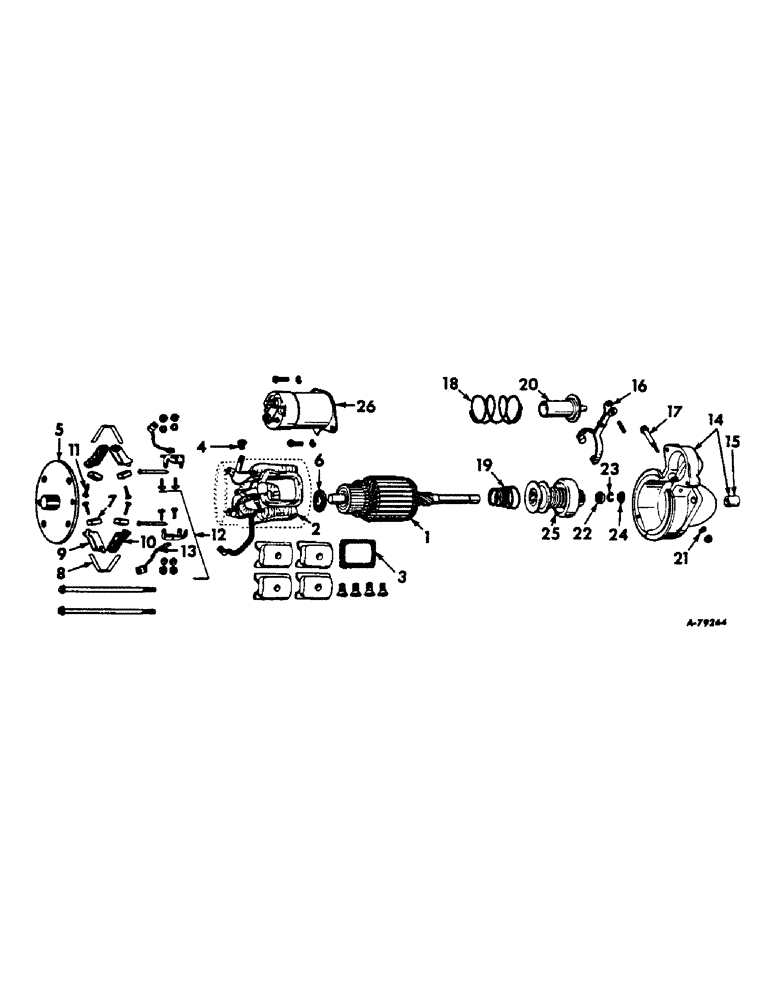

Запчасти Case IH 303 (411) - C-221 ENGINE, 3-9/16 X 3-11/16, CRANKING MOTOR, DELCO REMY (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1107679
SPARE PART MOTOR ASSY, cranking, 165477R91 12 volt
1шт.
104193A1R
REMAN-STARTER
Remanufactured Starter
1шт.
104193A1C
CORE-STARTER
Return Number
1шт.
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
BOLT, Hex, 1/2"-13 x 1 1/4", G5, Full Thd
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
1
1932185
SPARE PART ARMATURE ASSY
1шт.
2
1935128
COIL
COIL ASSY, field, 3 coils
1шт.
2
1935131
COIL
COIL, field, shunt
1шт.
3
1927853
FOAM INSULATION
INSULATION, field coil
1шт.
4
1935168
GROMMET
GROMMET, in field frame
1шт.
5
1928966
FRAME
FRAME, commutator end
1шт.
6
818265
WASHER
WASHER, commutator end spacing
1шт.
7
1906945
COMMUTATOR BRUSH
BRUSH
4шт.
8
1926622
VALVE SPRING
SPRING, brush
2шт.
9
1926617
BRUSH HOLDER
PACKAGE, ground brush holder
2шт.
10
1926618
HOLDER
PACKAGE, insulated brush holder
2шт.
11
1926648
SCREW, brush attaching
4шт.
12
1928015
BRACKET
KIT, brush holder support
2шт.
13
1926605
ELECTRICAL WIRE
WIRE LEAD, brush ground
2шт.
14
1955325
SPARE PART HOUSING ASSY, drive end
1шт.
15
1923907
BUSHING
BUSHING, drive end housing
1шт.
16
1932205
LEVER
LEVER, shift
1шт.
17
1814529
STUD, shift lever
1шт.
18
1958679
SPRING
SPRING, plunger return
1шт.
19
1932209
SEAL
SPRING, shift lever assisting
1шт.
20
1953041
PLUNGER
PLUNGER, solenoid switch
1шт.
21
1953479
WASHER, shift lever stud sealing lock
1шт.
22
1927849
COLLAR
COLLAR, drive end pinion stop
1шт.
24
1927850
COLLAR ASSY.
COLLAR, drive end spacing
1шт.
25
1937975
DRIVE
DRIVE ASSY, motor
1шт.
26
1114287
SWITCH
SWITCH ASSY, solenoid
1шт.
120622
NUT,#8-32
NUT, #8-32
2шт.
120377
NUT,3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
2шт.
110730
LOCK WASHER
WASHER, 3/8 light lock
1шт.
1952427
GASKET
GASKET, between switch and housing
1шт.
Выбрано товаров: 37
