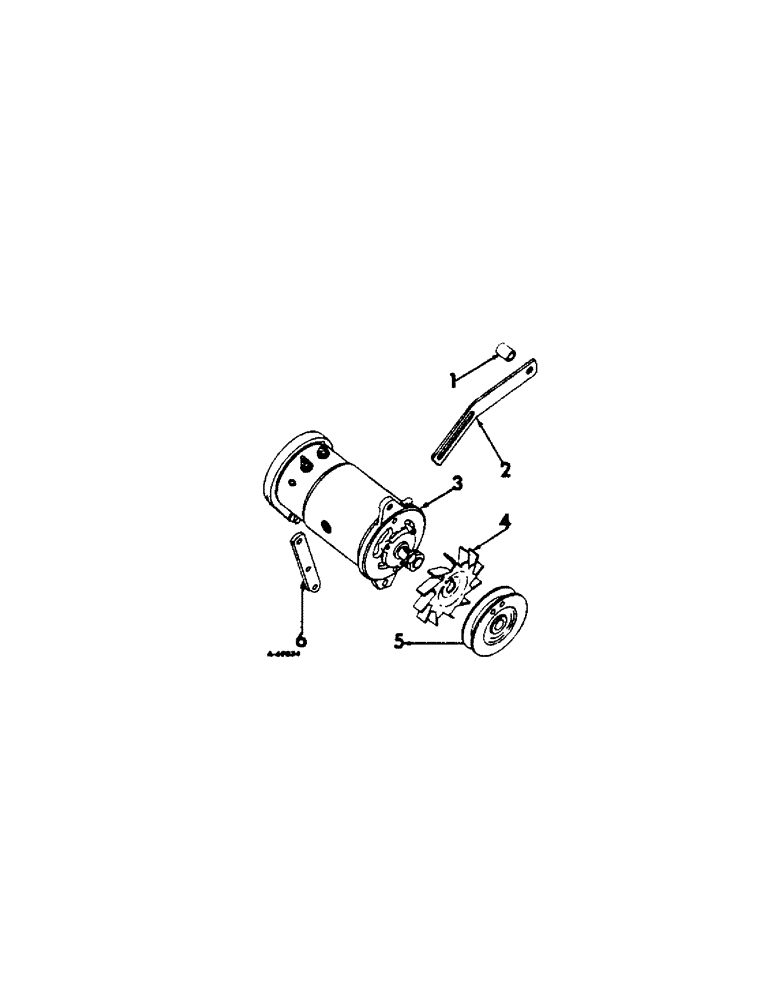

Запчасти Case IH 303 (407) - C-221 ENGINE, 3-9/16 X 3-11/16, GENERATOR AND CONNECTIONS, COMBINE SERIAL NO. 9427 AND BELOW (10) - ENGINE

1

371108R1

SPACER,3/8" Pipe x .844"

generator brace, LP gas

1шт.

2

367250R1

BRACE, generator, gasoline

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

371107R2

SUPPORT

BRACE, generator, LP gas

1шт.

186263

SHAFT

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

3

1100425

GENERATOR

ASSY, 379391R91, For components see list of parts under details of generator

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

557264R1

WASHER

13/32 x 3/4 x 11 ga

1шт.

4

90426H

FAN, generator

1шт.

5

304446R1

PULLEY, generator, Optional with 378349R1

1шт.

5

379349R1

PULLEY, generator, Optional with 304446R1

1шт.

6

367661R1

BRACKET, generator

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
