(407[1]) - C-221 ENGINE, 3-9/16 X 3-11/16, VOLTAGE REGULATOR, DELCO REMY, COMBINE SERIAL NO. 9427 AND BELOW

Запчасти Case IH 303 (407[1]) - C-221 ENGINE, 3-9/16 X 3-11/16, VOLTAGE REGULATOR, DELCO REMY, COMBINE SERIAL NO. 9427 AND BELOW (10) - ENGINE

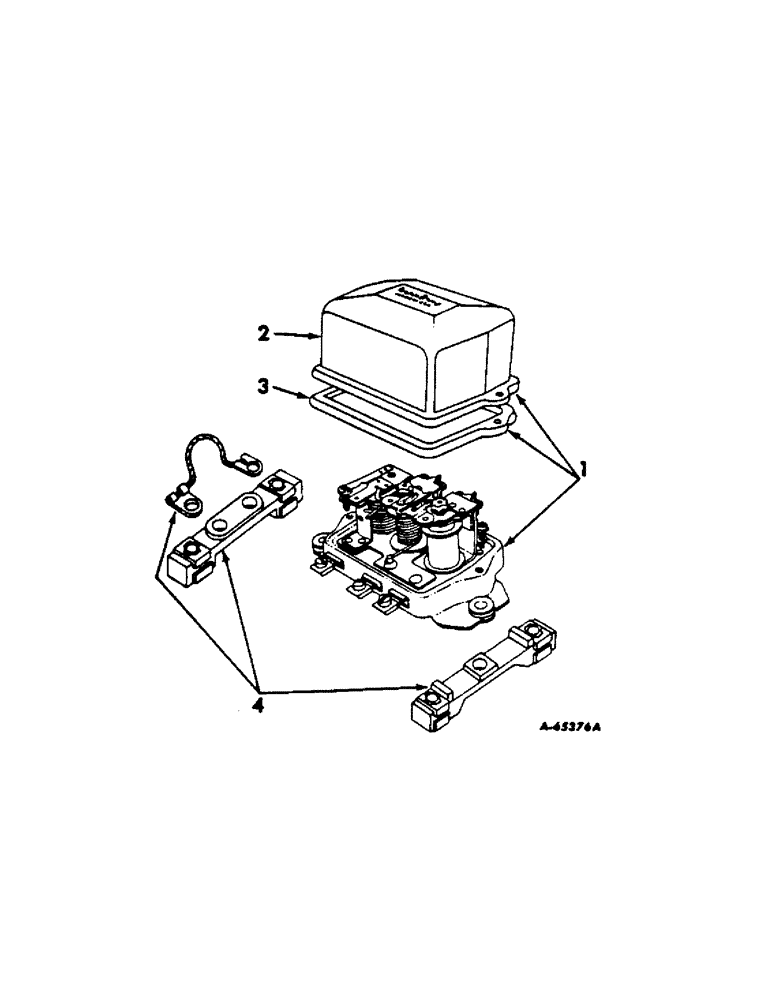

Схема запчастей Case IH 303 - (407[1]) - C-221 ENGINE, 3-9/16 X 3-11/16, VOLTAGE REGULATOR, DELCO REMY, COMBINE SERIAL NO. 9427 AND BELOW (10) - ENGINE
1
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1119270E

REGULATOR ASSY, voltage

1шт.

109084

NUT,1/4"-20, G5

4шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

1119000

REGULATOR

ASSY, voltage

1шт.

2

1931886

COVER

1шт.

3

1931887

GASKET, cover

1шт.

4

1910966

ANCHOR

SHOCK MOUNT PACKAGE

1шт.
