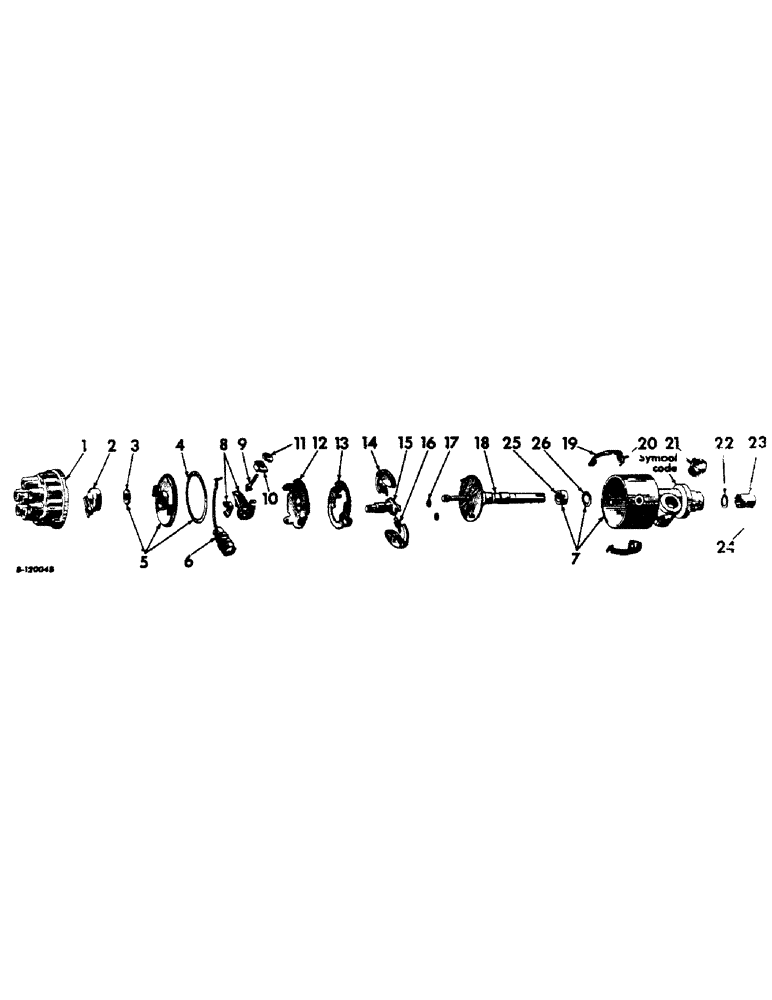

Запчасти Case IH 303 (406) - C-221 ENGINE, 3-9/16 X 3-11/16, DISTRIBUTOR (10) - ENGINE

383177R91

DISTRIBUTOR ASSY, AM symbol, gasoline, Order distributor 401169R91

1шт.

401169R91

DISTRIBUTOR

ASSY, gasoline

1шт.

380892R92

DISTRIBUTOR

ASSY, AJ symbol, LP gas

1шт.

1

368062R91

CAP

ASSEMBLY, distributor

1шт.

1

368062R91GV

CAP

Value, distributor cap

1шт.

2

353896R91

ROTOR ASSY.

MOTOR ASSEMBLY, distributor

1шт.

3

353901R2

FELT SEAL

FELT, breaker cover seal

1шт.

4

352284R2

GASKET

breaker cover, Used w/383177R91

1шт.

4

384830R1

GASKET

breaker cover, Used w/401169R91

1шт.

5

384831R91

COVER

ASSY, breaker

1шт.

5

384831R91GV

COVER

Value, Breaker Cover

1шт.

6

353903R92

CONDENSER

ASSEMBLY

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

no. 8-32 x 3/16 C-Z slt-fil-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

368051R11

HOUSING ASSY, distributor, Used w/383177R91

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8 C-Z slt hdls pipe

1шт.

7

401107R11

HOUSING ASSY, distributor, Used w/401169R91

1шт.

8

372951R91

SCREW,POINTED

POINT SET, distributor

1шт.

8

372951R91GV

SET

Value, Pointed Screw

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

no. 8-32 x 3/16 C-Z slt-pan-hd mach

1шт.

21394D

WASHER

stationary point and terminal

3шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

10

353906R1

PLUG

INSULATOR, spring anchor terminal

1шт.

11

251538R1

WASHER

terminal insulating

1шт.

12

372868R11

RETAINER

PLATE ASSY, breaker

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

no. 8-32 x 3/8 C-Z slt-rd-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

353920R1

GUARD

governor weight

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

no. 8-32 x 1/4 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353917R91

ARM

ASSY, weight

2шт.

15

356192R91

CAM

ASSEMBLY

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

16

373963R91

SPRING, governor, Set of two, gasoline

1шт.

16

380895R91

SPRING, governor, Set of two, LP gas

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

383178R91

SHAFT ASSY, distributor, gasoline, Used w/383177R91

1шт.

18

401171R1

SHAFT ASSY, distributor, Used w/401169R91

1шт.

18

380893R92

SHAFT ASSY, distributor, LP gas

1шт.

19

368096R1

SPRING

distributor cap

2шт.

20

353895R1

SUPPORT

distributor cap spring

2шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

no. 8-32 x 3/8 C-Z slt-rd-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21

369013R1

PLUG

distributor housing

1шт.

22

368054R1

THRUST WASHER

distributor thrust, lower

1шт.

23

368053R1

BUSHING

COLLAR, distributor shaft

1шт.

24

354552R1

HARDWARE

PIN, distributor gear

1шт.

25

368057R91

OIL SEAL

OIL SEAL, distributor shaft

1шт.

26

368055R1

WASHER, distributor thrust, upper

1шт.

407062R91

BREAKER

SET, points and condenser

1шт.
