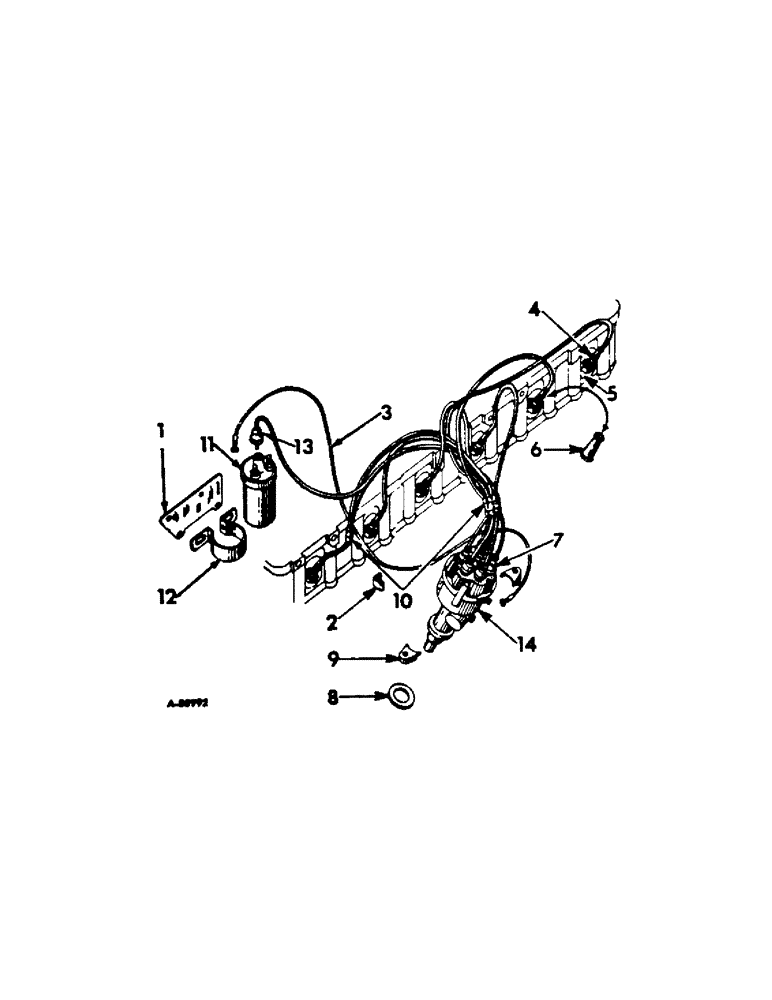

Запчасти Case IH 303 (404[1]) - C-221 ENGINE, 3-9/16 X 3-11/16, SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR (10) - ENGINE

1

370534R11

BRACKET ASSY, ignition coil

1шт.

179852

BOLT

SCREW, 7/16-14 x 1/2 hex-hd cap

2шт.

2

370535R1

CLIP

coil to distributor cable

1шт.

3

368267R91

CABLE

ASSY, coil to distributor primary

1шт.

4

396499R1

SPARK PLUG

light or moderate service, Champion 18Y, Will work for 360943R91

6шт.

4

397149R1

SPARK PLUG

light or moderate service, Will work for 353985R91

6шт.

4

397146R1

SPARK PLUG, light or moderate service 18-81

6шт.

4

371522R91

SPARK PLUG

w/gasket, 37762H, intermediate service, Champion D-16

6шт.

4

360942R91

SPARK PLUG

w/gasket, 37762H, normal service, Champion 8 com

6шт.

4

353982R91

SPARK PLUG, w/gasket, 37762H, normal service, AC-C85

6шт.

4

359276R91

SPARK PLUG

w/gasket, 37762H, normal service, Auto-Lite 8T-8

6шт.

4

361688R91

SPARK ARRESTER

SPARK PLUG, w/gasket, 37762H, severe service, Champion D-9

6шт.

4

353983R91

SPARK PLUG, w/gasket, 37762H, severe service, AC-C83

6шт.

4

359275R91

SPARK PLUG, w/gasket, 37762H, severe service, Auto-Lite 8T-4

6шт.

4

361686R91

SPARK PLUG

w/gasket, 37762H, extreme severe service, Champion D-6

6шт.

4

353986R91

SPARK PLUG

w/gasket, 37762H, extreme severe service, AC-C81

6шт.

4

359274R91

SPARK PLUG, w/gasket, 37762H, extreme severe service, Auto-Lite 8-T-3

6шт.

4

393759R91

SPARK PLUG

w/gasket, 37762H, LP gas, Champion D-15Y

6шт.

5

37762H

GASKET

spark plug

6шт.

6

371430R1

INSULATOR

spark plug terminal

6шт.

7

251553R1

BOOT

NIPPLE, distributor cap terminal

8шт.

8

353936R2

GASKET

distributor

1шт.

9

353937R1

CLIP

CLAMP, distributor

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

368270R91

CABLE

ASSY, spark plug, Consists of six spark plug cables, coil to distributor cable and eight nipples, 251553R1, Used w/coil assy, 368839R91

1шт.

10

385930R91

CABLE

spark plug, Used w/coil assy 1115087 or 395330R91

1шт.

11

1115087

COIL ASSY, ignition, Replaces 368839R91, Optional w/395330R91

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

11

395330R91

COIL

ASSY, ignition, Optional w/1115087

1шт.

12

1909321

KIT, ENGINE TOP GASK

CLAMP, coil, Replaces 358619R1, Optional w/396328R1

1шт.

12

396328R1

CLAMP

coil, Optional w/1909321

1шт.

177056

HUB

SCREW, 10-32 x 1-1/2 C-Z slt-rd-hd tap

2шт.

13

372875R1

NIPPLE, LUBE

NIPPLE, ignition coil

1шт.

14

401169R91

DISTRIBUTOR

ASSY, For components see list of parts under details of distributor

1шт.

368573R91

RESISTOR

ignition coil, Used w/coil assy 368839R91

1шт.
