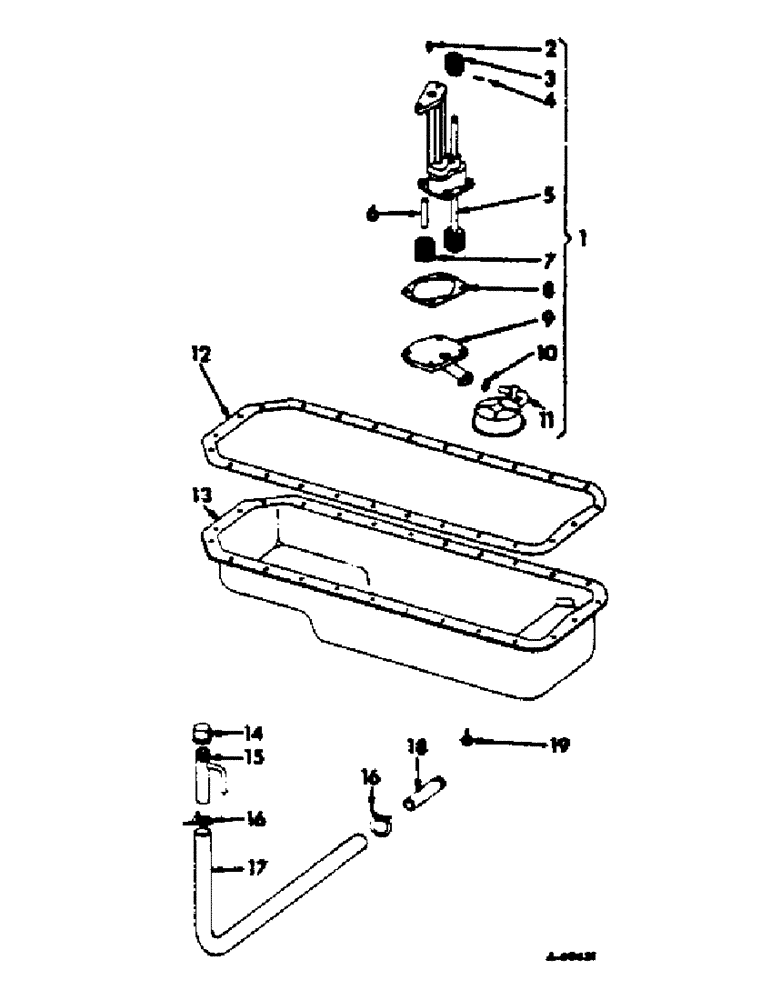

Запчасти Case IH 303 (402) - C-221 ENGINE, 3-9/16 X 3-11/16, CRANKCASE OIL PAN AND OIL PUMP (10) - ENGINE

1

230421R91

PUMP, HYDRAULIC

PUMP ASSEMBLY, oil

1шт.

735245C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1928211C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, 1/8 x 5/8 Woodruff no. 5

1шт.

3

69608R1

GEAR

GEAR, oil pump drive

1шт.

4

112011

PIN,1/8" x 7/8"

PIN, 1/8 x 7/8 sq end str

1шт.

5

230409R91

GEAR

SHAFT & GEAR ASSY, oil pump drive

1шт.

6

35647H

SHAFT

SHAFT, idler gear

1шт.

7

227713R1

GEAR WHEEL

GEAR, pump body driven

1шт.

8

69607R1

GASKET

GASKET, oil pump cover

1шт.

9

169679R1

SPARE PART COVER, oil pump body

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

O-RING, 9/16 x 3/4 x 3/32, oil pump screen

1шт.

11

359160R91

SCREEN

SCREEN ASSY, oil pump

1шт.

137195

PIN, 1/8 x 1-1/4 phosphate coated cot.

1шт.

12

369984R1

GASKET

GASKET, crankcase pan

1шт.

13

601380C11

OIL RESERVOIR

PAN ASSY, crankcase oil

1шт.

14

119101

CAP,1/2" NPT

CAP, oil drain pipe

1шт.

15

628086R91

SPARE PART PIPE ASSY, oil drain

1шт.

16

628091R1

SPARE PART CLAMP, oil drain hose

2шт.

17

628088R1

SPARE PART HOSE, oil drain

1шт.

18

628087R1

SPARE PART PIPE, oil pan drain

1шт.

19

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

25шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

95-11034

WASHER,1/4"

WASHER, 11/32 x 11/16 x .065

5шт.
