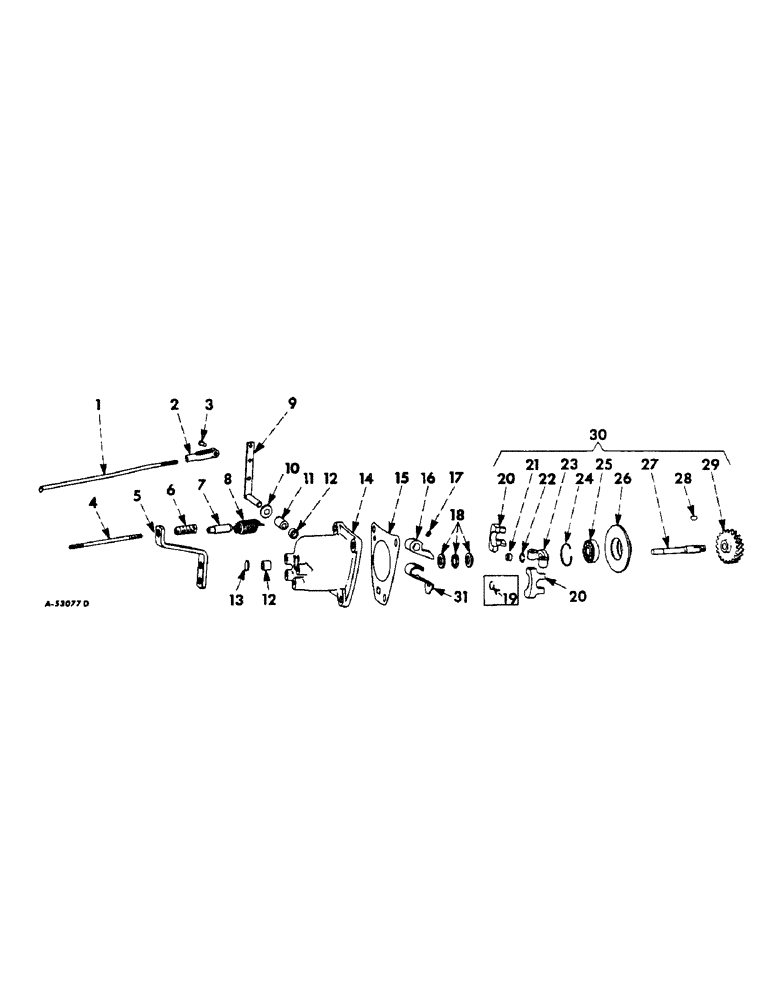

Запчасти Case IH 303 (401) - C-221 ENGINE, 3-9/16 X 3-11/16, GOVERNOR (10) - ENGINE

379851R92

GOVERNOR

ASSY

1шт.

1

368335R1

ROD

, Serial Range: governor-carburetor

1шт.

137130

PIN

1/16 x 7/16 cotter

1шт.

2

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-20 adj rod end

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

137130

PIN

1/16 x 7/16 cotter

1шт.

4

378249R1

ROD, governor spring retainer

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

1шт.

5

378248R1

BRACKET, governor spring

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

367660R1

BOLT,Hex, 1/2" - 20 x 1.19"

ADJUSTER, governor spring

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

7

367740R1

PIN

RETAINER, governor spring

1шт.

8

376592R2

SPRING

governor

1шт.

9

378130R91

LEVER

AND ROCKSHAFT ASSEMBLY, governor

1шт.

10

361123R91

OIL SEAL

governor rockshaft oil

1шт.

11

369593R1

BUSHING

governor

1шт.

12

369594R1

BUSHING

governor

2шт.

13

172530

PLUG,Exp, 11/16"

11/16 expansion

1шт.

14

367651R31

HOUSING ASSEMBLY, governor

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

127842

YOKE

SCREW, 1/4-28 x 1-1/2 slt-rd-hd mach

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

367669R1

GASKET

governor housing

1шт.

16

367653R1

FORK

governor thrust

1шт.

17

368938R1

SET SCREW,Hdls Hex Skt, 1/4" - 28 x 5/16", Cup Pt

governor thrust fork set

1шт.

18

393405R91

THRUST BEARING,11.07mm ID x 25.4mm OD x 11.13mm W

governor thrust ball

1шт.

19

NOT USED IN THIS APPLICATION

1шт.

20

367741R1

WEIGHT

governor

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4 x 3/8 ESNA roll

2шт.

21

387878R1

SLEEVE

governor thrust

1шт.

22

369477R1

RING

snap

1шт.

23

367726R1

CARRIER

governor weight

1шт.

24

281907C1

SNAP RING,1.438", Int, #143

Ring, Snap, , governor shaft brg 1.438", Int, #143

1шт.

25

ST552

BALL BEARING,12mm ID x 37mm OD x 12mm W

BEARING, governor shaft ball

1шт.

26

367666R1

RETAINER, governor bearing

1шт.

27

367665R1

SHAFT

governor

1шт.

28

452560

KEY, 1/16 x 3/8 Woodruff no. 211

1шт.

29

367664R1

PINION

GEAR, governor

1шт.

272614

U-BOLT

NUT, 7/16-20 hex. lock

1шт.

30

368939R93

PINION

GEAR AND WEIGHT ASSEMBLY, governor

1шт.

31

374795R1

VALVE SPRING

SPRING, bumper

1шт.

386013R91

SERVICE KIT

PACKAGE, governor overhaul service, Consists of ref nos 9 thru 13, 15 thru 18, 20, 21, 24, 25, 31 and attaching hardware

1шт.
