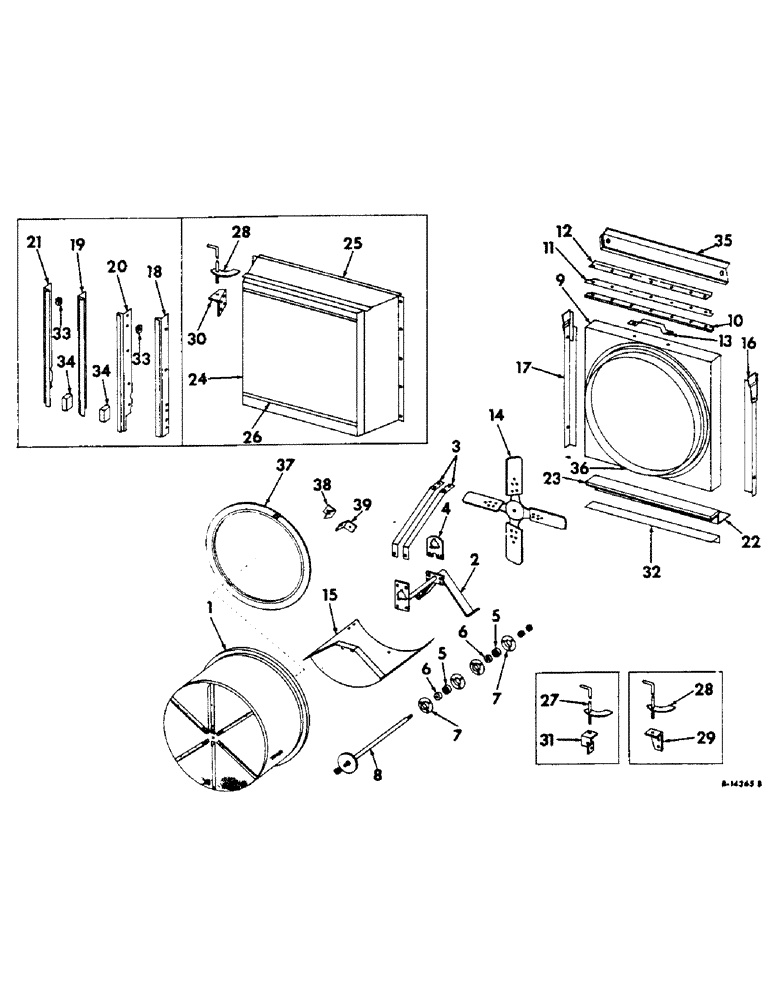

Запчасти Case IH 303 (399) - C-221 ENGINE, 3-9/16 X 3-11/16, RADIATOR ROTARY AIR SCREEN, COMBINE SERIAL NO. 9428 AND ABOVE (10) - ENGINE

1

159702C91

SCREEN

ASSY, radiator rotating fan

1шт.

2

152806C91

SUPPORT ASSY, radiator screen brg

1шт.

106882

RIVET, 3/16 x 1/4 wagon box

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

616855R1

WASHER, 11/32 x 3/4 x 16 ga C-Z

4шт.

3

154885C1

BRACE

radiator screen brg support

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

NLS

NO LONGER SERVICED

RIVET, 3/16 x 5/16 wagon box (PN 135285)

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

4

153570C1

BRACKET

radiator screen brg support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

5

468390R91

BEARING, BALL,0.6255" ID x 40 mm OD x 0.75"

BEARING ASSY, ball

2шт.

6

468391R11

COLLAR

W/SET SCREW, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/2 hex-soc-hd cup-pt set

2шт.

7

661147R1

FLANGED BEARING

rotating sieve brg

4шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

8

159703C91

ROD

ASSY, radiator rotating sieve

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

9

153664C91

SHROUD ASSY, radiator rotating screen

1шт.

155499C1

RIVET

3/16 x 1/4 pop

2шт.

10

154028C1

SEAL, sponge rubber

1шт.

11

154029C1

STRAP, seal

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 C-Z hex-hd

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

12

NOT USED

1шт.

13

614920R1

HANDLE, shroud

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4-20 x 1/2 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

158710C91

BLADE ASSY, fan

1шт.

15

152909C91

DEFLECTOR ASSY, radiator screen

1шт.

16

NOT USED

1шт.

17

NOT USED

1шт.

18

NOT USED

1шт.

19

NOT USED

1шт.

20

152812C1

GUIDE, radiator support left

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

21

152813C1

GUIDE, radiator support right

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

22

NOT USED

1шт.

23

NOT USED

1шт.

24

NOT USED

1шт.

25

NOT USED

1шт.

26

NOT USED

1шт.

27

154125C91

LEVER ASSY, rotating fan support

1шт.

120376

NUT,5/16"-18, G5

2шт.

28

NOT USED

1шт.

29

NOT USED

1шт.

30

NOT USED

1шт.

31

154129C1

SUPPORT, rotating fan

1шт.

32

152811C1

ANGLE, radiator support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

33

110579R91

NUT

5/16-24 speed grip

10шт.

34

159541C1

SEAL, radiator air screen guide bottom

2шт.

35

NOT USED IN THIS APPLICATION

1шт.

36

161420C1

RING

rotary screen brush

1шт.

161421C1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 zinc-pltd hex-hd

8шт.

37

161010C1

BRUSH ASSY, rotary screen

1шт.

38

161011C1

CLIP

rotary screen brush long

1шт.

39

161012C1

CLIP, rotary screen brush short

1шт.

19910R1

LOCK NUT

no. 10-24 C-Z lock

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10-24 x 1 C-Z pan-hd sltd mach

1шт.
