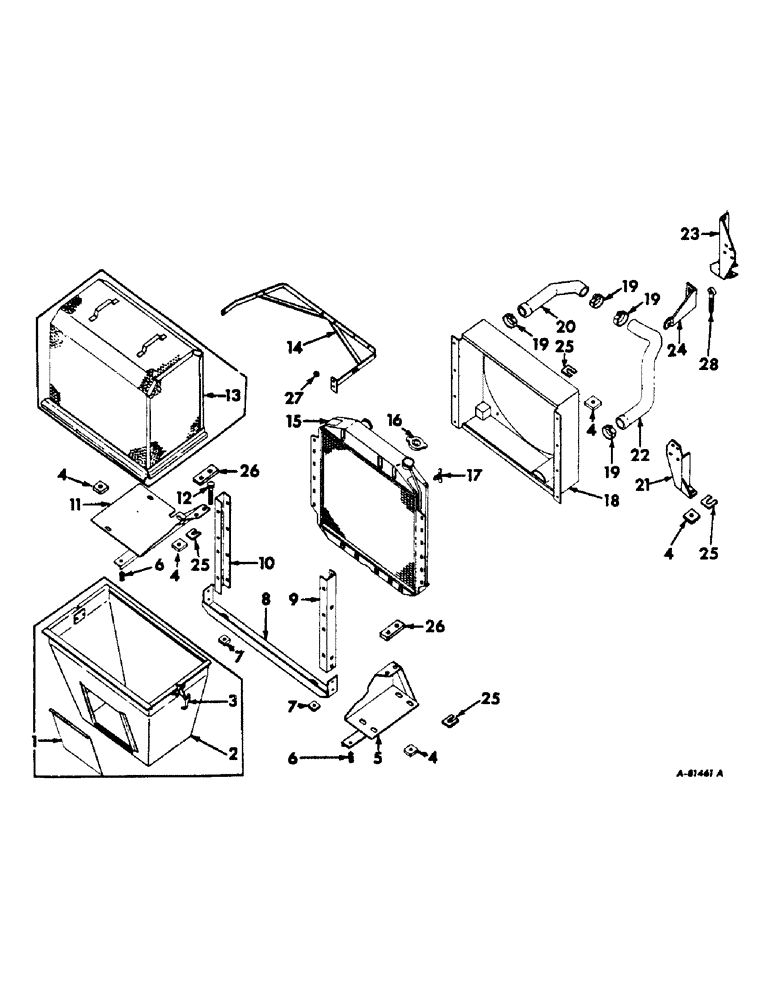

Запчасти Case IH 303 (395) - C-221 ENGINE, 3-9/16 X 3-11/16, AIR CHUTE, RADIATOR AND CONNECTIONS (10) - ENGINE

1

274733R1

DOOR, radiator air chute, Up to combine serial no. 9427

1шт.

2

388432R91

CHUTE ASSY, radiator air, Up to combine serial no. 9427

1шт.

110579R91

NUT

5/16-24 speed grip

5шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

3

353443R91

LATCH ASSY.

LATCH, radiator screen, Up to combine serial no. 9427

2шт.

113356

RIVET,Tr Hd, 3/16" x 3/8"

3/16 x 3/8 oval-hd tubular

4шт.

4

633222R1

INSULATOR BLOCK

PAD, support

5шт.

5

377749R11

BRACKET ASSY, front support LH

1шт.

196454R1

BOLT

W/INSERT, 5/8-11 x 1-3/4 hex-hd

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 ESNA lock

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

6

67205D

SPRING

radiator mounting bolt

2шт.

7

274716R1

PAD, radiator mounting

4шт.

8

377758R12

SUPPORT ASSY, radiator

1шт.

15072R1

BOLT

7/16-14 x 2 short-sq-nk crg

2шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 ESNA lock

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

4шт.

9

318284R2

CHANNEL, radiator chute and shroud

1шт.

111543R91

NUT, 3/8-24 speed grip

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

318285R3

CHANNEL, radiator chute and shroud

1шт.

111543R91

NUT, 3/8-24 speed grip

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

379916R11

BRACKET ASSY, front support RH

1шт.

11

377752R12

BRACKET ASSY, front support RH, combines with hydrostatic drive

1шт.

196454R1

BOLT

W/INSERT, 5/8-11 x 1-3/4 hex-hd

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 ESNA lock

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

12

301055R1

BOLT, engine adjusting front

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

3шт.

13

387969R91

SCREEN ASSY, radiator air, Up to combine serial no. 9427

1шт.

14

378047R11

BRACE ASSY, radiator

1шт.

110579R91

NUT

5/16-24 speed grip

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

2шт.

173127

WASHER, 5/16 int-ext tooth lock Ext-Int Tooth, 5/16"

4шт.

15

383803R91

RADIATOR ASSY, Order 400414R1

1шт.

110579R91

NUT

5/16-24 speed grip

8шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

8шт.

15

400414R1

RADIATOR ASSY

1шт.

181608

BOLT,Hex, 5/16" - 24 x 1", Gr 5

SCREW, 5/16-24 x 1 C-Z hex-hd cap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 C-Z

8шт.

110575R91

NUT, 5/16-24 speed grip

8шт.

16

118029R91

RADIATOR CAP

CAP, radiator pressure, Order 393229R91

1шт.

16

393229R91

CAP

radiator pressure

1шт.

17

144569

COCK, DRAIN

COCK, 1/4 drain, radiator drain

1шт.

18

379623R11

SHROUD ASSY, fan

1шт.

110579R91

NUT

5/16-24 speed grip

8шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SCREW, 5/16-18 x 3/4 hex-hd cap

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

6шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

19

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, radiator hose

4шт.

20

379621R1

RADIATOR HOSE,2.00" ID, 2.25" ID x 12.38", SAE 20R4 CLASS R, GRADE 1A

Inlet elbow 2.00" ID, 2.25" ID x 12.38", SAE 20R4 CLASS R, GRADE 1A

1шт.

21

276114R11

SUPPORT ASSY, rear LH

1шт.

22

379622R1

HOSE

radiator outlet elbow

1шт.

23

389106R91

SUPPORT ASSY, rear RH

1шт.

24

150848C1

BRACKET, engine adjusting

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

570012R1

SHIM, engine support

4шт.

26

385874R1

PAD

engine base rear

2шт.

27

469925R1

SPACER, radiator brace

1шт.

28

150847C1

BOLT, engine adjusting rear

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-14 x 1-1/2 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.
