(048[1]) - MAIN WHEEL, TIRE AND TUBE

Запчасти Case IH 403 (048[1]) - MAIN WHEEL, TIRE AND TUBE (44) - WHEELS

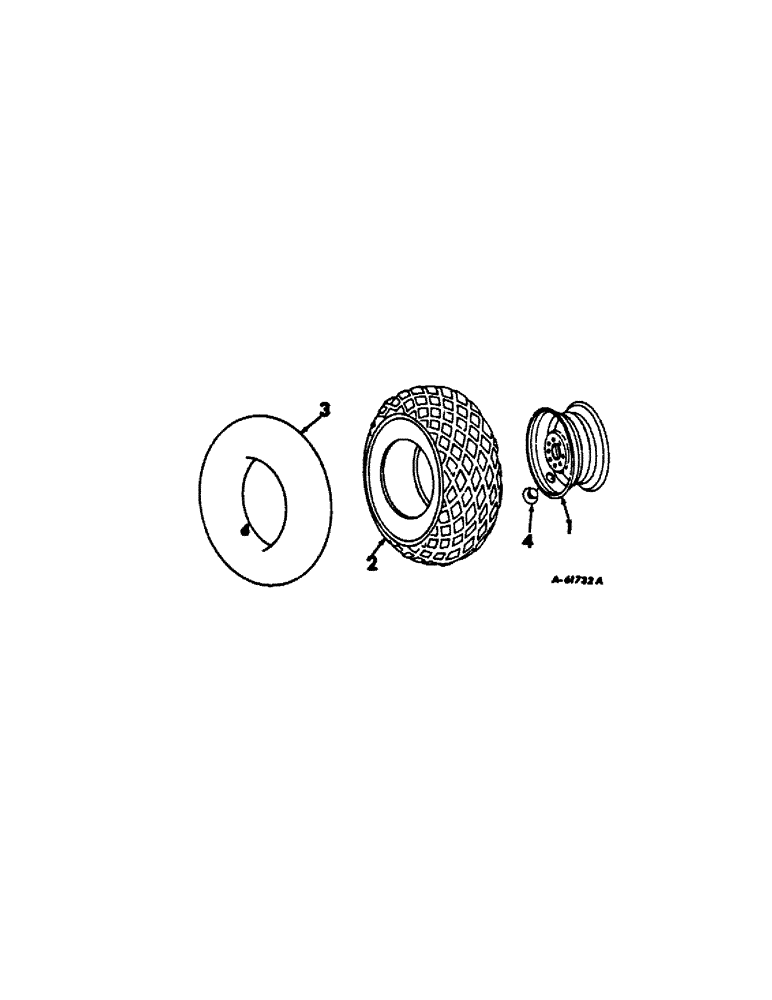

Схема запчастей Case IH 403 - (048[1]) - MAIN WHEEL, TIRE AND TUBE (44) - WHEELS
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

588644R91

DISC AND RIM ASSY, main wheel, regular, For use with 23.1/18-26 pneumatic tires, Serial no. 1322 and below

2шт.

1

163619C91

DISC AND RIM ASSY, main wheel, regular, For use with 23.1/18-26 pneumatic tires, Serial no. 1323 and above

2шт.

2

TIRE, main wheel, 23.1/18-26, 10-ply, Code R3

2шт.

3

TUBE, main wheel, 23.1/18-26

2шт.

4

383697R1

PLUG

valve hole

1шт.

Выбрано товаров: 5
