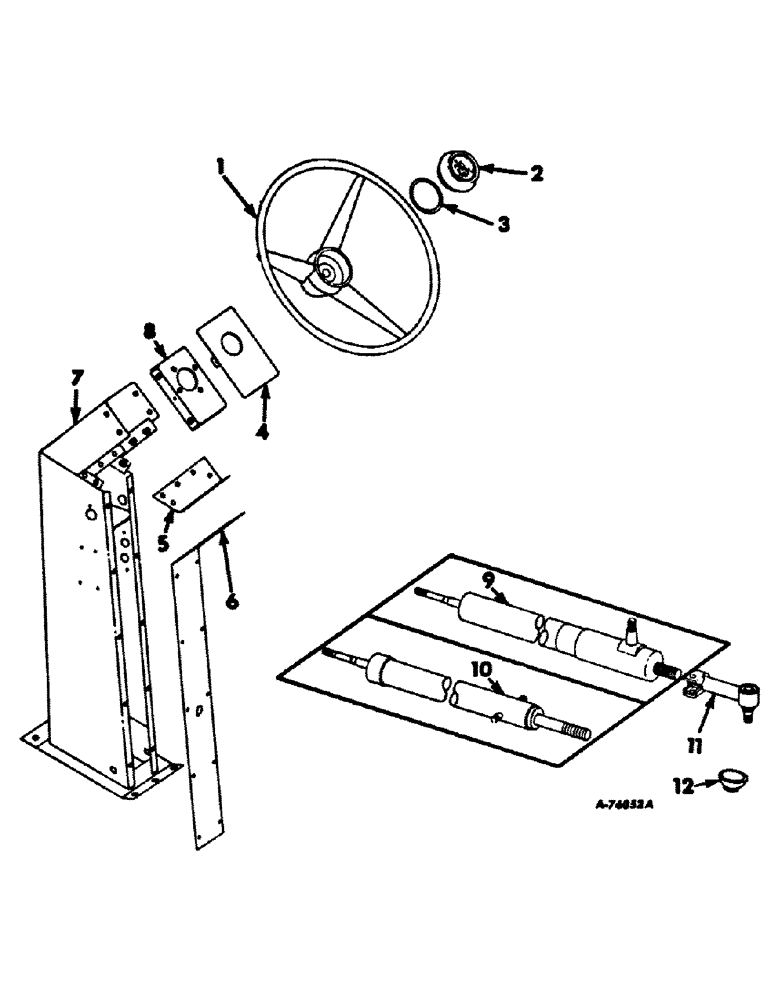

Запчасти Case IH 403 (092) - STEERING (41) - STEERING

1

385156R1

WHEEL (STEERING)

WHEEL, steering

1шт.

1

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

2

366566R1

CAP

steering wheel

1шт.

3

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

steering wheel cap

1шт.

4

633074R91

COVER ASSY, steering column top

1шт.

118832

DRIVE BUSHING

NO. 10 X 1/2 SLT-RD-HD TAPPING SCREW

3шт.

5

633492R1

SIDE, steering column removable, LH

1шт.

5

633493R1

SIDE, steering column removable, RH

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 MACH BOLT

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

633490R1

BACK, steering column, gasoline burning engines

1шт.

6

634780R1

BACK, steering column, diesel engines

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

1/4 X 1/2 PAN-HD SLT TAPPING SCREW

12шт.

564791R1

SPRING NUT

1/4 SPEED NUT

12шт.

7

633072R91

COLUMN ASSY, steering, Serial no. 805 and below

1шт.

7

938865R91

COLUMN ASSY, steering, Serial no. 806 and above

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

6шт.

14995R1

BOLT

3/8 X 3/4 CRG BOLT W/NUT

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3/8 X 1 CRG BOLT W/NUT

3шт.

15251R1

3/8 X 4-3/4 CRG BOLT W/NUT

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 MACH BOLT

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

Q1505

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

8

633073R11

BRACKET ASSY, steering hand pump

1шт.

9

NOT USED

1шт.

10

633309R91

CYLINDER ASSY, steering, For components see list of parts under details of hydraulic steering cylinder

1шт.

11

161253C91

END

ASSY, steering cylinder rod

2шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

3/8 x 1-3/4 hex-hd

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

PIN, 1/2 x 1-1/2 cot

2шт.

161386C1

NUT

5/8-18 C-Z slt-hex. jam

1шт.

12

382562R1

SEAL

steering cylinder rod end

2шт.
