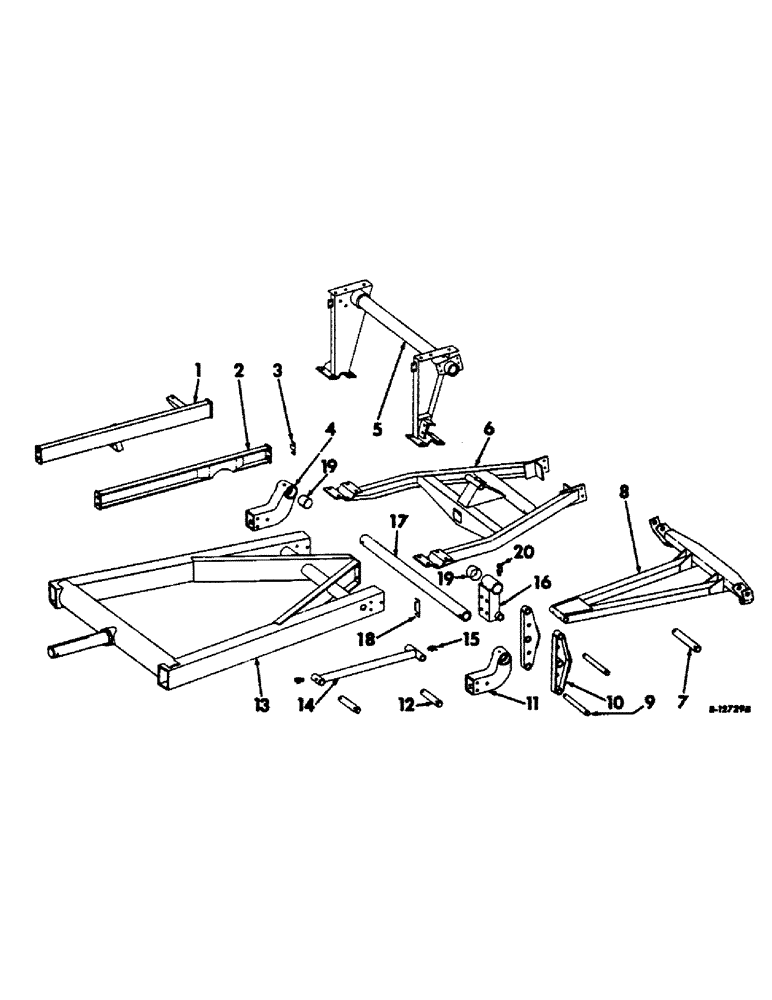

Запчасти Case IH 403 (056) - BAIL PIVOT FRAME AND PLATFORM LIFT FRAME, FULL LEVELING ONLY (39) - FRAMES AND BALLASTING

1

632879R91

BRACE W/PLATE, bail pivot support LH rear

1шт.

5/8 X 1-1/2 MACH BOLT W/NUT

4шт.

5/8 LOCK WASHER

4шт.

2

628392R91

BRACE W/GUSSET, bail pivot support, RH, rear

1шт.

5/8 X 1-1/2 MACH BOLT W/NUT

4шт.

5/8 LOCK WASHER

4шт.

3

589040R1

SHIM

1шт.

4

628443R11

ANCHOR W/BUSHING, ball front pivot, LH, Includes ref no. 19

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8 90 DEG ELBOW LUBRICATION FITTING

1шт.

5/8 - 18UNF NUT

3шт.

5/8 - 18UNF X 4-3/4 CAP SCREW

3шт.

5/8 LOCK WASHER

3шт.

5

628812R91

SUPPORT W/PLATE AND SPACER, bail pivot, For propulsion drive

1шт.

5

167738C1

SUPPORT ASSY, bail support, For hydrostatic drive

1шт.

1/2 NUT

6шт.

631558R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 X 1-1/4 CAP SCREW

6шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

1/8 STRAIGHT LUBRICATION FITTING

1шт.

1/2 LOCK WASHER

1шт.

6

629550R91

FRAME W/CLAMP AND TUBE, front beam to bail pivot

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8 X 90 DEG ELBOW LUBRICATION FITTING

1шт.

1/4 X 1 MACH BOLT W/NUT

2шт.

5/8 X 1-1/4 MACH BOLT W/NUT

8шт.

1/4 LOCK WASHER

2шт.

5/8 LOCK WASHER

8шт.

575263R1

17/64 X 3/4 X 22 GA WASHER

2шт.

7

588553R1

PIN, platform lift front

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

8

588551R91

FRAME ASSY, platform lift

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg elbow lubrication

1шт.

9

588549R91

PIN, platform center arm

2шт.

1/4 X 2 COTTER PIN

2шт.

10

573763R91

ARM W/TUBE, platform lift pivot

2шт.

11

628444R11

ANCHOR W/BUSHING, bail front pivot, RH, Includes ref no. 191

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8 90 deg elbow, lubrication

1шт.

5/8 - 18UNF X 4-3/4 CAP SCREW

3шт.

5/8 LOCK WASHER

3шт.

12

573761R1

PIN, platform lift rear

1шт.

1/4 X 2 COTTER PIN

2шт.

13

633041R91

BAIL W/PLATE

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

5/16 X 1 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

2шт.

14

588550R91

LINK W/PIPE, platform lift rear

1шт.

15

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 90 deg elbow lubrication

3шт.

16

633217R91

ANCHOR W/TUBE, platform lift pivot, Includes ref no. 19

1шт.

7/16 X 1 MACH BOLT W/NUT

4шт.

7/16 LOCK WASHER

4шт.

17

573751R1

SHAFT, bail pivot

1шт.

5/18 X 1-1/2 MACH BOLT W/NUT

2шт.

5/8 LOCK WASHER

2шт.

18

627862R1

SHIM

8шт.

19

935597R1

BUSHING, platform lift pivot

6шт.

20

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 67 - 1/2 deg elbow lubrication

1шт.
