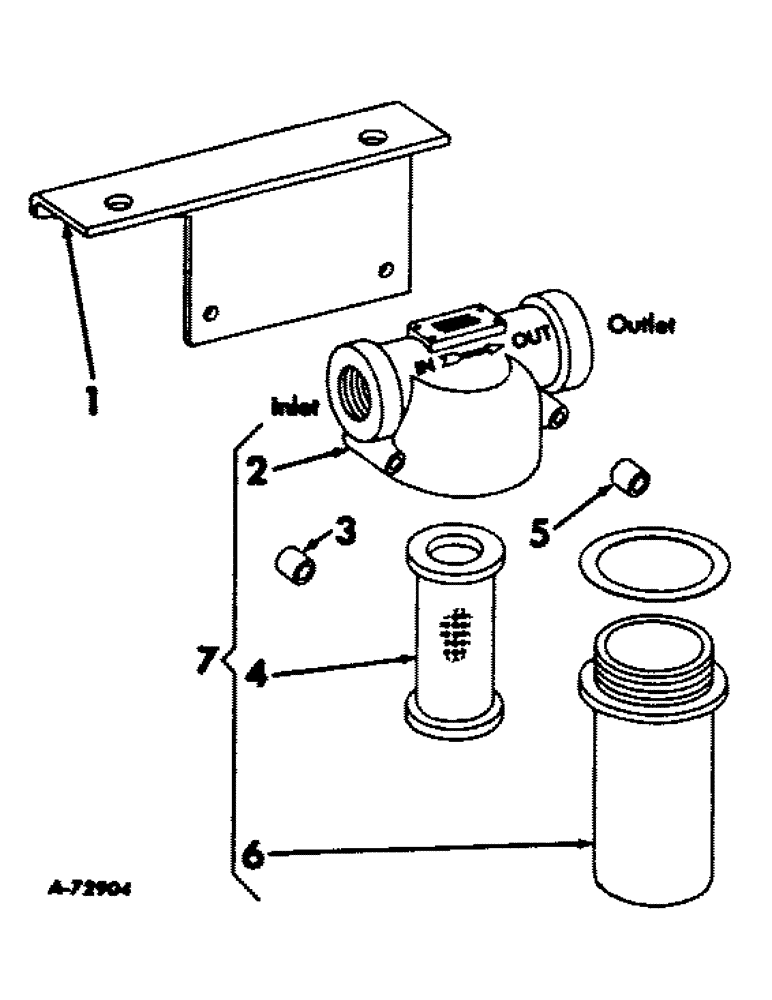

Запчасти Case IH 403 (179) - HYDRAULIC OIL FILTER, PRODUCT GRAPHICS (35) - HYDRAULIC SYSTEMS

1

633129R1

BRACKET, hydraulic oil filter

1шт.

1/2 X 1 MACH BOLT W/NUT

2шт.

1/2 LOCK WASHER

2шт.

2

572273R91

HEAD ASSY, filter

1шт.

3

M74411

SPACER, filter head

2шт.

4

573201R1

ELEMENT

hydraulic filter

1шт.

5

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

GASKET, filter bowl

1шт.

6

572274R1

BOWL, filter

1шт.

7

573200R91

FILTER

ASSY, hydraulic oil, Includes ref. nos. 2, 4, 5 and 6

1шт.

1/4 X 3 MACH BOLT W/NUT, side leveling

2шт.

1/4 X 5-1/2 MACH BOLT W/NUT, full leveling

2шт.

1/4 LOCK WASHER

2шт.

2754399R1

DECAL

PRODUCT GRAPHIC, warning

1шт.

2754437R1

PRODUCT GRAPHIC, be careful

1шт.

2754445R1

PRODUCT GRAPHIC, be careful

1шт.

547494R91

DECAL

KIT ASSY, product graphic IH trade mark

1шт.

547495R91

DECAL

KIT ASSY, product graphic International

1шт.

547497R91

PACKAGE

KIT ASSY, product graphic model designation

1шт.

654389R93

PRODUCT GRAPHIC

KIT, product graphics decal, Consists of the following

1шт.

1001615R1

DECAL

DIRECTION, open sieve PRODUCT GRAPHICS

1шт.

1001855R2

FILTER

IMPORTANT PRODUCT GRAPHICS

1шт.

1001856R3

DIRECTION, oil reservoir PRODUCT GRAPHICS

1шт.

2750738R1

GREASE FITTING INDICATOR PRODUCT GRAPHICS

10шт.

2751549R1

INSTRUCTION

LUBRICATION INSTRUCTIONS, propulsion sheave PRODUCT GRAPHICS

1шт.

2752659R2

INDICATOR

DIRECTION PRODUCT GRAPHICS

1шт.

2752660R1

INDICATOR

DIRECTION PRODUCT GRAPHICS

1шт.

2753592R1

DECAL

IMPORTANT PRODUCT GRAPHICS

1шт.

2753652R1

IMPORTANT PRODUCT GRAPHICS

1шт.

2753929R1

DECAL

SAFETY AND OPERATING INSTRUCTIONS PRODUCT GRAPHICS

1шт.

2753943R1

DECAL

IMPORTANT PRODUCT GRAPHICS

1шт.

2754032R1

PRODUCT GRAPHIC

MODEL NUMBERS PRODUCT GRAPHICS

2шт.

2754033R1

MODEL NUMBERS PRODUCT GRAPHICS

1шт.

2754145R1

SHIFTING UNIT

SHIFT PATTERN PRODUCT GRAPHICS

1шт.
