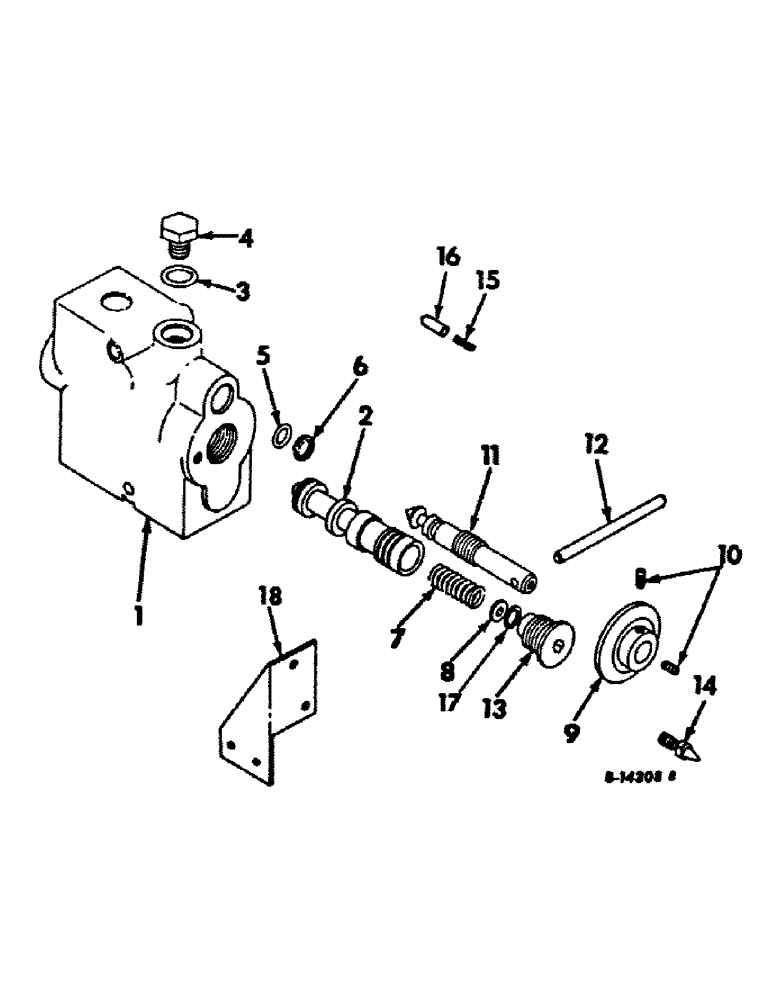

Запчасти Case IH 403 (178) - LEVELING FLOW DIVER, FAWICK, S/N 806 AND ABOVE (35) - HYDRAULIC SYSTEMS

150886C91

VALVE ASSY, flow divider, Includes ref. nos. 1 thru 7

1шт.

1

BODY, valve, Order valve assy 150886C91

1шт.

2

152410C1

PISTON

1шт.

4

9410357

PLUG

1шт.

5

321955

KIT

SEAL, o-ring

1шт.

6

152418C1

RING, back-up

1шт.

7

152417C1

SPRING

1шт.

8

114986

WASHER,#8

1шт.

9

152412C1

WHEEL, indicator

1шт.

10

140868

ROLLER BEARING,1.0005" ID x 0.8125"

SCREW, set 10-24 x 1/4 hex. soc-hd cup pt

2шт.

11

152411C1

VALVE, control

1шт.

12

91052R1

HANDLE

1шт.

13

152415C1

CAP, end

1шт.

14

152414C1

POINTER

1шт.

15

152416C2

SPRING

1шт.

16

152413C2

RATCHET

1шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

150861C1

SUPPORT, flow divider

1шт.

702222

SUPPORT

SCREW, 1/4 x 2-1/4 hex-hd cap

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Gasket

1шт.
