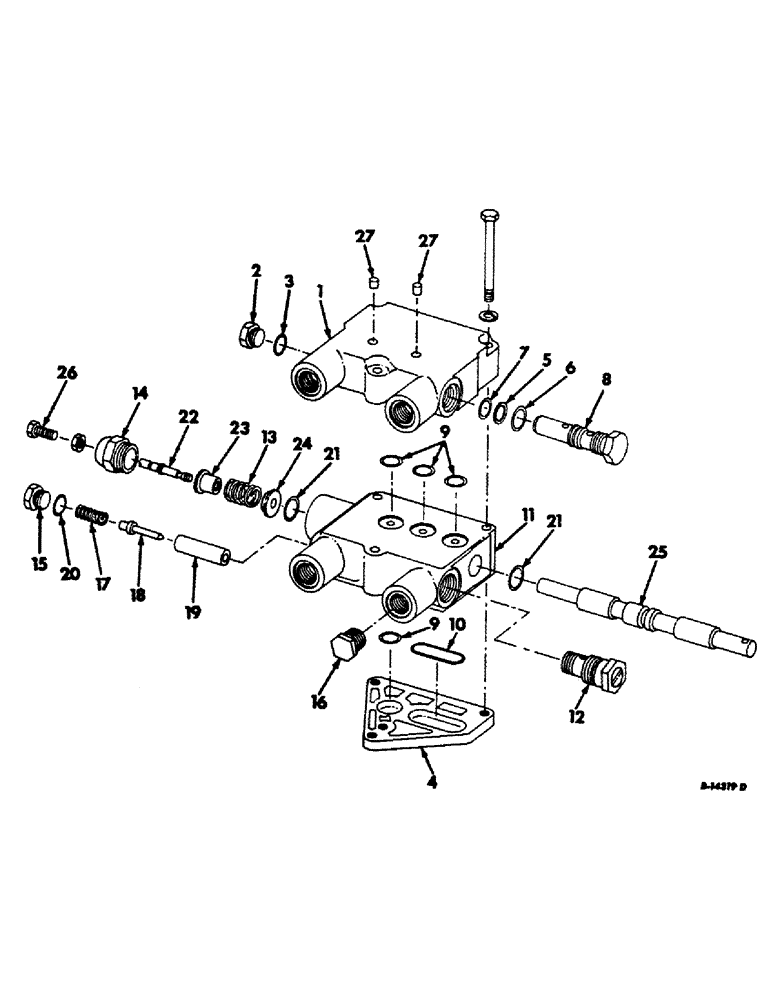

Запчасти Case IH 403 (176) - PLATFORM HYDRAULIC LIFT VALVE, FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

1

587569R1

PLATE, valve port

1шт.

426444

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

SCREW, 5/16 x 3-1/4 cap

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

588347R1

PLUG

1шт.

3

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

1шт.

4

587571R1

PLATE, end

1шт.

5

587585R1

WASHER

backup

1шт.

6

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

7

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

8

167447C91

VALVE

ASSY, relief, Includes ref. nos. 5, 6 and 7

1шт.

9

587579R1

O-RING

3/4 x 7/8 x 1/16

4шт.

10

587594R1

O-RING

1-1/2 x 1-11/16 x 3/32

1шт.

11

159376C91

VALVE

ASSY, four way, Includes ref. nos. 12 thru 26

1шт.

12

173827C91

VALVE

PLUG ASSY

1шт.

13

588353R1

SPRING

spool centering

1шт.

14

937198R91

CAP

ASSY

1шт.

15

159801C1

PLUG

1шт.

16

171325C1

VALVE ASSY, thermal relief

1шт.

17

159382C1

SPRING

lockout

1шт.

18

159380C91

VALVE

POPPET ASSY

1шт.

19

159379C1

PLUNGER

lockout

1шт.

20

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

6шт.

21

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

2шт.

22

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

23

937195R1

SPRING WASHER

1шт.

24

937194R1

SPRING WASHER

spool spring

1шт.

25

SPOOL, Order valve assy 159376C91

1шт.

26

1813366

SCREW, 5/16-24 x 3/4 cap

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

27

607706R1

SPACER,3/8" Pipe x 1 5/8"

platform lift valve support

2шт.

28

159803C91

VALVE

ASSY, check plug

1шт.

159383C91

PACKAGE

KIT, repair, Consists of

1шт.

321956R1

GASKET

O-RING

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

S

2шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

310925R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

159380C91

VALVE

POPPET ASSY

1шт.

156197C91

KIT, major seal repair, Consists of

1шт.

159383C91

PACKAGE

KIT ASSY

1шт.

587579R1

O-RING

S

4шт.

587594R1

O-RING

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

S

2шт.

321956R1

GASKET

O-RING

1шт.

310925R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

587585R1

WASHER

1шт.
