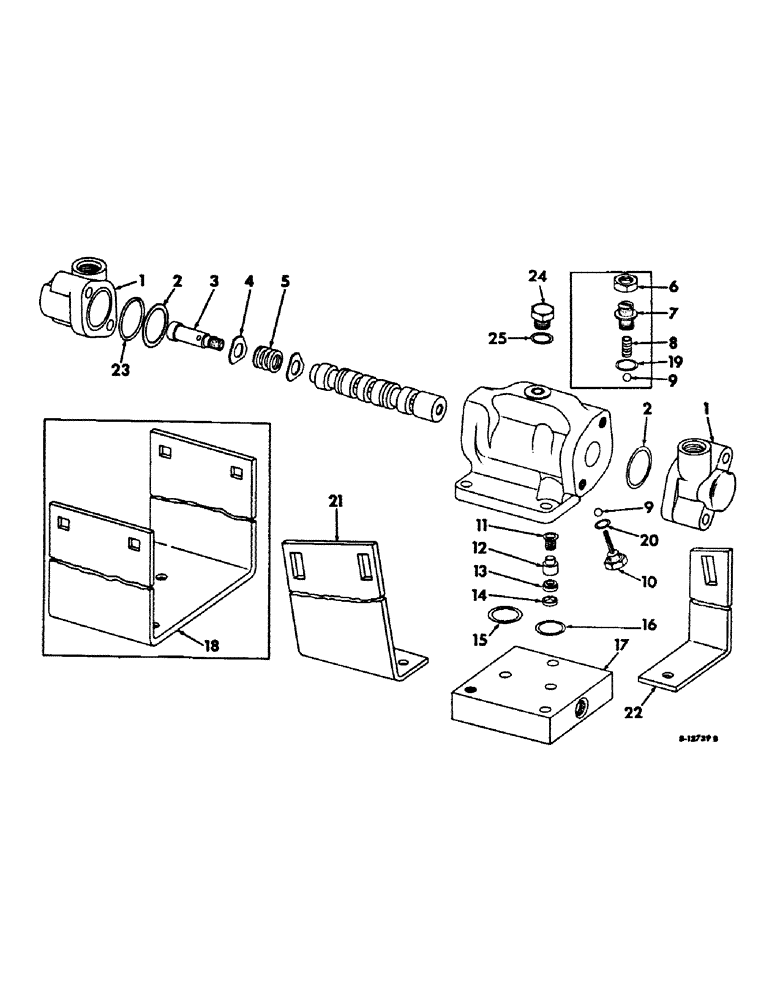

Запчасти Case IH 403 (170) - STEERING VALVE, S/N 1089 AND BELOW (35) - HYDRAULIC SYSTEMS

379645R93

VALVE

ASSY, steeing, Includes ref. nos. 1 thru 14, 19, 20 and 23

1шт.

NLS

NO LONGER SERVICED

1шт.

17521R1

BOLT,Hex, 3/8" - 16 x 2", Gr 2

3/8 x 2 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

379894R1

CAP

end

2шт.

2

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

2шт.

3

379896R1

SCREW,3/8" - 24, Drilled, W/ Nylon Pellet

spring centering

1шт.

4

379897R1

WASHER

centering screw

2шт.

5

379905R1

SPRING

valve centering

1шт.

6

25-118

NUT,1/2"-20, G5

adjusting screw lock, Serial no. 641 to 805

1шт.

1/2 NUT

1шт.

7

379899R1

SCREW, adjusting, Serial no., Serial Range: 641-805

1шт.

8

379898R1

SPRING, pressure relief, Serial no., Serial Range: 641-805

1шт.

9

16008R1

BALL,1/4" Dia, Steel

1/4 diameter

1шт.

10

379901R91

PLUG

ASSY

1шт.

11

382125R1

SPRING

pressure check

1шт.

12

382126R1

NO LONGER SERVICED

VALVE, check

1шт.

13

379810R1

SEAL

ball seat

1шт.

14

382127R1

WASHER

SPACER, check valve

1шт.

15

362796R1

O-RING,0.924" ID x 0.103" Width

1шт.

16

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

17

633383R1

BLOCK, hydrostatic steeing valve mounting

1шт.

18

633097R1

SUPPORT, hydrostatic steering valve, Serial no. 805 and below

1шт.

3/8 X 3/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

19

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Adjusting screw, S/N 641 to 805

1шт.

20

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Boss plug

1шт.

21

938881R1

BRACKET, steering valve, LH, Serial no. 806 and above

1шт.

3/8 X 3/4 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

22

938882R1

BRACKET, steering valve, RH, Serial no. 806 and above

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

23

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL, end cap, Serial no. 806 and above

2шт.

24

9410357

PLUG

o-ring boss, Serial no. 806 and above

1шт.

25

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Boss plug, S/N 806 and above

1шт.

379793R91

O-RING

SERVICE PACKAGE, Consists of

1шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Adjusting screw

1шт.

379810R1

SEAL

ball seat

1шт.

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Boss plug

1шт.

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

valve

2шт.
