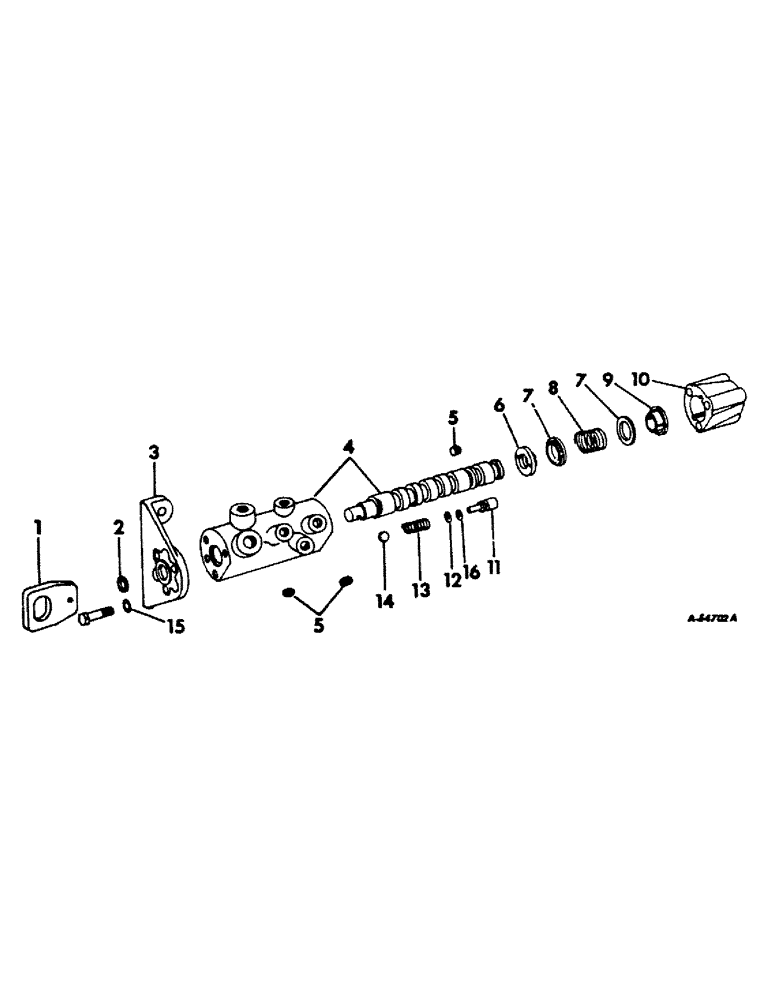

Запчасти Case IH 403 (169) - SIDE LEVELING AND REAR LEVELING VALVE (35) - HYDRAULIC SYSTEMS

1

562038R1

BRACKET, leveling control

1шт.

690970R1

PIN,5/16" x 3/4", Slotted

1шт.

2

561347R1

SEAL

OIL SEAL, valve spool

1шт.

3

562009R1

BRACKET, valve body mounting

1шт.

3/8 X 1-1/4 MACH BOLT

3шт.

4

573902R93

VALVE ASSY, side leveling and rear leveling, 1 used side leveling, 2 used full leveling, Includes ref. nos. 2, 3, 5 thru 16

1шт.

5

444687

PLUG,Hex Soc, 1/8"-27

Pipe Hex Soc, 1/8"-27

8шт.

6

562006R1

COLLAR, half, valve spool center stop

2шт.

7

562005R1

WASHER, valve spool center stop collar

2шт.

8

562008R1

VALVE SPRING

SPRING, valve spool centering

1шт.

9

562006R1

COLLAR, half, valve spool center stop

2шт.

10

573905R1

CAP, valve body centering device, end

1шт.

3/8 X 2-3/4 MACH. BOLT

3шт.

11

587621R1

STOP, relief valve spring

1шт.

12

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

relief valve spring stop

1шт.

13

587620R1

SPRING, relief valve

1шт.

14

16016R1

BALL

releif valve

1шт.

15

125003H1

DISC

WASHER, copper oil seal

6шт.

16

155669C1

SHIM

1шт.
