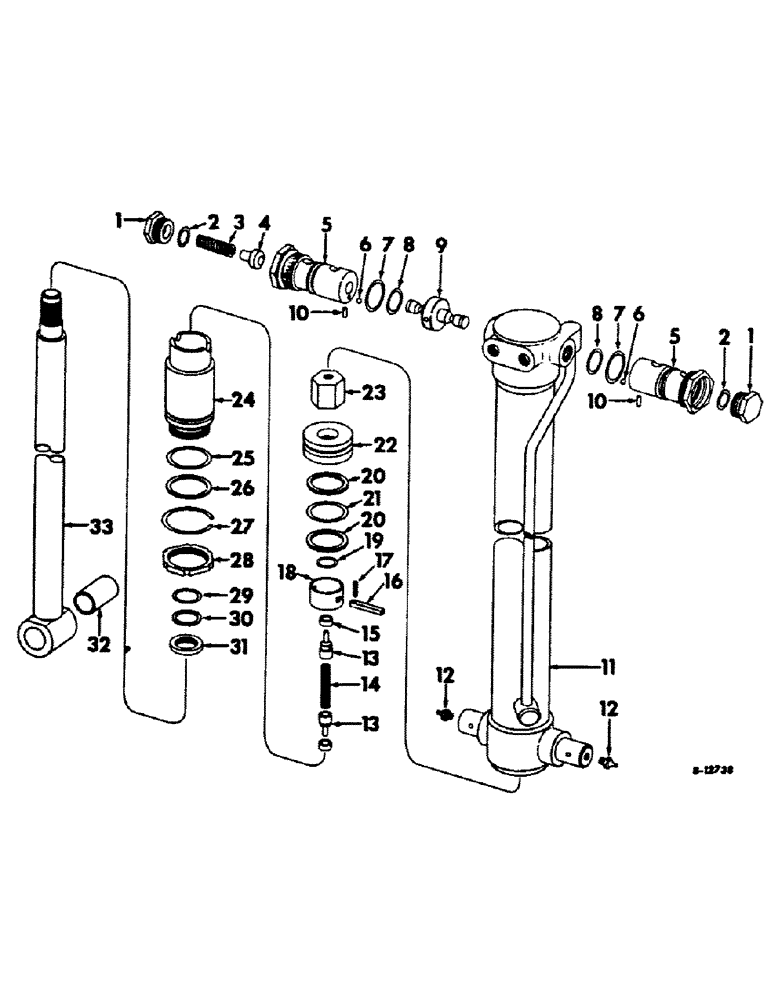

Запчасти Case IH 403 (166) - REAR LEVELING CYLINDER, FULL LEVELING (35) - HYDRAULIC SYSTEMS

633312R91

CYLINDER ASSY, leveling

2шт.

1

574791R1

PLUG

2шт.

2

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3/32 x 5/8 I.D.

2шт.

3

574789R1

SPRING

poppet valve

1шт.

4

574788R1

VALVE POPPET

VALVE, poppet

1шт.

5

574790R1

CAGE

2шт.

6

17005R1

BALL,5/32" Dia

5/32 dia steel

2шт.

7

283401R1

O-RING

3/32 x 1 I.D.

2шт.

8

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

3/32 x 13/16 I.D.

2шт.

9

574787R91

PISTON ASSY.

PISTON ASSY

1шт.

10

19315R1

PIN, ROLL

PIN, 1/16 x 1/4 roll

2шт.

11

935572R91

BARREL ASSY

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Not included in cylinder assy 1/8"-27 x .66 lg

4шт.

13

935571R1

VALVE

poppet

2шт.

14

935566R1

SPRING, poppet valve

1шт.

15

935568R1

SEAT

1шт.

16

935565R1

KEY, 1-31/32 x 5/16 sq dld

1шт.

17

19397R1

LOCK PIN,3/32" x 3/4", Slotted

PIN, 3/32 x 13/16 roll

1шт.

18

935564R1

COLLAR

1шт.

19

283189R1

O-RING

1/8 x 1-5/16 I.D.

1шт.

20

935596R1

RING, 2-5/8 x .067 x .188

2шт.

21

283857R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

3/16 x 2-5/8 I.D.

1шт.

22

935563R1

PISTON

1шт.

23

935570R1

NUT

1шт.

24

935562R1

GUIDE

1шт.

25

310929R1

O-RING

1/8 x 2-3/4 I.D.

1шт.

26

935595R1

RING

2-3/4 x .054 x .123

1шт.

27

935567R1

RING, round internal lock

1шт.

28

654408R1

NUT, 2-3/4

1шт.

29

133505R1

RING

O-RING, 3/16 x 1-3/4

1шт.

30

5294401

RING, 3/16 x 1-3/4 back-up

1шт.

31

403845R1

WIPER SEAL

SEAL, wiper scrapper

1шт.

32

935574R1

BUSHING

1шт.

33

935569R91

ROD ASSY, piston

1шт.
