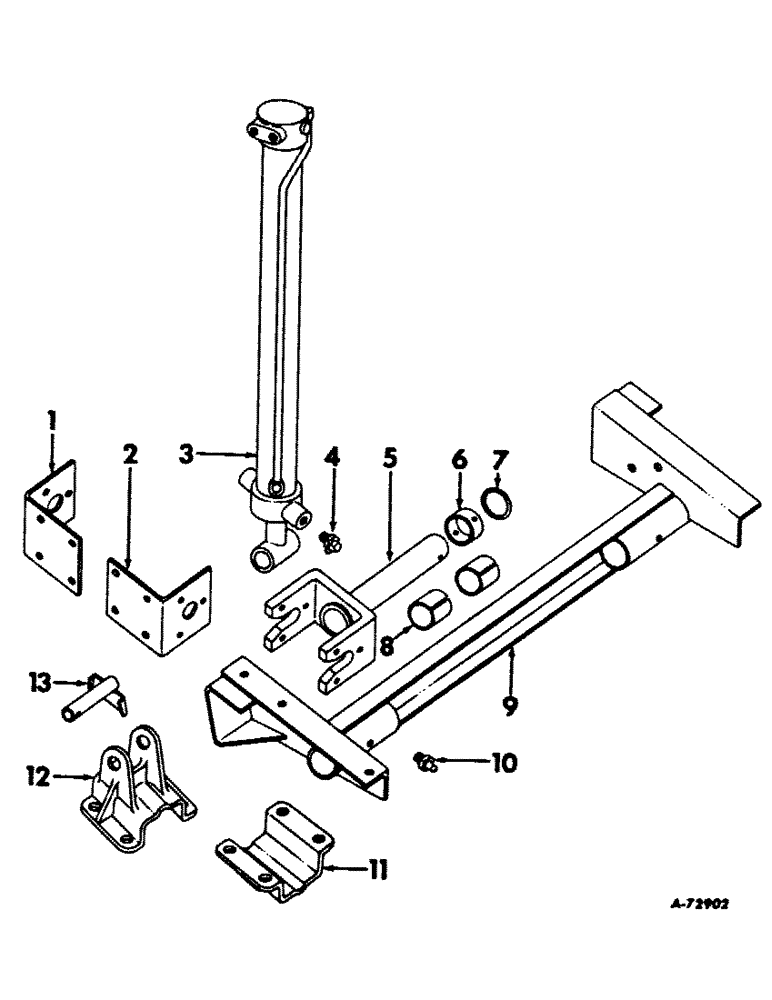

Запчасти Case IH 403 (165) - REAR LEVELING CYLINDER ATTACHING PARTS, FULL LEVELING (35) - HYDRAULIC SYSTEMS

1

633083R1

CLAMP, rear leveling cylinder anchor inner

2шт.

7/16 X 1 MACH BOLT

14шт.

7/16 NUT

8шт.

7/16 LOCK WASHER

14шт.

2

633084R1

CLAMP, rear leveling cylinder anchor outer

2шт.

7/16 X 1 MACH BOLT

6шт.

3

633312R91

CYLINDER ASSY, rear leveling, For details see list of parts under rear leveling cylinder

2шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

5

633085R91

YOKE W/SHAFT, rear leveling cylinder

2шт.

3/8 X 2-3/4 ROLL PIN

4шт.

6

633089R1

COLLAR, rear leveling cylinder yoke shaft

1шт.

7

633090R1

WASHER

rear leveling cylinder

1шт.

8

633055R1

BUSHING

4шт.

9

633048R91

SUPPORT W/BUSHING ASSY, rear leveling cylinder pivot, Includes ref no. 8

4шт.

5/8 X 1-1/2 MACH BOLT W/NUT

4шт.

5/8 X 1-3/4 MACH BOLT W/NUT

1шт.

5/8 LOCK WASHER

6шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

11

633060R1

CLAMP, rear leveling cylinder lower anchor

2шт.

12

634624R1

ANCHOR, rear leveling cylinder lower, LH

1шт.

12

634625R1

ANCHOR, rear leveling cylinder lower, RH

1шт.

1/2 X 1-1/2 MACH BOLT W/NUT

8шт.

1/2 LOCK WASHER

8шт.

13

633080R91

PIN W/LOCK, rear leveling cylinder lower

1шт.

1/4 X 2-1/2 COT. PIN

2шт.

1-9/32 X 2 X 16 GA WASHER

4шт.
