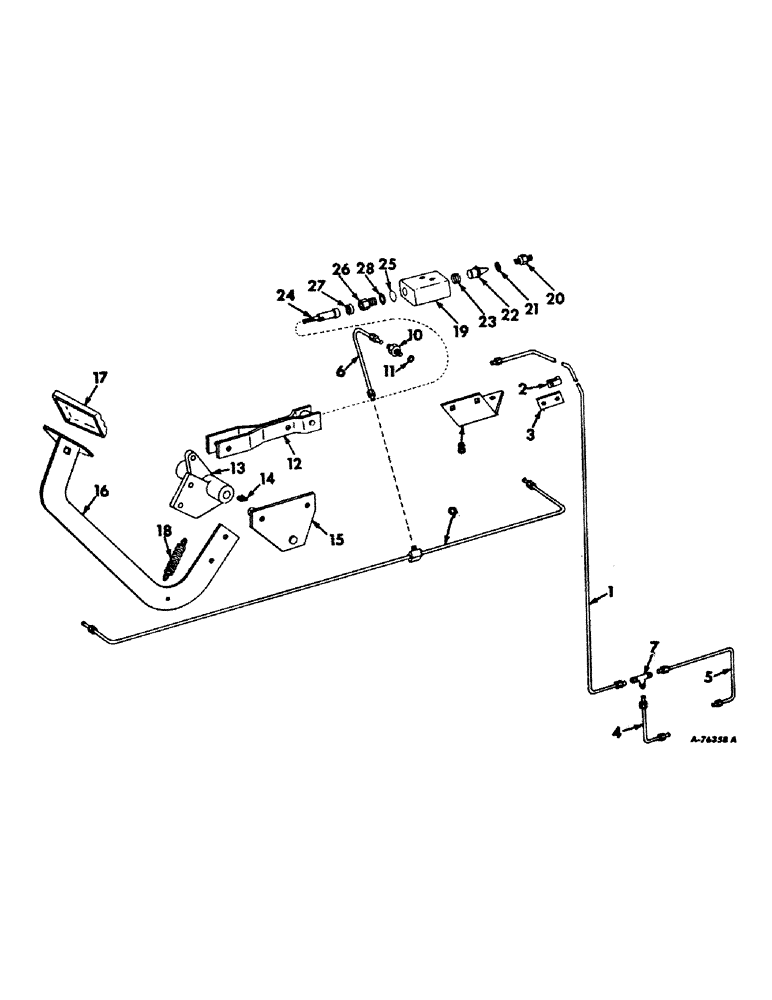

Запчасти Case IH 403 (163) - FOOT-N-INCH CONTROL PEDAL AND VALVE (35) - HYDRAULIC SYSTEMS

1

167949C1

TUBE ASSY, foot-n-inch valve upper

1шт.

2

573674R1

CLIP

hydraulic tube

2шт.

3

634109R1

STRIP, hydraulic tube clip

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

4

165626R92

TUBE ASSY, foot-n-inch valve lower front

1шт.

5

164407C92

TUBE

ASSY, foot-n-inch valve lower rear

1шт.

6

164408C91

TUBE ASSY, foot-n-inch valve return

1шт.

7

9402979

TEE,7/16"-20, 37 Degree

7/16-20 three way 37 deg hyd tube

1шт.

8

164369C1

SUPPORT, foot-n-inch valve

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

164409C91

TUBE ASSY, steering return

1шт.

120368

NUT,5/16"-24, G5

5/16 C-Z hex-jam

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

164419C1

CONNECTOR, 1/2-20 and 9/16-18 37 deg hyd tube

1шт.

11

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, For 5/16 OD tube

1шт.

12

164404C91

YOKE ASSY, foot-n-inch valve front

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

13

938870R1

PIVOT, foot-n-inch pedal

1шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

15

627463R91

PIN ASSY, foot-n-inch pedal pivot

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

2шт.

16

939636R91

LEVER ASSY, foot-n-inch pedal

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

863426R1

PAD

foot-n-inch pedal rubber

1шт.

18

52635R1

SPRING

foot-n-inch pedal lever return

1шт.

19

398706R1

BODY, valve

1шт.

20

398709R1

SEAT

poppet valve

1шт.

21

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Valve seat

1шт.

22

398710R1

VALVE POPPET

VALVE, poppet

1шт.

23

403434R1

SPRING

valve

1шт.

24

398708R1

STOP

. valve

1шт.

25

401293R91

PACKAGE

relief valve shims

1шт.

26

398707R11

GUIDE

ASSY, valve spring stop, Includes ref no. 29

1шт.

27

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.

28

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

For 5/8 OD tube

1шт.

403347R91

LOCK VALVE

VALVE ASSY, foot-n-inch pilot relief, Includes ref. nos. 19 thru 28

1шт.
