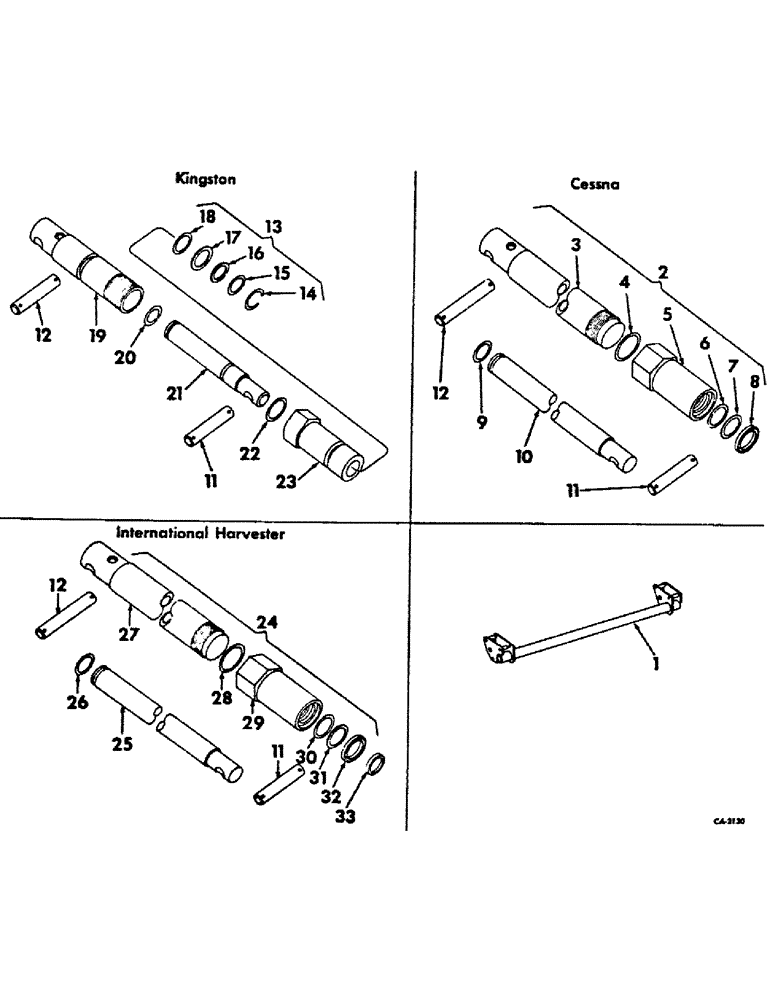

Запчасти Case IH 403 (161) - PLATFORM HYDRAULIC LIFT CYLINDER AND EXTENSION (35) - HYDRAULIC SYSTEMS

1

571029R91

LIFT W/SPACER, platform

1шт.

2

570799R91

CYLINDER ASSY, platform hydraulic lift, Includes ref. nos. 3 through 10, Optional to use cylinder assy 570801R92 and 383762R91

2шт.

3

570800R91

BARREL, platform hydraulic lift cylinder, For use with cylinder assy 570799R91

1шт.

4

843797R1

SCRAPER RING

O-RING, platform hydraulic lift cylinder front end bearing rear

2шт.

5

559916R1

BEARING, platform hydraulic cylinder front end

2шт.

6

558636R1

O-RING

platform hydraulic lift cylinder front end bearing front

2шт.

7

558632R1

WASHER

platform hydraulic lift cylinder plunger back-up

2шт.

8

559922R91

SEAL

OIL SEAL, platform hydraulic lift cylinder front end bearing

2шт.

9

559918R1

RING, SNAP

RING, platform hydraulic lift cylinder retainer

2шт.

10

569336R1

PISTON, platform hydraulic lift cylinder front end, For use with cylinder assy 570799R91

2шт.

11

571181R1

PIN, platform lift cylinder, side leveling 4, full leveling 2

1шт.

3/16 X 1-3/4 COTTER PIN

8шт.

12

573762R1

PIN,25.4mm OD x 130.97mm L

platform lift cylinder rear, full leveling

2шт.

3/16 X 1-3/4 COTTER PIN

4шт.

13

570801R92

CYLINDER ASSY, platform hydraulic lift, Includes ref. nos. 14 through 23, Optional for cylinder assy 570799R91 and 383762R91

2шт.

14

558631R1

SNAP RING, platform hydraulic lift cylinder piston

2шт.

15

558638R1

WASHER

platform hydraulic lift cylinder piston retaining

2шт.

16

558637R1

WASHER, platform hydraulic lift cylinder front bearing felt

2шт.

17

558632R1

WASHER

platform hydraulic lift cylinder piston backup

2шт.

18

558636R1

O-RING

platform hydraulic lift cylinder front bearing front

2шт.

19

570802R91

BARREL ASSY, platform hydraulic lift cylinder, For use with cylinder assy 570801R92

2шт.

20

558639R1

SNAP RING, platform hydraulic lift cylinder piston

2шт.

21

570550R91

PISTON ASSY, platfrom hydraulic lift cylinder, For use with cylinder assy 570801R92

2шт.

22

843797R1

SCRAPER RING

O-RING, platform hydraulic lift cylinder front bearing rear

2шт.

23

570551R92

BEARING ASSY, cylinder front, Includes ref. nos. 14, 15, 16, 17 and 18

2шт.

24

383762R92

CYLINDER ASSY, platform hydraulic lift, Includes ref. nos. 25 thru 33

2шт.

25

383780R1

ROD, piston, For use with 383762R1 cylinder

2шт.

26

378752R1

RING, PISTON

STOP RING, piston rod, For use with 383762R91 cylinder

2шт.

27

383775R11

TUBE W/HEAD ASSY, cylinder, For use with 383762R91 cylinder 17.87" Length

2шт.

28

366581R1

O-RING,2.612" ID x 0.103" Width

2-5/8 x 2-13/16 x 3/32, For use with 383762R91 cylinder

2шт.

29

383778R11

HEAD

ASSY, rod end, Includes ref. nos. 32 and 33, For use with 383762R91 cylinder

2шт.

30

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16, For use with 383762R91 cylinder

2шт.

31

378726R1

BACK-UP RING

piston rod back-up, For use with 383762R91 cylinder

2шт.

32

383783R1

SEAL

SEAL, piston rod dust, For use with 383762R91 cylinder

2шт.

33

383779R1

RETAINER

piston rod seal, For use with 383692R91 cylinder

2шт.

386692R92

KIT ASSY, hydraulic cylinder, Consists of

1шт.

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16

1шт.

378726R1

BACK-UP RING

piston rod back-up

1шт.

383783R1

SEAL

SEAL, piston rod dust

1шт.

383779R1

RETAINER

piston rod dust seal

1шт.

366581R1

O-RING,2.612" ID x 0.103" Width

2-5/8 x 2-13/16 x 3/32

1шт.
