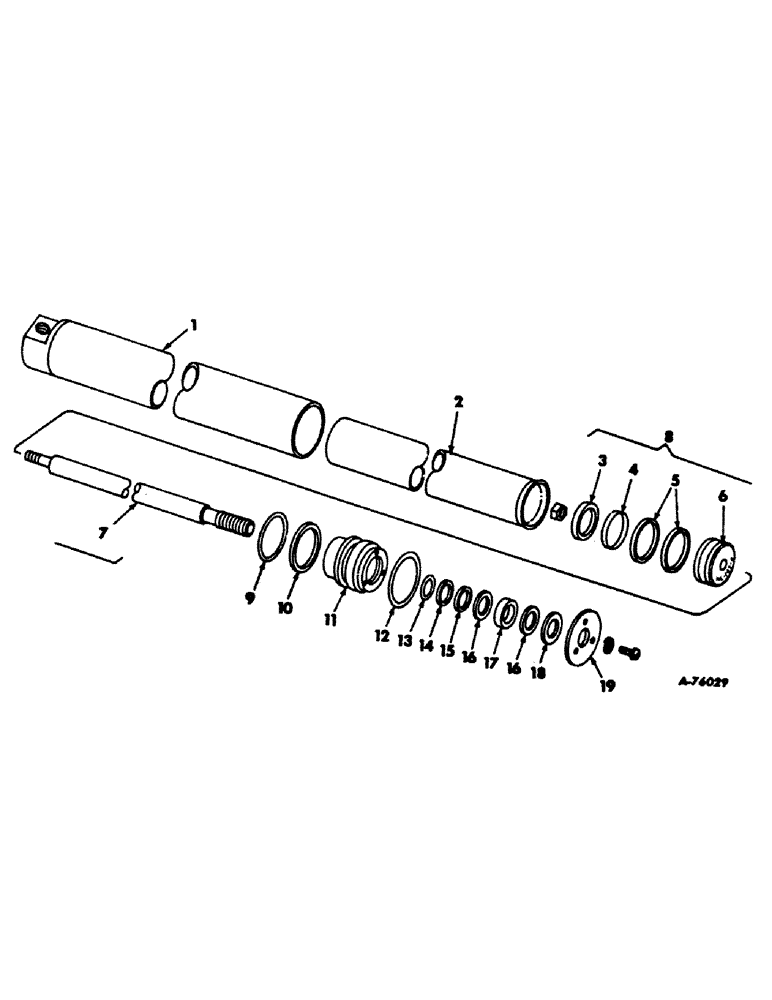

Запчасти Case IH 403 (160) - HYDRAULIC STEERING CYLINDER (35) - HYDRAULIC SYSTEMS

633309R91

CYLINDER AND VALVE ASSY, power steering

1шт.

1

BARREL, cylinder, order 633309R91 cylinder and valve assy

1шт.

2

935758R91

PIPE, inner cylinder

1шт.

3

935764R1

RING

seal

1шт.

4

935760R1

RING

SHIM, piston

1шт.

5

562285R1

RING

piston

2шт.

3/8-24UNF NUT

1шт.

6

PISTON, order 935762R91 piston and rod assy, ref no. 8

1шт.

7

168047C1

ROD

piston

1шт.

8

935762R91

PISTON ASSY.

PISTON AND ROD ASSY, Includes ref nos 3 through 7

1шт.

9

310939R1

O-RING

1шт.

10

935783R1

RING

back up

1шт.

11

871268R1

GLAND, cylinder

1шт.

12

935782R1

RING

lock

1шт.

13

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

14

574068R1

SPACER

RING, backup

1шт.

15

574067R1

RING

retaining

1шт.

16

574066R1

RING

retaining

2шт.

17

566103R91

OIL RESERVOIR

OIL SEAL

1шт.

18

303322R1

SNAP RING,1.00", Int, #100

1шт.

19

935761R1

FLANGE, end plate

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

NO. 10 X 1/2 SLT-RD-HD MACH SCREW

3шт.

NO. 10 LOCK WASHER

3шт.
