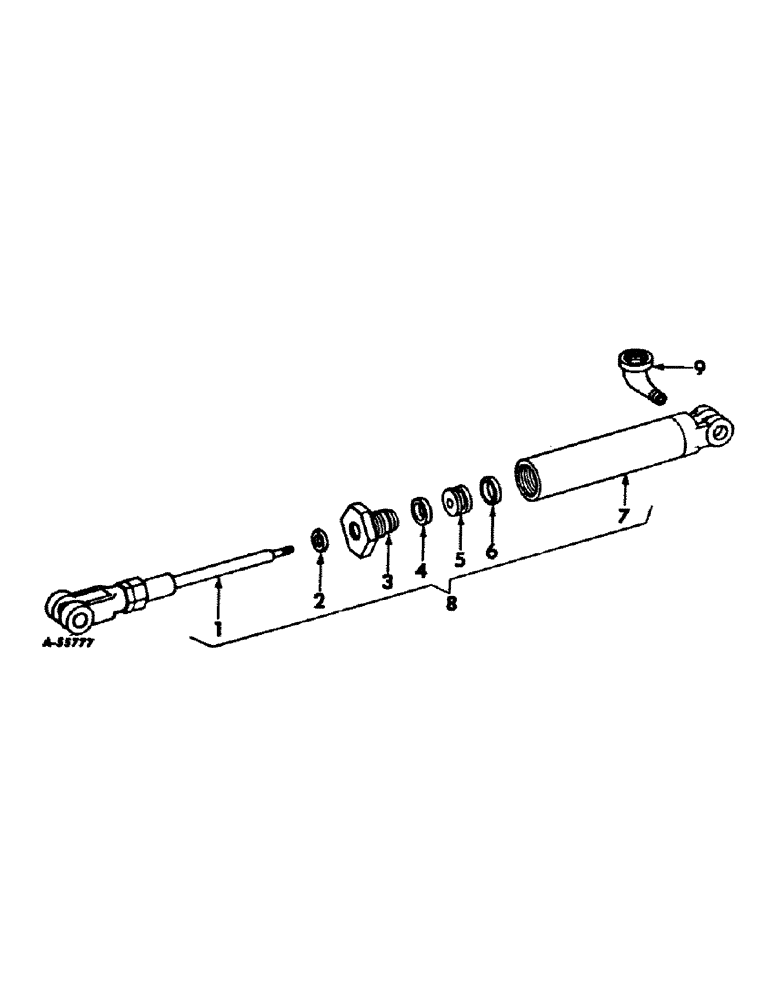

Запчасти Case IH 403 (159) - HYDRAULIC PROPULSION CONTROL CYLINDER (35) - HYDRAULIC SYSTEMS

1

574781R91

ROD ASSY, piston

1шт.

5/16 JAM NUT

1шт.

5/16 X 1-1/4 COTTER PIN

2шт.

5/8 X 1-3/4 DLD PIN

2шт.

5/16 LOCK WASHER

1шт.

2

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

piston rod

1шт.

3

574779R1

BEARING

1шт.

4

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

bearing

1шт.

5

PISTON, Not serviced separately order cylinder assy 154132C91

1шт.

6

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

piston

1шт.

7

BARREL, Not serviced separately order cylinder assy 154132C91

1шт.

8

154132R91

CYLINDER ASSY, hydraulic propulsion control

1шт.

9

105422

ELBOW UNION

ELBOW

1шт.
